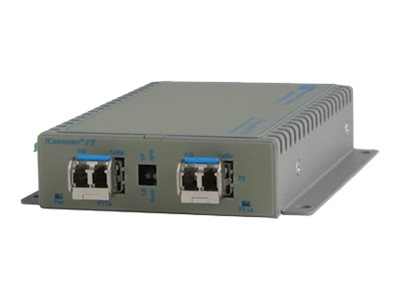

Omnitron Systems - Omnitron iConverter xFF
Media converter - GigE, SONET/SDH, Fibre Channel - 1000Base-X, 100Base-X - SFP (mini-GBIC) / SFP (mini-GBIC) - OC-48 /OC-12 /OC-3 / STM-16 / STM-4/ STM-1
Omnitron Systems
8699-0-D
N/A
0800975023260
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Omnitron iConverter xFF - media converter - 10Mb LAN, 100Mb LAN, GigE, SONET/SDH, Fibre Channel |
| Device Type | Media converter - SFP (mini-GBIC) / SFP (mini-GBIC) |
| Form Factor | External |
| Localization | United States |
| Cabling Type | 1000Base-X, 100Base-X |
| Data Transfer Rate | 4.25 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, SONET/SDH, Fibre Channel |
| Remote Management Protocol | SNMP, Telnet |
| Power | AC 120 V |
| Dimensions (WxDxH) | 3.8 in x 4.8 in x 1 in |
| Weight | 16.01 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Media converter |
| Form Factor | External |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 2 x network - SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 250,000 hours |
| Compliant Standards | FCC Class A certified, UL |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-X, 100Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, SONET/SDH, Fibre Channel |
| Data Transfer Rate | 4.25 Gbps |
| Line Rate | OC-48 /OC-12 /OC-3 / STM-16 / STM-4/ STM-1 |
| Remote Management Protocol | SNMP, Telnet |
| Status Indicators | Power, link/activity |
| Features | CWDM, wall mountable, Digital Diagnostics Monitoring Interface (DDMI) |
| Compliant Standards | IEEE 802.3 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120 V (60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.8 in |
| Depth | 4.8 in |
| Height | 1 in |
| Weight | 16.01 oz |
