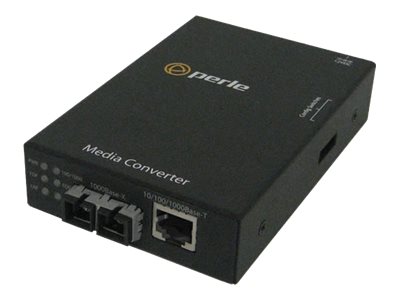

Perle - Perle S-1110-M2SC05
Fiber media converter - 1GbE - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SC multi-mode - up to 1800 ft - 850 nm
Perle
05050604
N/A
0734660506045
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Perle S-1110-M2SC05 - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | Fiber media converter - RJ-45 / SC multi-mode |
| Form Factor | External |
| Localization | United States |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 1800 ft |
| Dimensions (WxDxH) | 3.1 in x 4.7 in x 1 in |
| Weight | 10.58 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - SC multi-mode female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, IEC 60825-1 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| MAC Address Table Size | 1K entries |
| Max Transfer Distance | 1800 ft |
| Status Indicators | Power, receive, link/activity |
| Features | Auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), MAC address filtering, Far End Fault (FEF) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3xy |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 2.1 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% |
| Dimensions & Weight | |
| Width | 3.1 in |
| Depth | 4.7 in |
| Height | 1 in |
| Weight | 10.58 oz |
