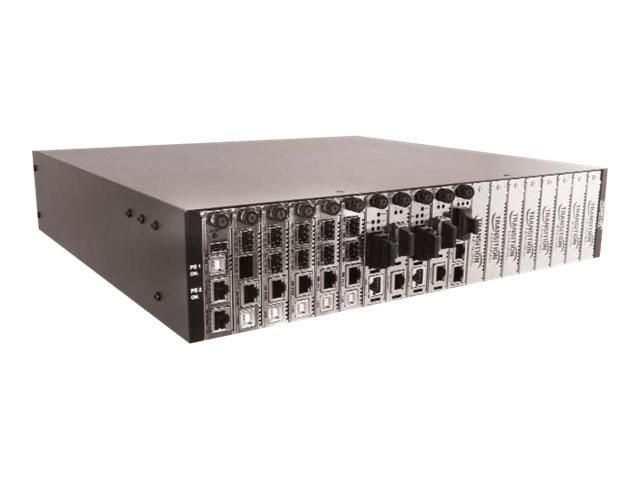

Transition Networks - Transition Networks 19-Slot Chassis for The ION Platform
Modular expansion base
Transition Networks
ION219-A-NA
N/A
0648177029129
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Transition Networks 19-Slot Chassis for The ION Platform - modular expansion base |
| Device Type | Modular expansion base |
| Form Factor | External |
| Localization | North America |
| Power | AC 120/230 V / DC 48 V |
| Dimensions (WxDxH) | 16.9 in x 15.8 in x 3.5 in |
| Weight | 18.96 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Modular expansion base |
| Installed Modules Qty (Max) | 1 (19) |
| Width | 16.9 in |
| Depth | 15.8 in |
| Height | 3.5 in |
| Weight | 18.96 lbs |
| Localization | North America |
| Expansion / Connectivity | |
| Expansion Slots | 19 (total) / 19 (free) x expansion slot |
| Interfaces | 2 x 100Base-TX (management) ¦ 1 x USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, EN55022, EN55024, CISPR |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Features | VLAN support, Syslog support, Trivial File Transfer Protocol (TFTP) support |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V / DC 48 V |
| Power Provided | 200 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
