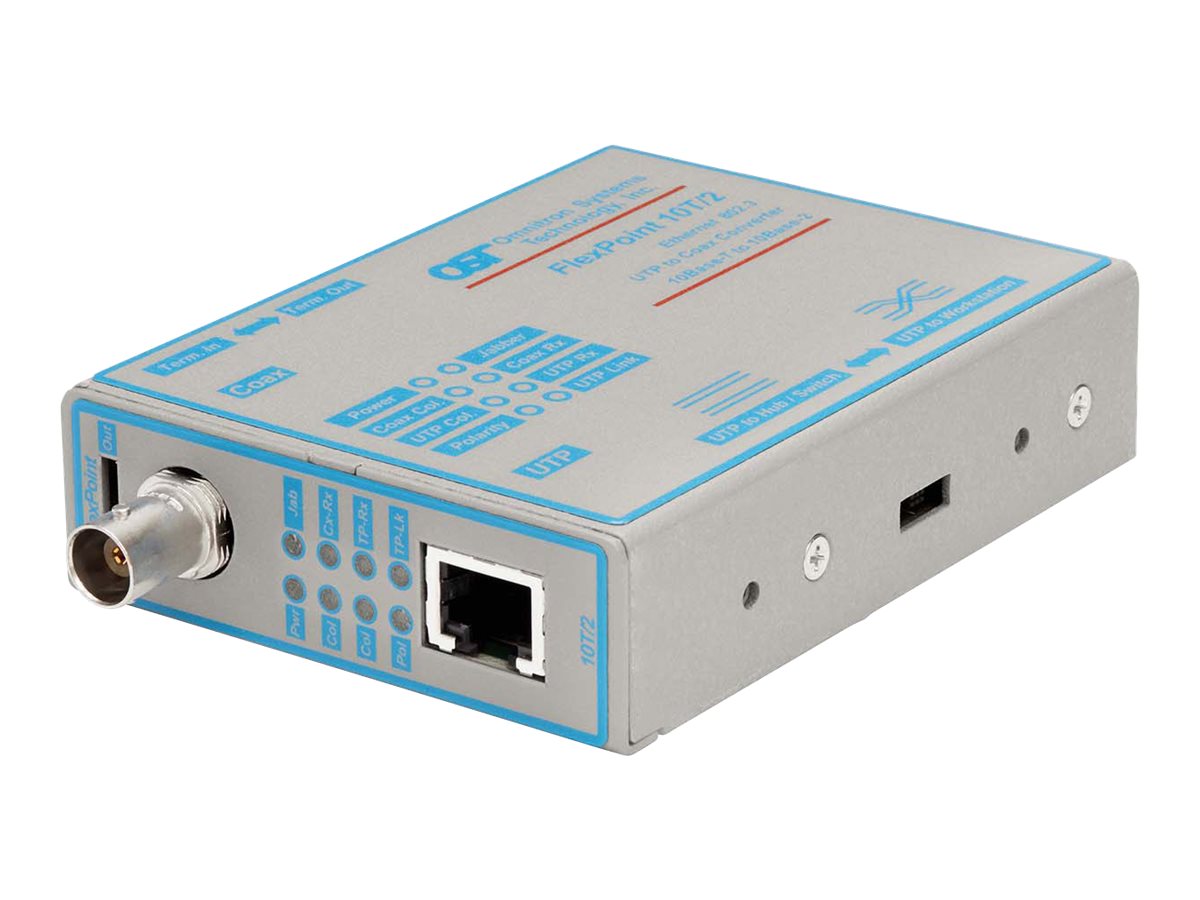

Omnitron Systems - Omnitron FlexPoint 10T/2
Media converter - 10Mb LAN - 10Base-T, 10Base-2 (coax) - RJ-45 / BNC - up to 607 ft
Omnitron Systems
4320-0-W
N/A
0800975026391
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Omnitron FlexPoint 10T/2 - media converter - 10Mb LAN |
| Device Type | Media converter - RJ-45 / BNC |
| Form Factor | External |
| Cabling Type | 10Base-T, 10Base-2 (coax) |
| Data Transfer Rate | 10 Mbps |
| Data Link Protocol | 10Mb LAN |
| Max Transfer Distance | 607 ft |
| Dimensions (WxDxH) | 3 in x 4 in x 1 in |
| Weight | 6 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T - RJ-45 female ¦ 1 x Ethernet 10Base-2 - BNC female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| MTBF | 100,000 hours |
| Compliant Standards | FCC Class A certified, UL |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 10Base-2 (coax) |
| Data Link Protocol | 10Mb LAN |
| Data Transfer Rate | 10 Mbps |
| Max Transfer Distance | 607 ft |
| Status Indicators | Collision status, power, polarity, receive, link/activity |
| Features | Half duplex mode |
| Compliant Standards | IEEE 802.3 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 4 in |
| Height | 1 in |
| Weight | 6 oz |
