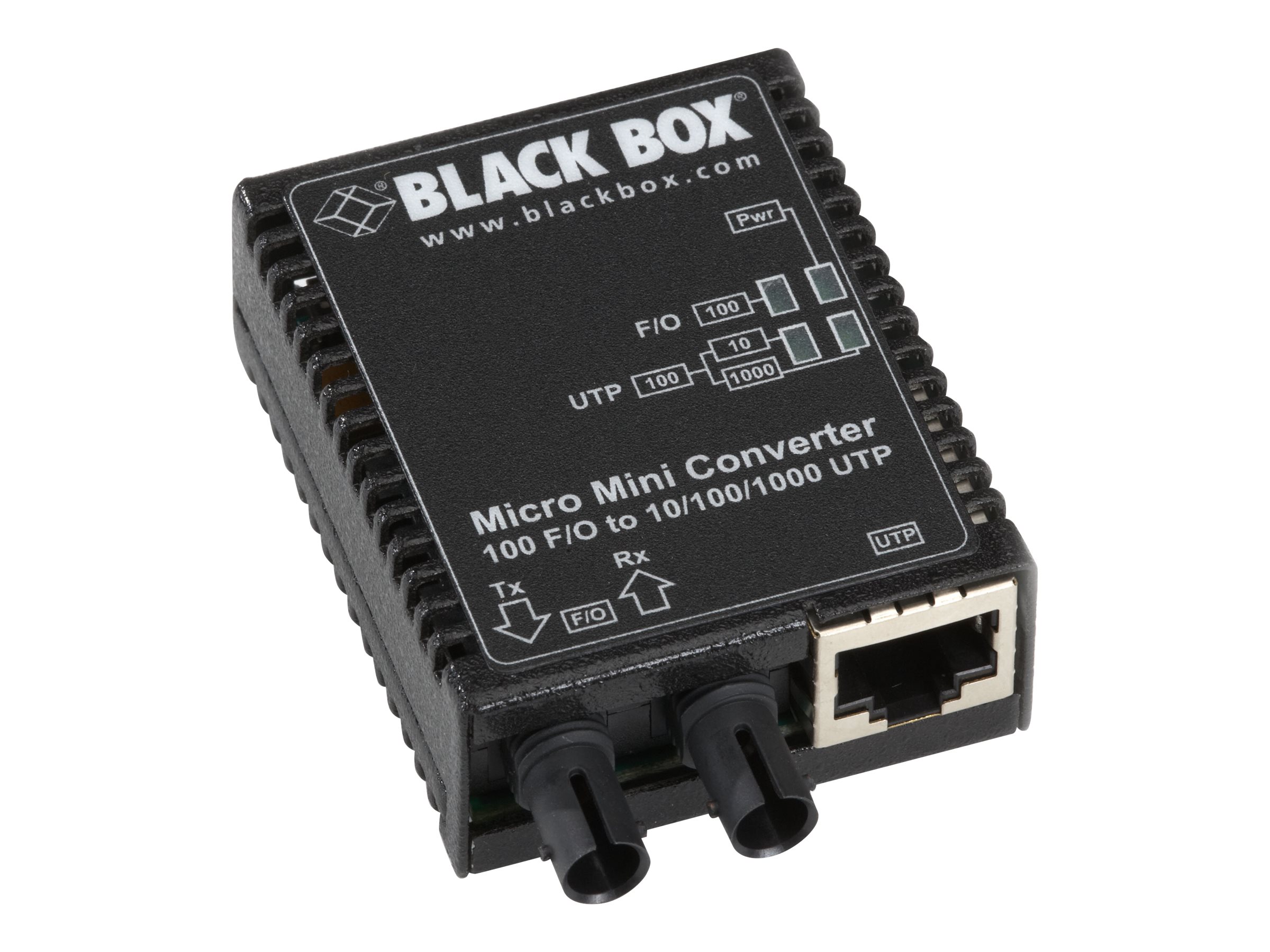

Black Box - Black Box Micro Mini Media Converter
Fiber media converter - GigE - 10Base-T, 100Base-FX, 100Base-TX, 1000Base-T - RJ-45 / ST multi-mode - up to 3.1 miles - 1310 nm - TAA Compliant
Black Box
LMC401A
N/A
0822088109518
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Black Box Micro Mini Media Converter - fiber media converter - 10Mb LAN, 100Mb LAN, GigE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / ST multi-mode |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX, 1000Base-T |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Max Transfer Distance | 3.1 miles |
| Power | AC 120 V |
| Dimensions (WxDxH) | 1.7 in x 2.2 in x 0.8 in |
| Weight | 2.5 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 100Base-FX - ST multi-mode female x 2 ¦ 1 x USB - Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 3.1 miles |
| Status Indicators | Power, link/activity |
| Features | Auto-negotiation, USB powered, Jumbo Frames support |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 2.2 in |
| Height | 0.8 in |
| Weight | 2.5 oz |
