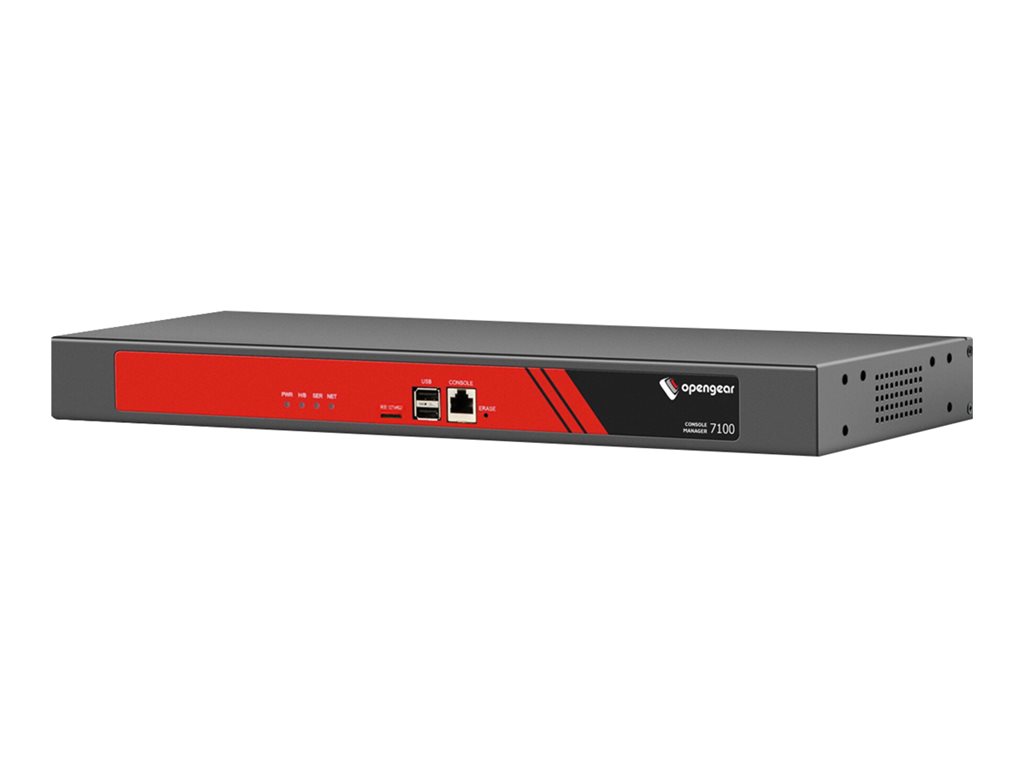

Opengear - Opengear CM7148-2-DAC
Console server - 48 ports - 1GbE, RS-232 - 1U
Opengear
CM7148-2-DAC-UK
N/A
0843295100815
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Opengear CM7148-2-DAC - console server |
| Device Type | Console server |
| Form Factor | External - 1U |
| Localization | United Kingdom |
| Processor | 1 x Marvell 88F6W11 800 MHz |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Ports Qty | 48 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Performance | Firewall throughput: 700 Mbps ¦ VPN throughput: 140 Mbps |
| Included Accessories | Rack mount kit |
| Power | AC 120/230 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 6.9 in x 1.8 in |
| Weight | 8.82 lbs |
| Manufacturer Warranty | 4-year warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 17.3 in |
| Depth | 6.9 in |
| Height | 1.8 in |
| Weight | 8.82 lbs |
| Localization | United Kingdom |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 48 x RS-232 - RJ-45 ¦ 2 x USB 2.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 4 years |
| Miscellaneous | |
| Included Accessories | Rack mount kit |
| Cables Included | 2 x network cable ¦ 2 x serial adapter |
| Compliant Standards | TUV, C-Tick, ICES-003, UL 1950, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, FIPS 140-2, FCC Part 15 B Class A, EN 55024-2:1998+A1:2001+A2:2003, EN 61000-4-2:2009, AS/NZS CISPR22:2004 Class A, EN55022:1998 + A1:2000 + A2:2003 Class A |
| Networking | |
| Form Factor | External |
| Ports Qty | 48 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 230.4 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Network / Transport Protocol | NTP, IPSec, FTP, DHCP, DDNS |
| Remote Management Protocol | SNMP, HTTPS, TFTP, SSH |
| Performance | Firewall throughput: 700 Mbps ¦ VPN throughput: 140 Mbps |
| Status Indicators | Power, link/activity |
| Features | VPN support, Syslog support, IPv6 support, IP address filtering, event log, Trivial File Transfer Protocol (TFTP) support, SSH support, DHCP server, FTP server, port forwarding, Stateful Packet Inspection Firewall (SPIF), Zero Touch Auto Provisioning, 4KV ESD Protector, Cisco straight pinout |
| Encryption Algorithm | SSL, FIPS 140-2 |
| Authentication Method | Kerberos, RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 20 Watt |
| Software / System Requirements | |
| OS Provided | Linux |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Marvell 88F6W11 800 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 4 GB |
