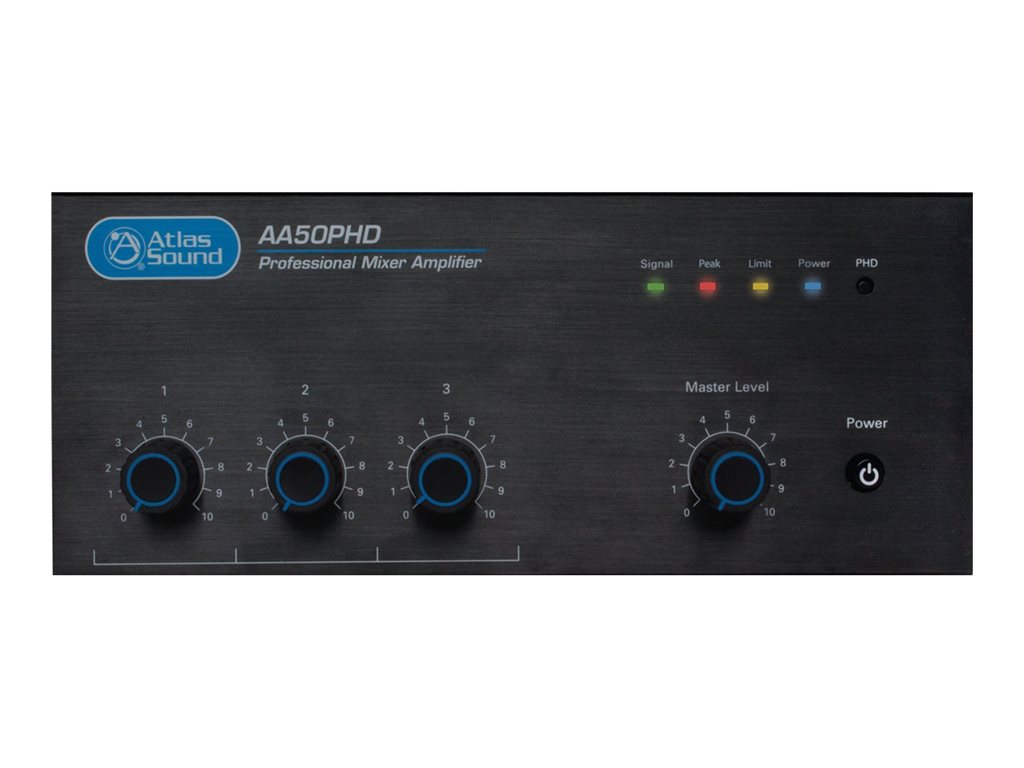

AtlasIED - Atlas Sound AA Series AA50PHD
Amplifier - black
AtlasIED
AA50PHD
N/A
0612079190843
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Atlas Sound AA Series AA50PHD - amplifier |
| Product Type | Amplifier |
| Enclosure Color | Black |
| Audio Channels | Mono |
| Audio Specifications | Amplifier - 50 - 15000 Hz - 75 dB 0.5% |
| Power | AC 120 V (60 Hz) |
| Dimensions (WxDxH) | 8.3 in x 10.9 in x 3.7 in |
| Weight | 10.01 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Amplifier |
| Enclosure Color | Black |
| Enclosure Material | Steel |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Rack mounting kit |
| Power | |
| Voltage Required | AC 120 V (60 Hz) |
| Power Consumption Operational | 80 Watt |
| Idle Power | 8.3 Watt |
| Connections | |
| Connectors | 2 x audio line-in (RCA x 2) - rear ¦ Balanced audio input (Phoenix-type) - rear ¦ Speakers output (Phoenix-type) - rear ¦ Audio line-out (RCA x 2) - rear ¦ Audio line-in (mini-phone stereo 3.5 mm) - rear ¦ 2 x remote control - rear ¦ Audio output (multi zone) (Phoenix-type) - rear |
| Dimensions & Weight | |
| Width | 8.3 in |
| Depth | 10.9 in |
| Height | 3.7 in |
| Weight | 10.01 lbs |
| Audio System | |
| Audio Channels | Mono |
| Functions | Amplifier |
| Audio Specifications | Amplifier - Response Bandwidth - 50 - 15000 Hz - SNR - 75 dB - THD - 0.5% |
| Input Sensitivity | 316 mV |
| Amplifier Output Details | 50 Watt - 50 - 15000 kHz - THD 0.5% - 1 channels |
| Bass Control | Yes |
| Treble Control | Yes |
| Features | Gain control, built-in DIP switch, rack mountable, 25V/70V or 4 Ohm operation |
