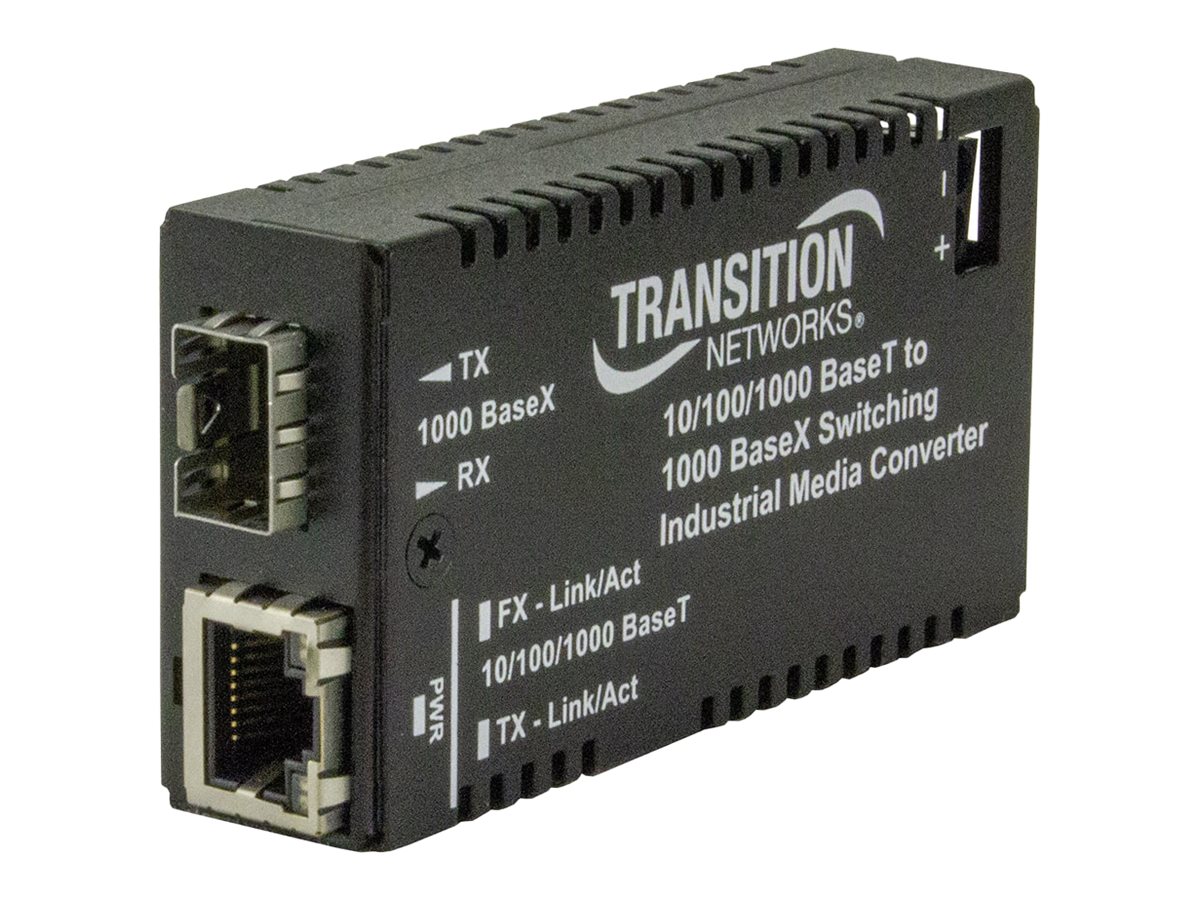

Transition Networks - Transition Networks Hardened Mini 10/100/1000 Bridging
Fiber media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X - RJ-45 / SFP (mini-GBIC)
Transition Networks
M/GE-ISW-SFP-01
N/A
0648177039906
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Transition Networks Hardened Mini 10/100/1000 Bridging - fiber media converter - 10Mb LAN, 100Mb LAN, GigE |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Dimensions (WxDxH) | 1.8 in x 3.3 in x 0.9 in |
| Weight | 6.35 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 100Base-X/1000Base-X - SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | DIN-rail mounting kit |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN55024, EN55022 Class A |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Power, link/activity |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, Jumbo Frames support, over-current protection, Link Pass-Through |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 1.2 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 3.3 in |
| Height | 0.9 in |
| Weight | 6.35 oz |
