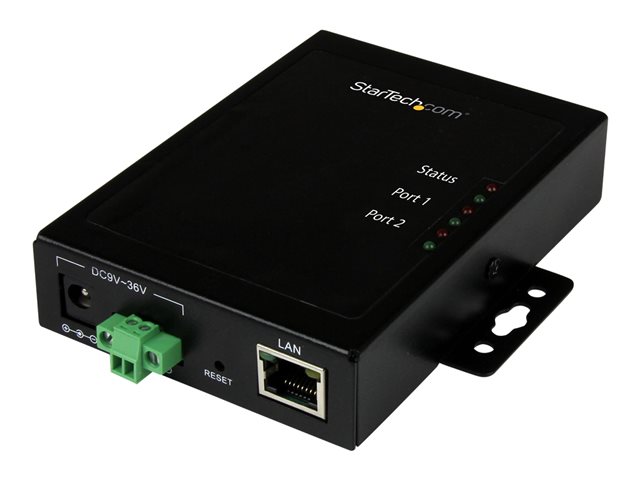

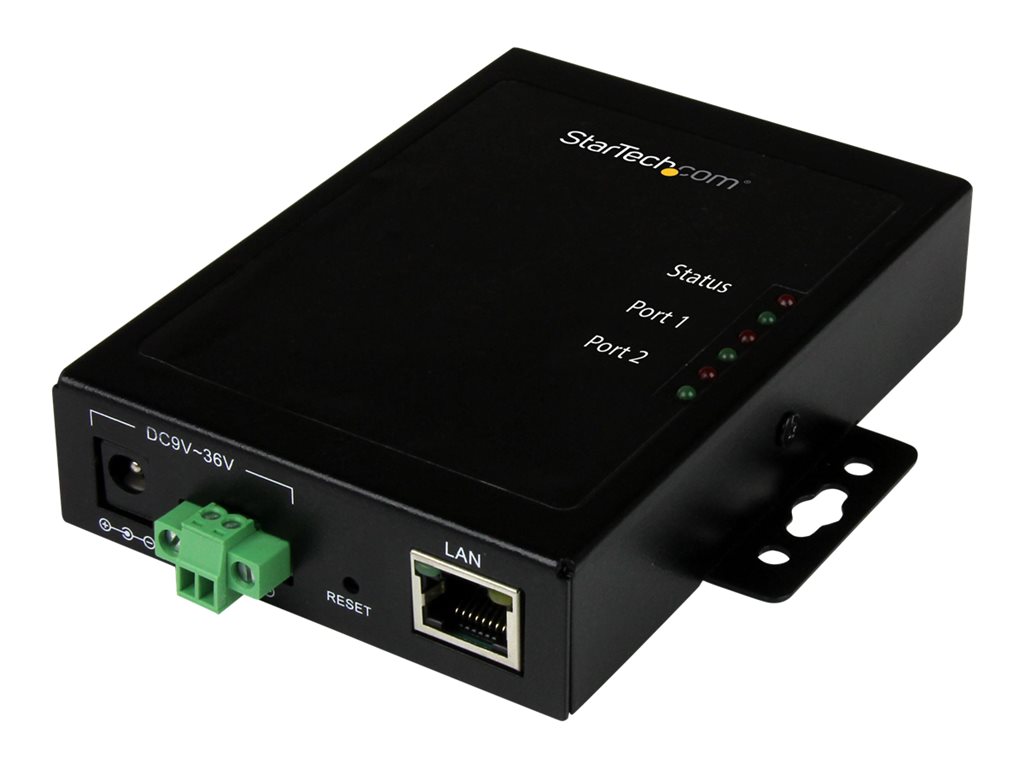

StarTech.com - StarTech.com 2 Port Serial-to-IP Ethernet Device Server
RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - Device server - 2 ports - 100Mb LAN, RS-232 - AC 120/230 V / DC 9 - 36 V - in wall
StarTech.com
NETRS2322P
N/A
0065030864145
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - device server |
| Device Type | Device server |
| Form Factor | In-wall mountable |
| Localization | North America, Europe, United Kingdom, Australia |
| Ports Qty | 2 |
| Data Link Protocol | Fast Ethernet, Ethernet, RS-232 |
| Included Accessories | Power terminal block |
| OS Required | Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS, Linux |
| Power | AC 120/230 V / DC 9 - 36 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 3.1 in x 4.4 in x 1 in |
| Weight | 10.93 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Device server |
| Width | 3.1 in |
| Depth | 4.4 in |
| Height | 1 in |
| Weight | 10.93 oz |
| Enclosure Color | Black |
| Localization | North America, Europe, United Kingdom, Australia |
| Expansion / Connectivity | |

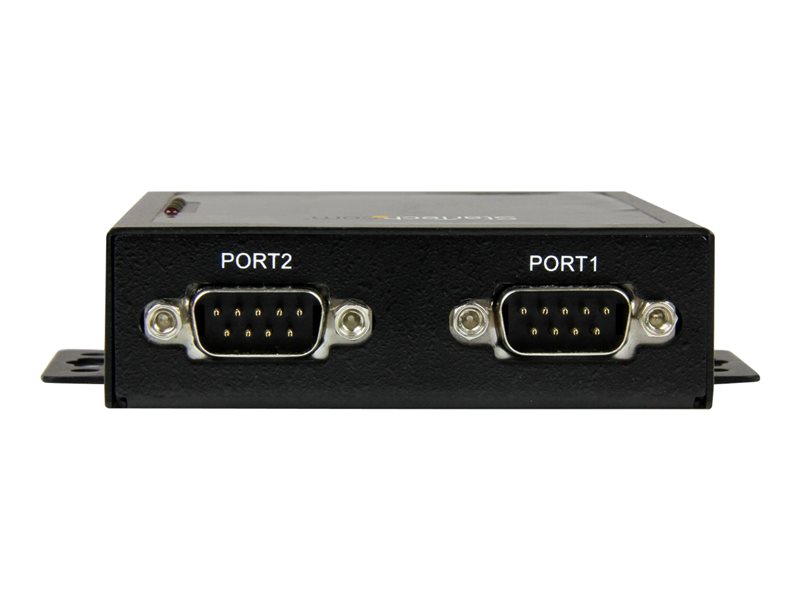

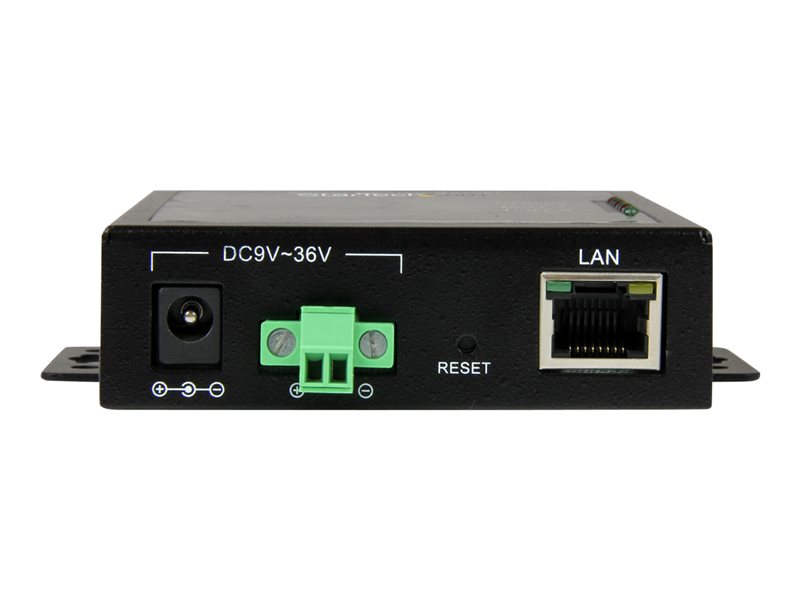

| Interfaces | 2 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Power terminal block |
| Compliant Standards | RoHS, WEEE, RCM, FCC |
| Networking | |
| Form Factor | In-wall mountable |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 460.8 Kbps |
| Data Link Protocol | Fast Ethernet, Ethernet, RS-232 |
| Network / Transport Protocol | ICMP/IP, TCP/IP, UDP/IP, DHCP, BOOTP |
| Remote Management Protocol | Telnet |
| Status Indicators | Status, LAN, link/activity |
| Features | 15 KV Electrostatic Discharge Protection, 8 KV Contact Electrostatic Discharge Protection, auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex capability, reset button |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Power | |
| Power Device | External power adapter |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V / DC 9 - 36 V |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, Virtual COM software (Windows only) |
| OS Required | Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 185 °F |
