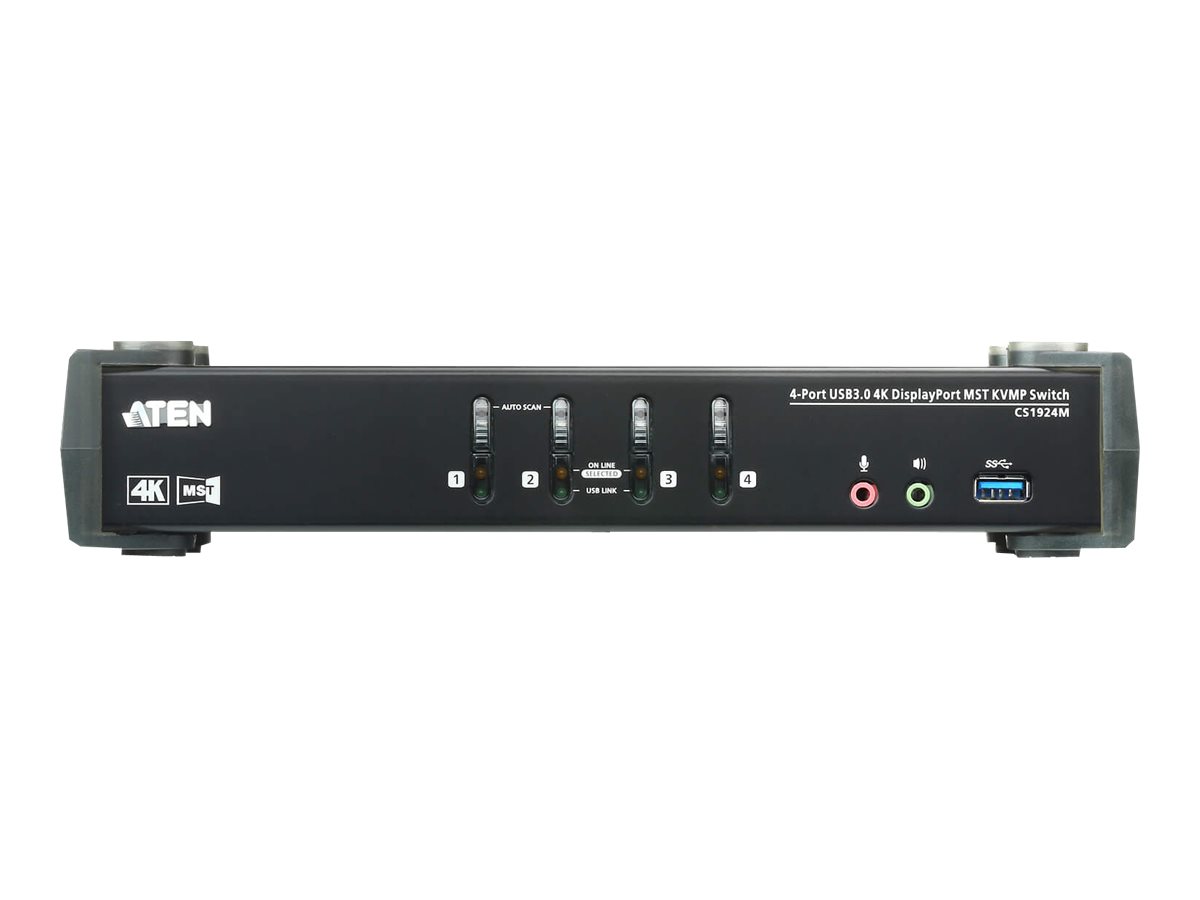

ATEN - ATEN CS1924M KVMP Switch
KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop
ATEN
CS1924M
N/A
0672792007750
N/A
New
Product Description
Additional Details

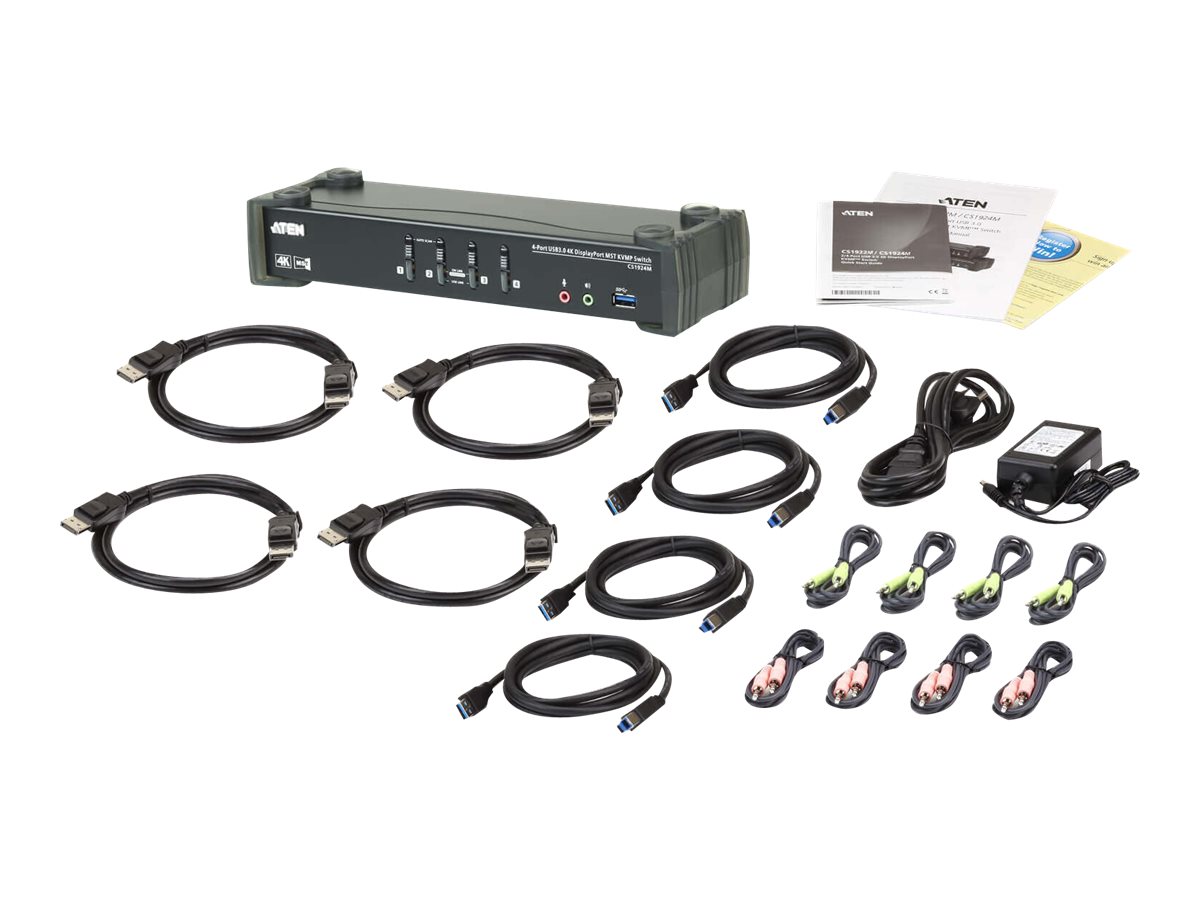

What's Included
| Main Specifications | |
|---|---|
| Product Description | ATEN CS1924M KVMP Switch - KVM / audio / USB switch - 4 ports |
| Device Type | KVM / audio / USB switch - 4 ports |
| Subtype | DisplayPort |
| Ports | 4 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Features | HDCP compliant, 4K resolution support, MST support |
| Compliant Standards | USB 3.1 Gen 1 |
| Dimensions (WxDxH) | 10.6 in x 3.5 in x 2.2 in |
| Weight | 32.45 oz |
| General | |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | DisplayPort |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | HDCP compliant, 4K resolution support, MST support |
| Compliant Standards | USB 3.1 Gen 1 |
| Built-in Devices | USB 3.1 Gen 1 hub |
| Status Indicators | Select, USB |
| Expansion / Connectivity | |

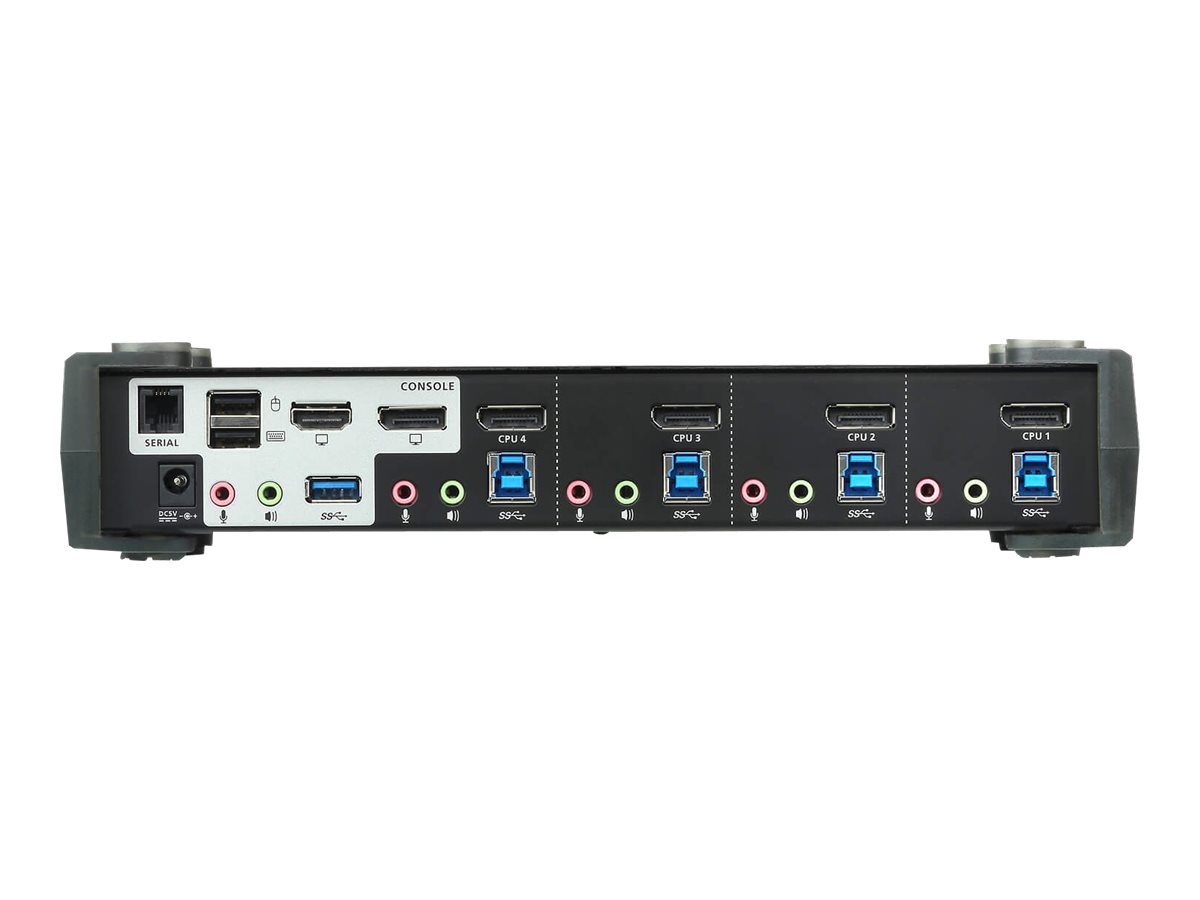

| Interfaces | 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ 4 x DisplayPort input ¦ 1 x DisplayPort output ¦ 1 x HDMI output Type A ¦ 1 x microphone output mini-jack ¦ 1 x headphones mini-jack ¦ 4 x headphones input mini-jack ¦ 4 x USB 3.1 Gen 1 Type B ¦ 1 x USB 3.1 Gen 1 Type A ¦ 1 x headphones mini-jack ¦ 1 x microphone mini-jack ¦ 4 x microphone input mini-jack ¦ 1 x RJ-11 |
| Miscellaneous | |
| Compliant Standards | DisplayPort 1.2 |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 10.6 in |
| Depth | 3.5 in |
| Height | 2.2 in |
| Weight | 32.45 oz |
