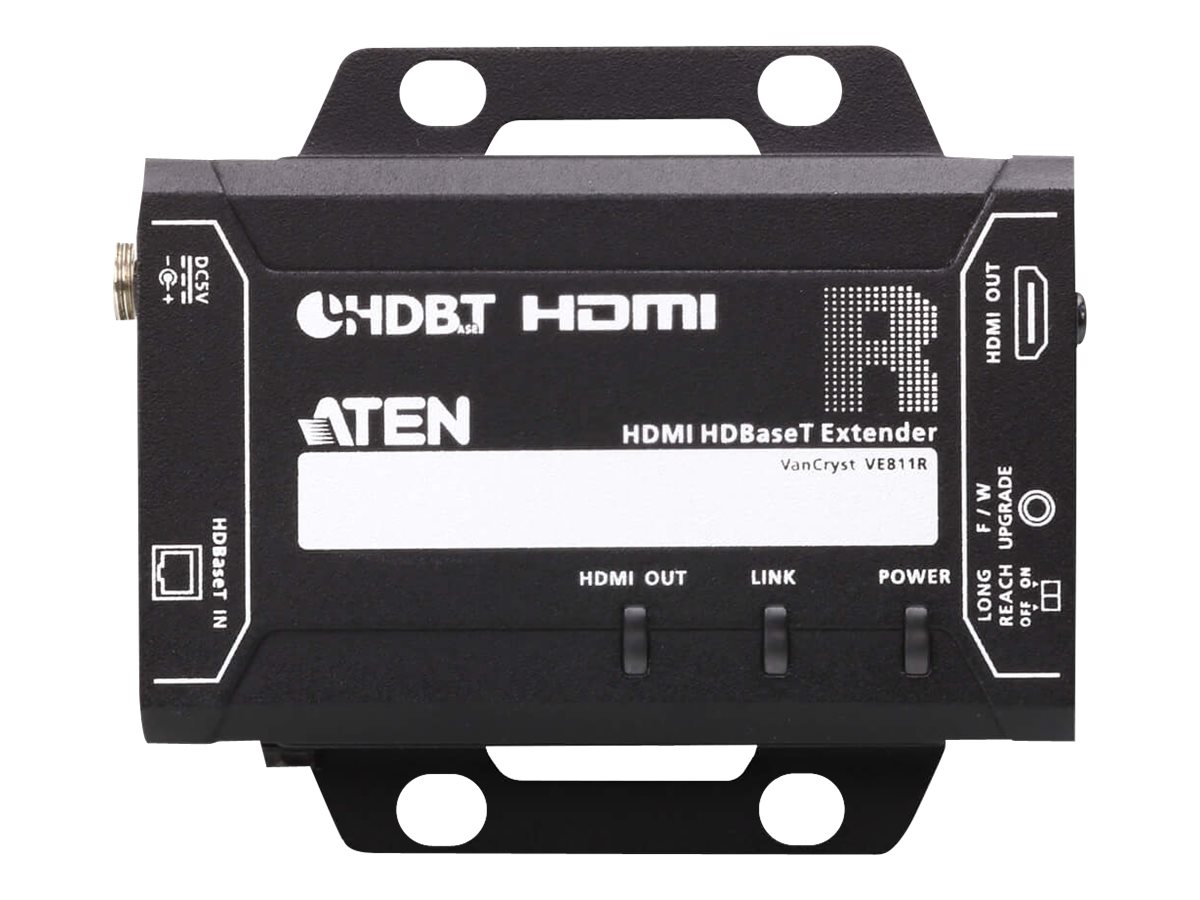

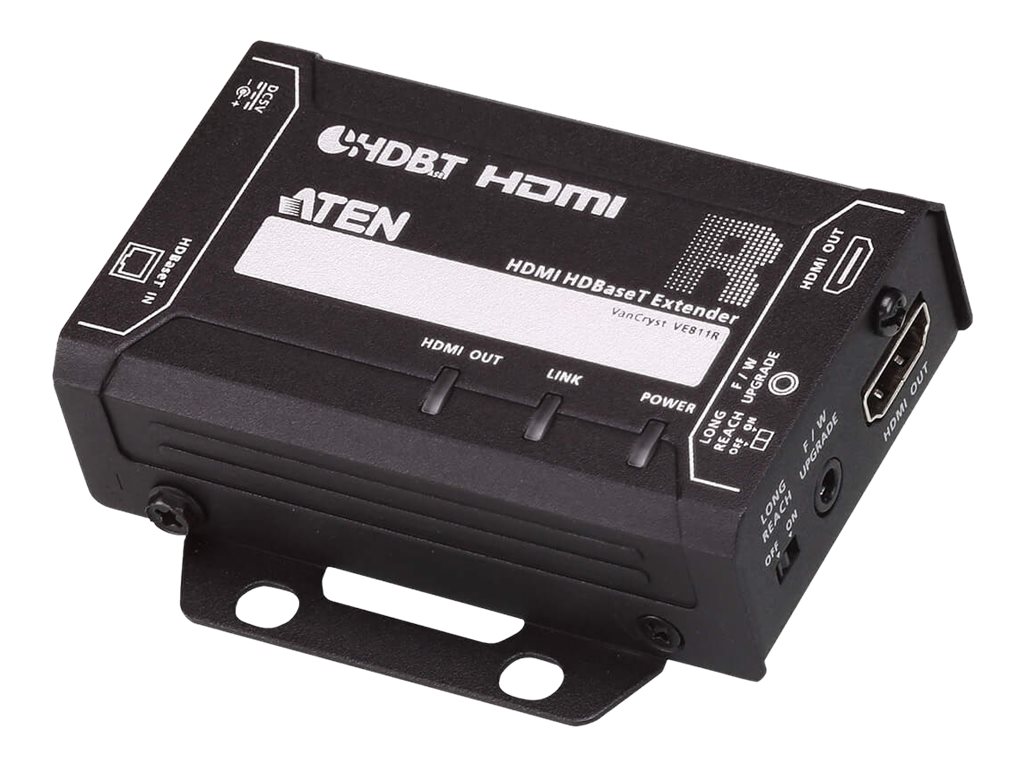

ATEN - ATEN VanCryst VE811 HDMI HDBaseT Extender
Transmitter and receiver - video/audio extender - HDBaseT - up to 492 ft - for ATEN VM5404, VM5808; VanCryst VM0808, VM1600, VM3200, VM5404, VM6809, VS0801, VS182
ATEN
VE811
N/A
0881317517463
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | ATEN VanCryst VE811 HDMI HDBaseT Extender - transmitter and receiver - video/audio extender - HDBaseT |
| Device Type | Video/audio extender |
| Form Factor | Rack-mountable |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDBaseT |
| Max Transfer Distance | 492 ft |
| Designed For | ATEN VM5404HA, VM5808HA; VanCryst VM0808HA, VM1600A, VM3200, VM5404H, VM6809H, VS0801H, VS182B |
| General | |
| Device Type | Video/audio extender |
| Form Factor | Rack-mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (local unit) - Type A female ¦ 1 x firmware upgrade - mini jack female |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 4096 x 2160 |
| Max Video Bandwidth | 340 MHz |
| Max Transfer Distance | 492 ft |
| Features | 3D support, HDCP compliant, metal housing, 4K resolution support, 8KV/15KV ESD Protector, Dolby TrueHD support, DTS-HD Master Audio support, CEC passthrough, firmware upgradable, HDBaseT Long Reach Mode, 2K resolution support |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Power Consumption Operational | 3.77 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Compatibility Information | |
| Designed For | ATEN VM5404HA, VM5808HA ¦ ATEN VanCryst VM0808HA, VM1600A, VM3200, VM5404H, VM6809H, VS0801H, VS182B |
