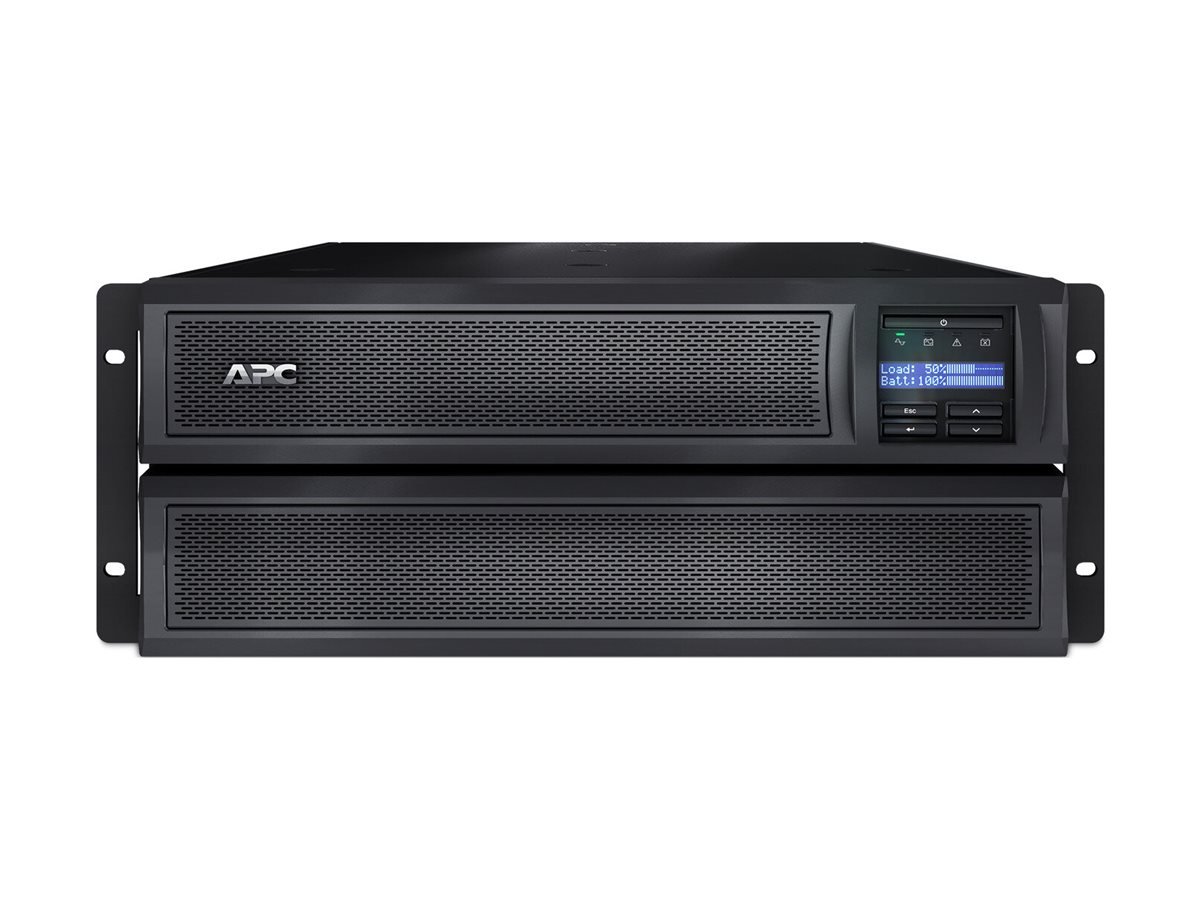

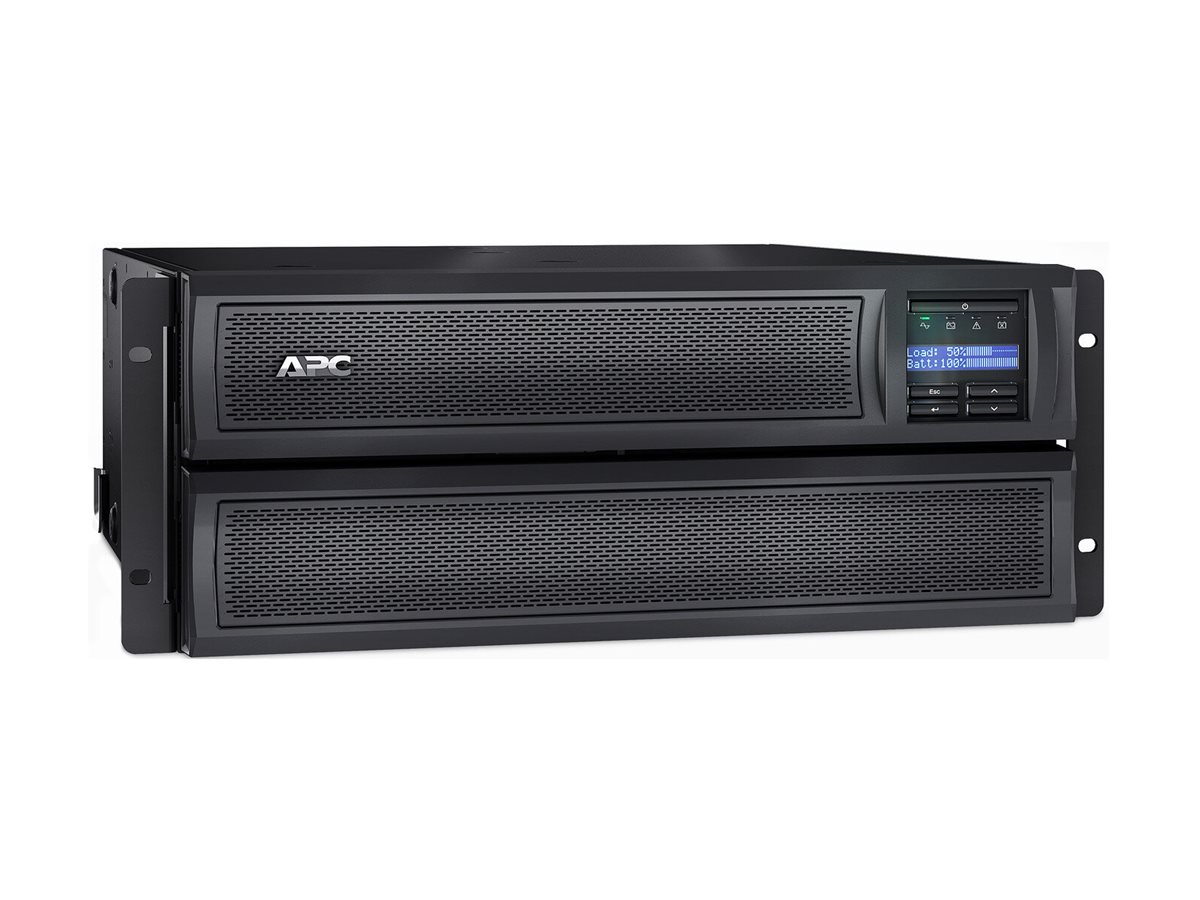

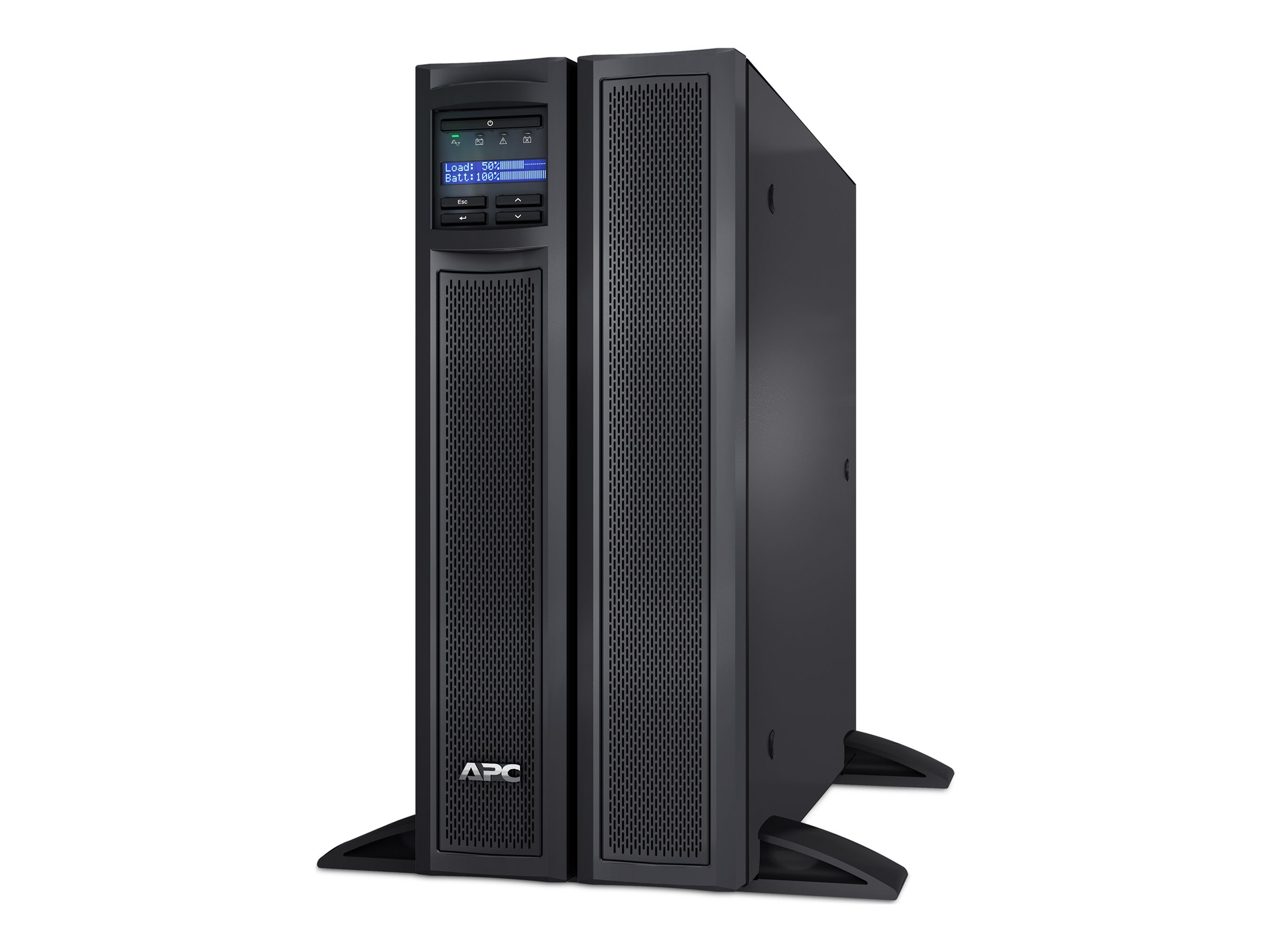

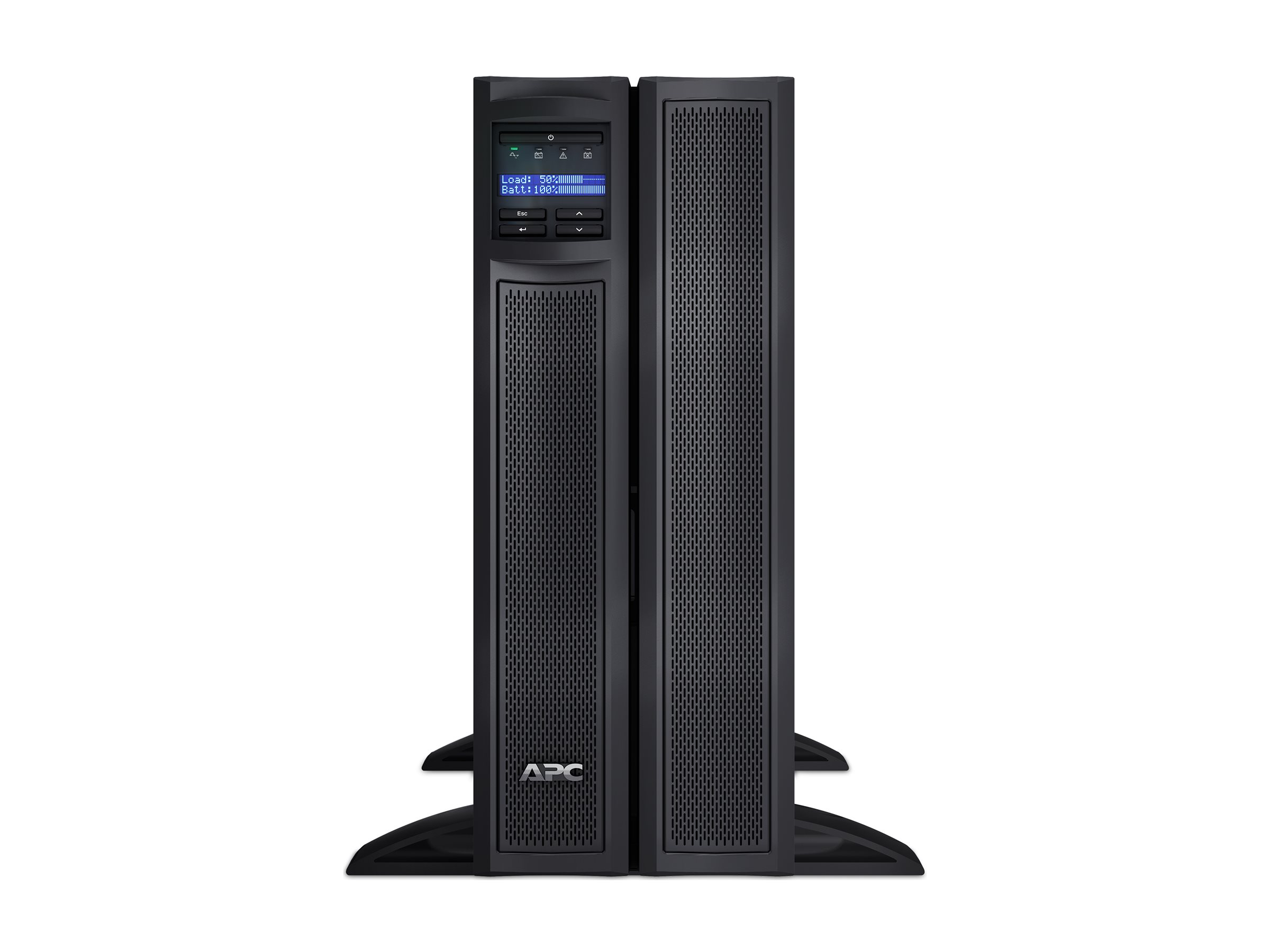

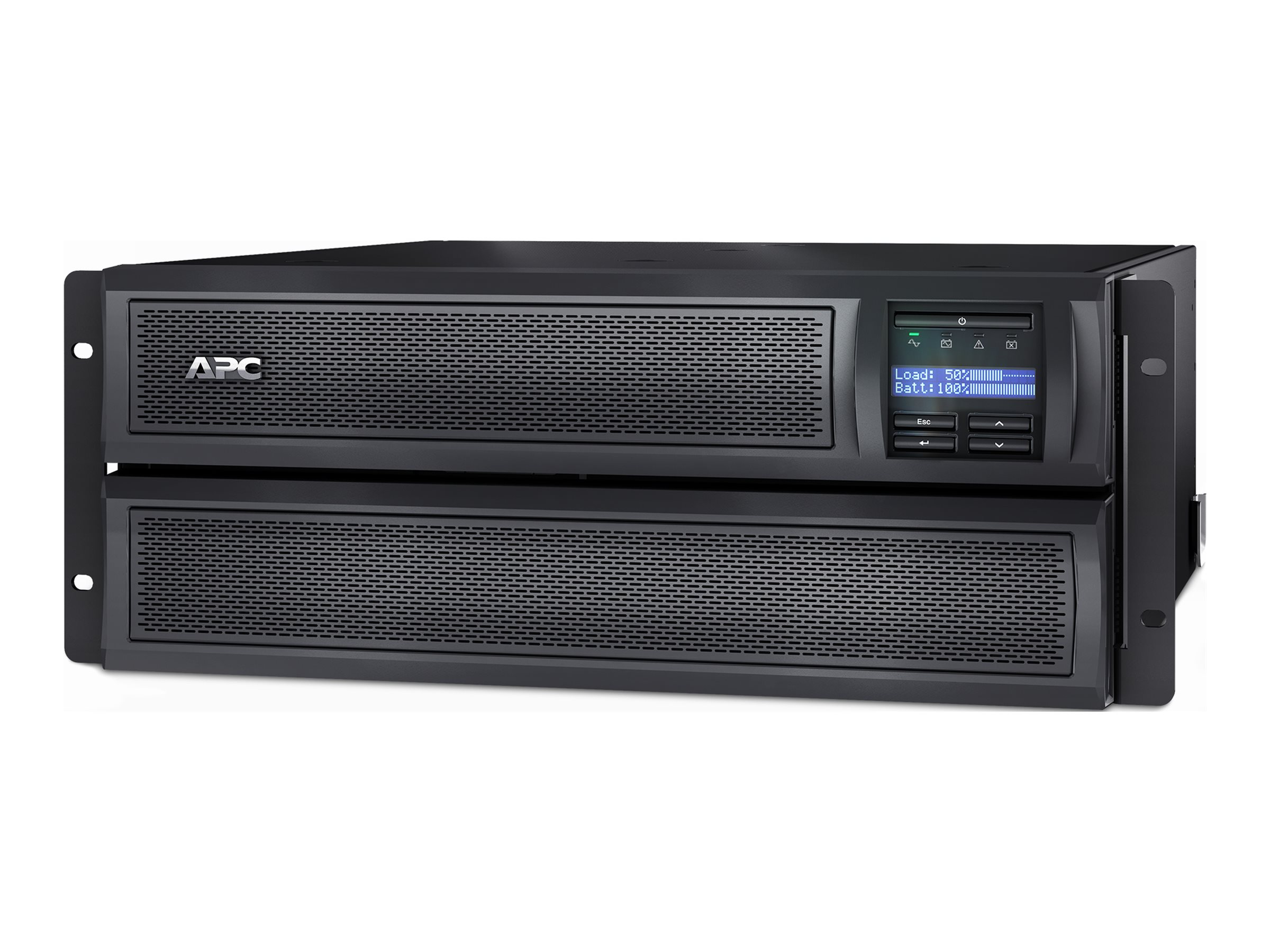

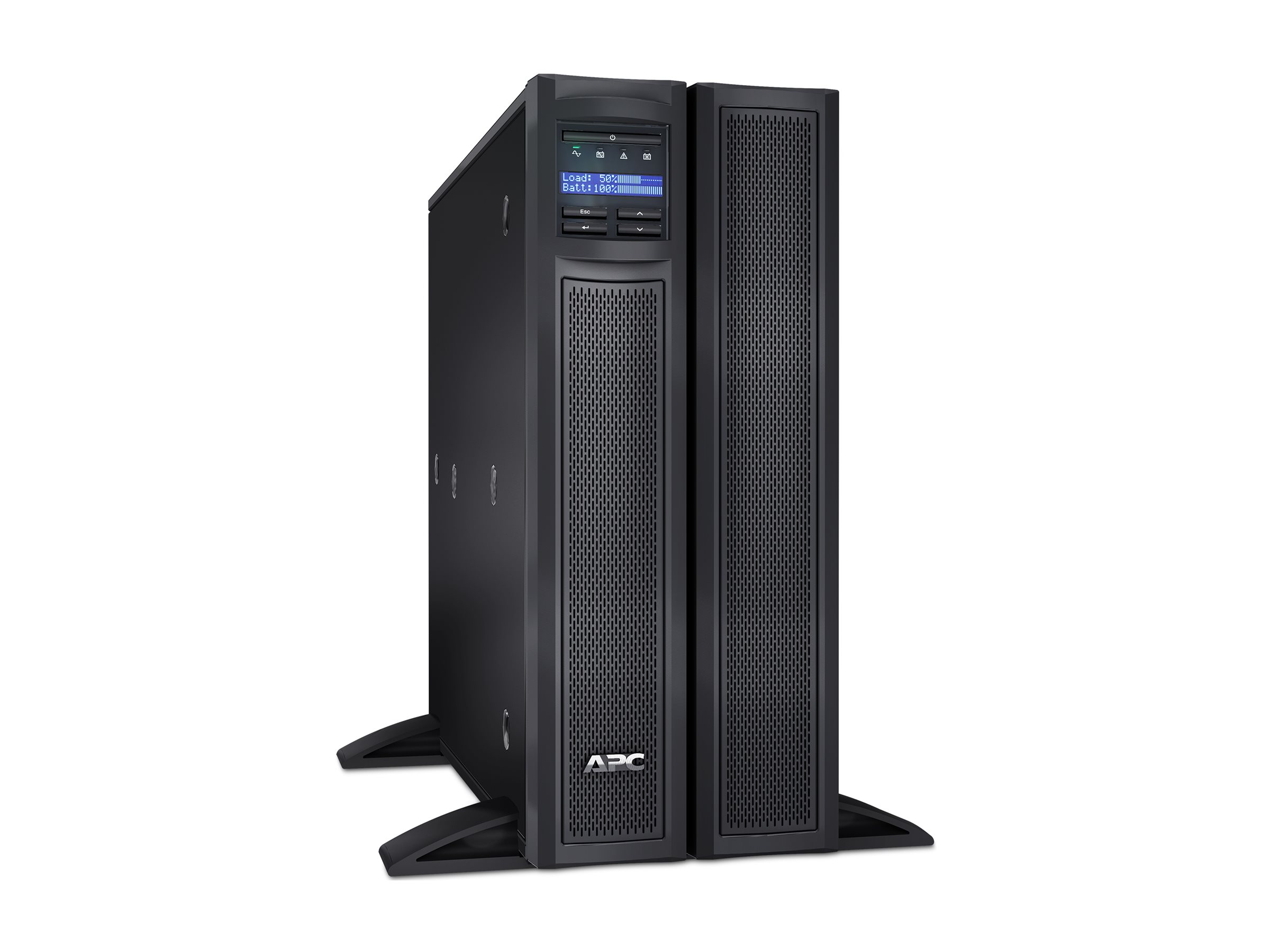

APC - APC Smart-UPS X SMX2000LVUS
UPS (rack-mountable / external) - AC 120 V - 1.8 kW - 1920 VA - USB - output connectors: 10 - 4U - black - TAA Compliant - for P/N: AR106SH6, AR109SH6, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
APC
SMX2000LVUS
N/A
0731304340362
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | APC Smart-UPS X SMX2000LVUS - UPS - 1.8 kW - 1920 VA - TAA Compliant |
| Device Type | UPS - rack-mountable / external |
| Rack Size | 4U |
| Weight | 85.19 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 5% |
| Power Capacity | 1.8 kW / 1920 VA |
| Input Connectors | 1 x power NEMA 5-20P |
| Output connectors | 6 x power NEMA 5-15R ¦ 3 x power NEMA 5-20R ¦ 1 x power NEMA L5-20R |
| Battery | Lead acid |
| Batteries Qty | 1 |
| Run Time (Up To) | 11 min at full load |
| Networking | USB |
| Included Accessories | Tower stand |
| Color | Black |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 7 in x 19 in x 17 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: AR106SH6, AR109SH6, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 4U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Miscellaneous | |
| Included Accessories | Tower stand |
| Cables Included | Power cable 8 ft ¦ USB cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 150000 US Dollars |
| Features | Automatic Voltage Regulation (AVR), LCD display, audible alarm, emergency power off, hot-swappable batteries |
| Compliant Standards | BSMI, CSA, EN 50091-2, EN55022 Class A, FCC Part 15 A, NOM, TUV, UL 1778, VCCI Class A, UL 1449, RoHS, REACH |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dBA |
| Battery | |
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 11 min at full load ¦ 27.6 min at half load |
| Recharge Time | 3 hours |
| Transfer Time | 4 ms |
| Features | Maintenance free, leak-proof, sealed |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 70 - 153 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-20P |

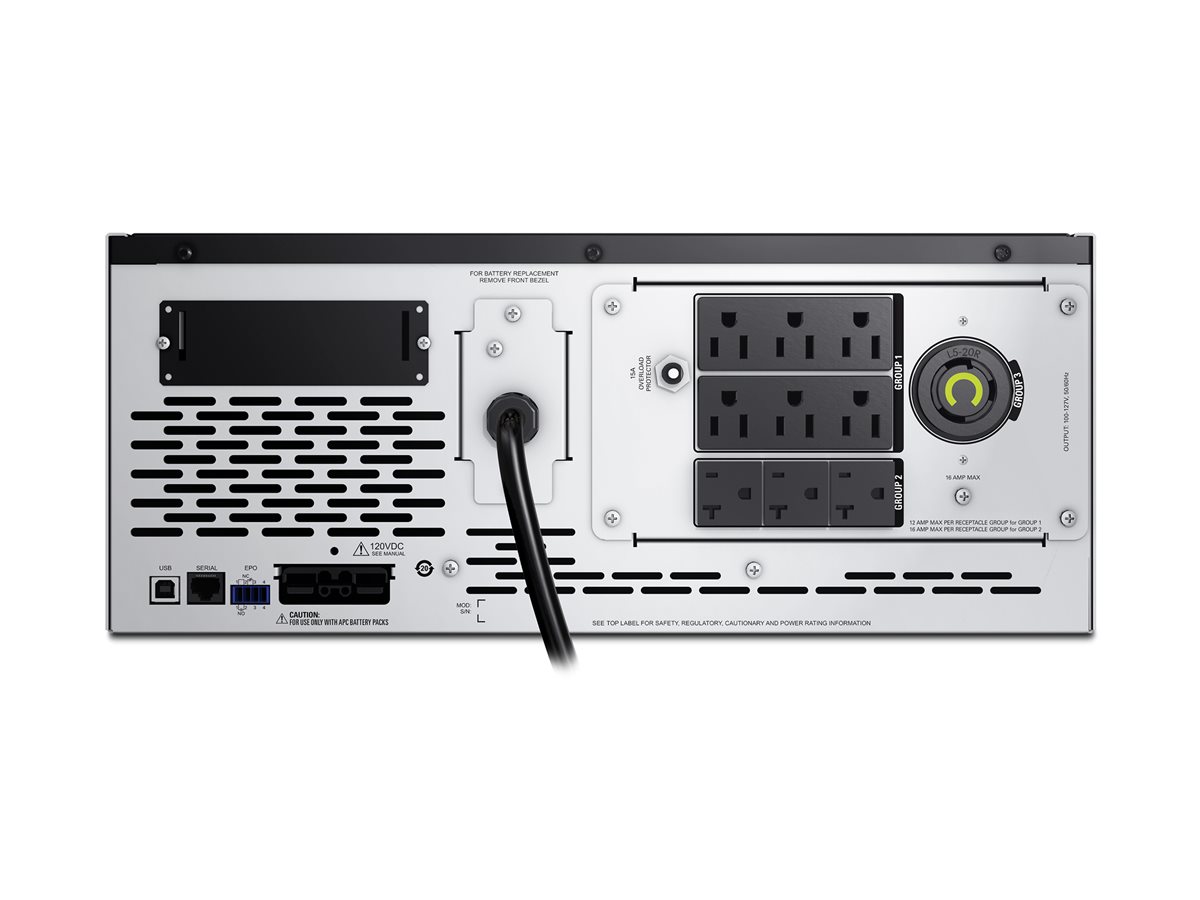

| Power Output Connectors Details | 6 x power NEMA 5-15R ¦ 3 x power NEMA 5-20R ¦ 1 x power NEMA L5-20R |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Power Capacity | 1.8 kW / 1920 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 540 Joules |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 19 in |
| Height | 17 in |
| Weight | 85.19 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.1 in |
| Shipping Depth | 24.9 in |
| Shipping Height | 13 in |
| Shipping Weight | 105.23 lbs |
| Compatibility Information | |
| Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF101BLK, ACF102BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR106SH6, AR109SH6, AR112SH6, AR201, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR3810, AR3812, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR7007, AR7050, AR7057, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A, SMX2000LV, SRT1000RMXLA, SUA3000R2IX38 |
| Sustainability Information | |
| ENERGY STAR | Yes |
