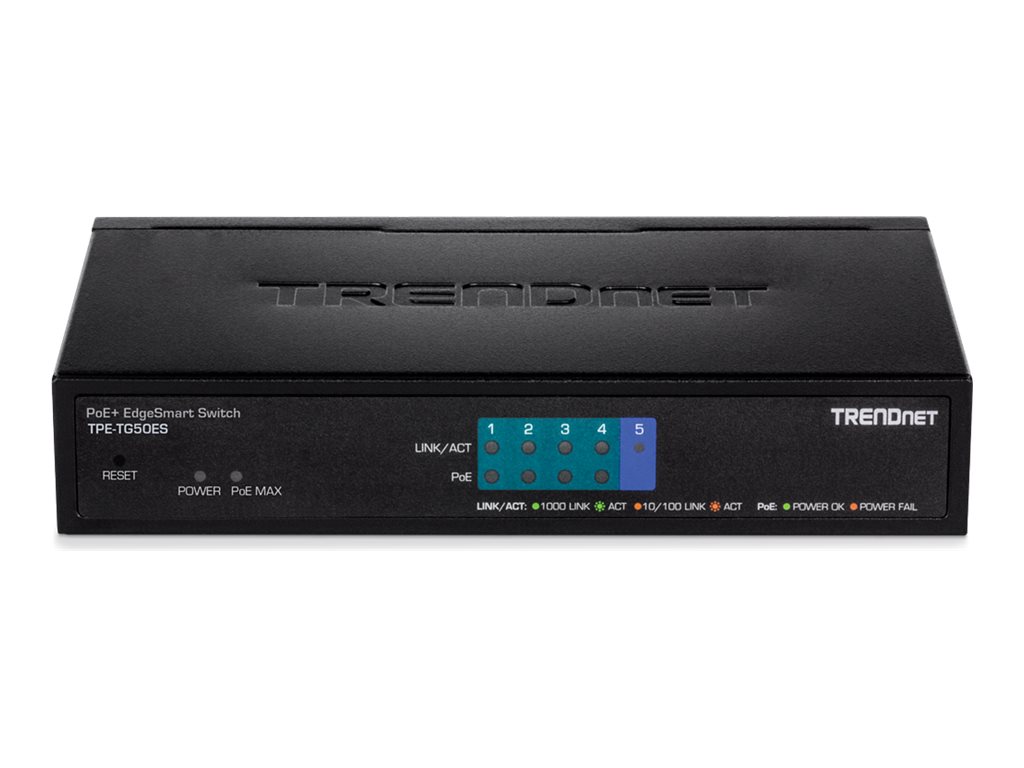

TRENDnet - TRENDnet TPE TG50ES
Switch - smart - 5 x 10/100/1000 (PoE+) - desktop - PoE+ (30 W) - TAA Compliant
TRENDnet
TPE-TG50ES
N/A
0710931161267
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TPE TG50ES - switch - 5 ports - smart - TAA Compliant |
| Device Type | Switch - 5 ports - smart |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 30 W |
| Performance | Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mpps |
| Capacity | VLAN groups: 32 ¦ Multicast groups: 32 |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP |
| Features | IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, wall mountable, STP support, RSTP support, reset button, bandwidth control, fanless, short circuit protection, CoS, SP, tagged VLAN, PoE overcurrent protection, cable test, Voice VLAN, Private VLAN, loopback detection, port-based QoS, block unknown multicast, Asymmetric VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az |
| Power | AC 120/230 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 5.9 in x 3.8 in x 1.1 in |
| Weight | 13.05 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 5 ports - smart |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 30 W |
| Performance | Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mpps |
| Capacity | VLAN groups: 32 ¦ Multicast groups: 32 |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP |
| Features | IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, wall mountable, STP support, RSTP support, reset button, bandwidth control, fanless, short circuit protection, CoS, SP, tagged VLAN, PoE overcurrent protection, cable test, Voice VLAN, Private VLAN, loopback detection, port-based QoS, block unknown multicast, Asymmetric VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az |
| RAM | 512 KB |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 5 x Gigabit LAN RJ-45 PoE+ - 18 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 730,455 hours |
| Compliant Standards | FCC, WEEE |
| TAA Compliant | Yes |
| Power | |

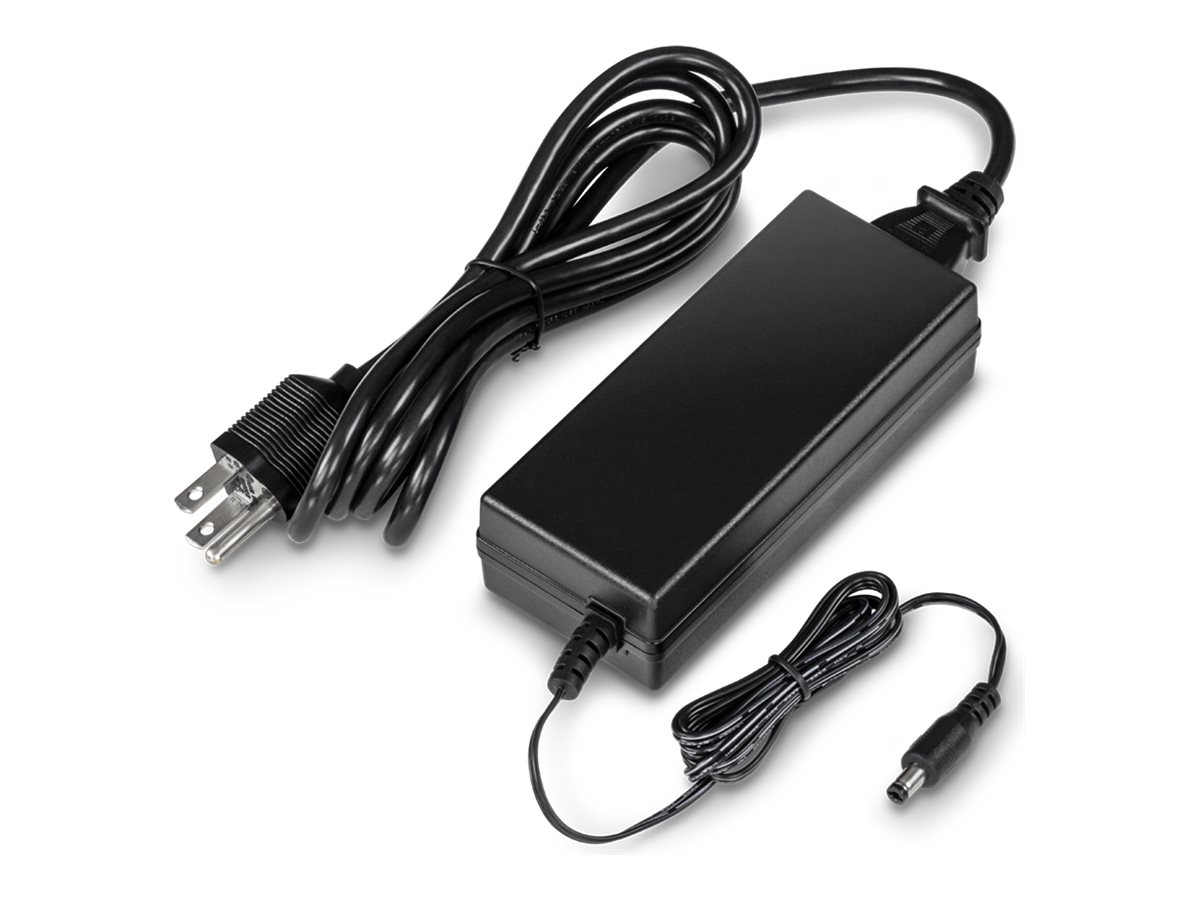

| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 30 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 3.8 in |
| Height | 1.1 in |
| Weight | 13.05 oz |
