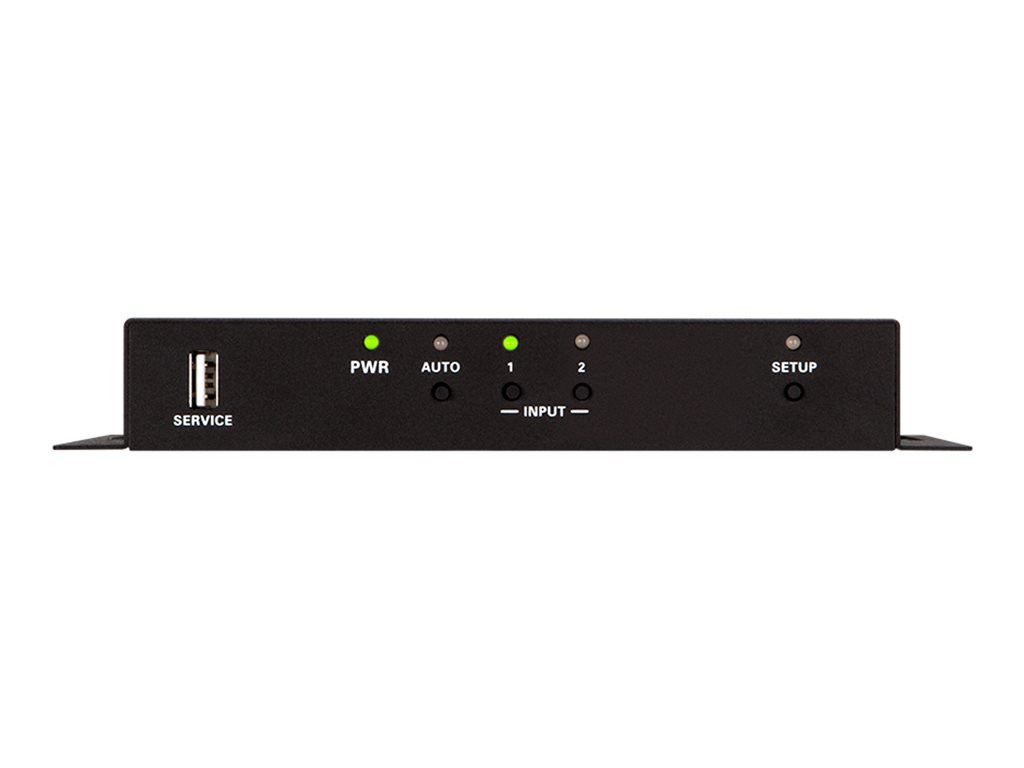

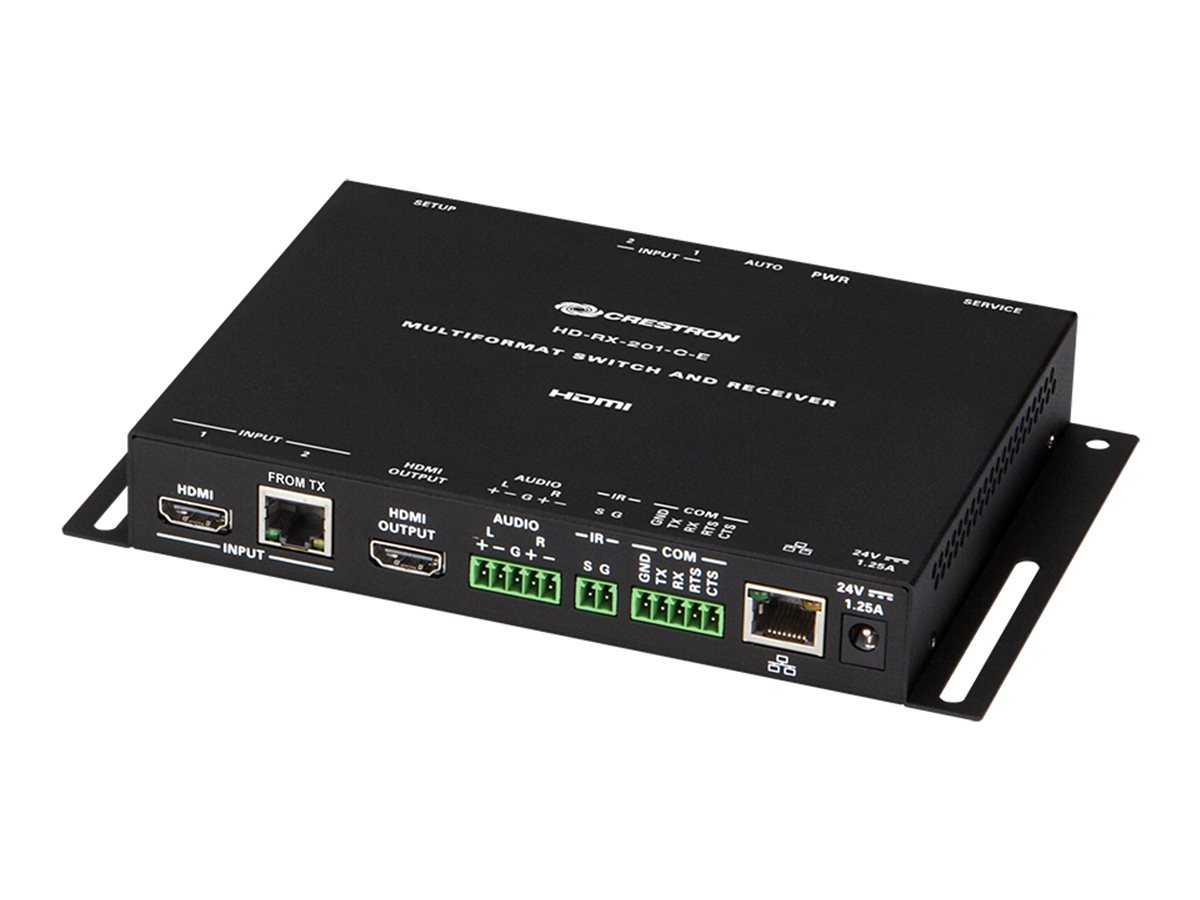

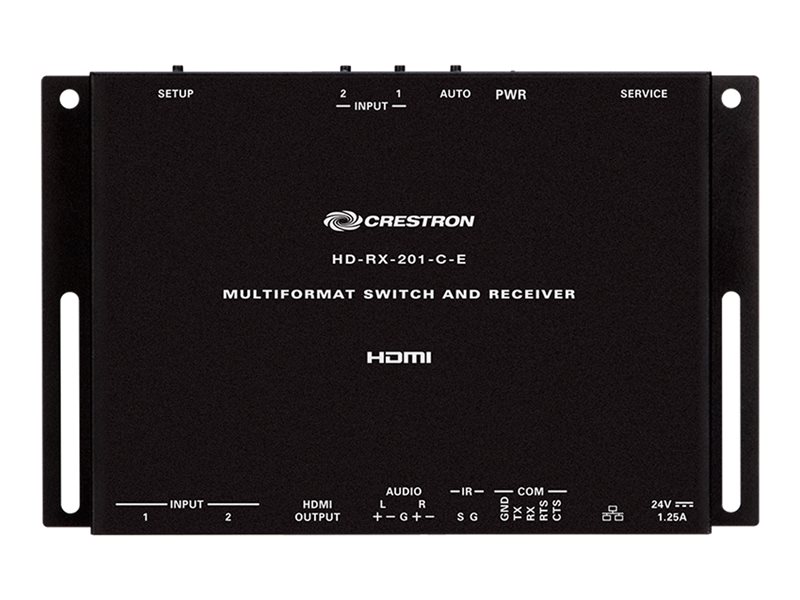

Crestron Electronics - Crestron DM Lite HD-RX-201-C-E HDMI over CATx Room Controller, 2x1 Auto-Switcher, HD Scaler, Surface Mount
Video/audio/infrared/serial extender - receiver - up to 230 ft - for DM Lite HD-TX-201-C-2G-E-B-T, HD-TX-201-C-2G-E-W-T, HD-TX-301-C-E
Crestron Electronics
HD-RX-201-C-E
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Crestron DM Lite HD-RX-201-C-E HDMI over CATx Room Controller, 2x1 Auto-Switcher, HD Scaler, Surface Mount - video/audio/infrared/serial extender |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | Surface-mountable |
| Remote Management Protocol | HTTP |
| Max Transfer Distance | 230 ft |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 7.7 in x 5 in x 1.1 in |
| Weight | 20.81 oz |
| Designed For | DM Lite HD-TX-201-C-2G-E-B-T, HD-TX-201-C-2G-E-W-T, HD-TX-301-C-E |
| General | |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | Surface-mountable |
| Color | Black |
| Expansion / Connectivity | |

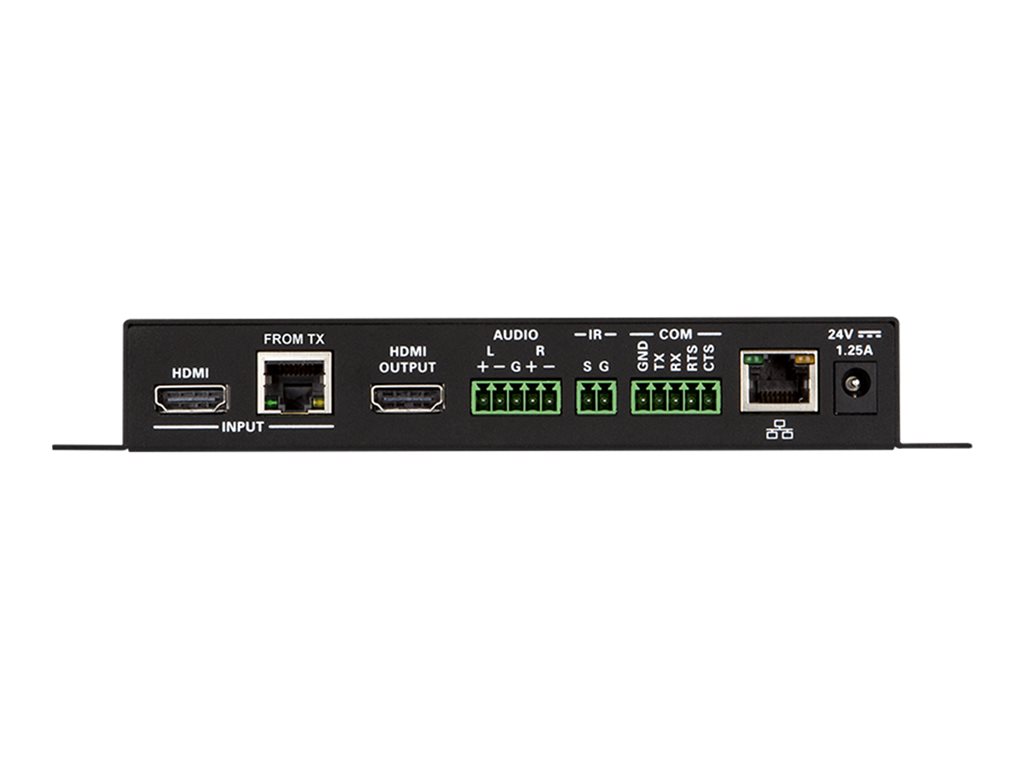

| Interfaces | 1 x HDMI (input) - Type A ¦ 1 x network - RJ-45 female ¦ 1 x IR (input / output) - terminal block ¦ 1 x network - RJ-45 female ¦ 1 x USB (management) - Type A female ¦ 1 x HDMI (output) - Type A ¦ 1 x RS-232 (bi-directional) - terminal block ¦ 1 x audio (balanced / unbalanced) - terminal block ¦ 1 x Ethernet 10/100 - RJ-45 female |
| Miscellaneous | |
| Compliant Standards | UL, IC, CEC, FCC Part 15 Class B |
| Networking | |
| Connectivity Technology | Wired |
| Remote Management Protocol | HTTP |
| Max Resolution | 1920 x 1200 / 1080p @ 60 Hz |
| Max Video Bandwidth | 165 MHz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Port status, power, auto, link/activity |
| Features | DHCP support, auto-negotiation, manageable, half duplex mode, full duplex mode, input selection buttons, scaling function, LPCM 7.1 support, EDID Management, built-in audio de-embedder, DTS support, Dolby Digital EX support, DTS Digital Surround 5.1 support, Dolby Digital support, auto-switching, deinterlacing, QuickSwitch HD technology |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.7 in |
| Depth | 5 in |
| Height | 1.1 in |
| Weight | 20.81 oz |
| Compatibility Information | |
| Designed For | Crestron DM Lite HD-TX-201-C-2G-E-B-T, HD-TX-201-C-2G-E-W-T, HD-TX-301-C-E |
