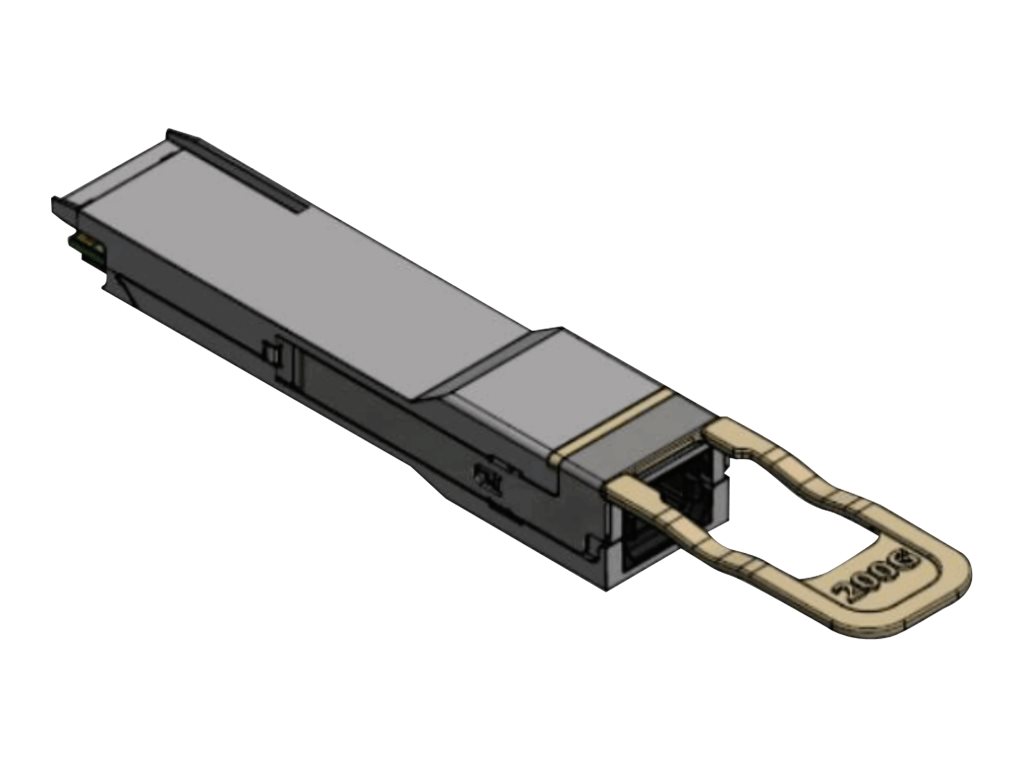

NVIDIA - Mellanox LinkX MMA1T00-VS
QSFP56 transceiver module - 200GbE - 200GAUI-4 - MPO multi-mode - up to 328 ft - 850 nm - for Spectrum-2 SN3700; Spectrum-3 SN4700
NVIDIA
MMA1T00-VS
N/A
7290108486438
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Mellanox LinkX MMA1T00-VS - QSFP56 transceiver module - 200GbE |
| Device Type | QSFP56 transceiver module - MPO multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 200GAUI-4 |
| Data Transfer Rate | 200 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 200GbE |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 0.7 in x 4.8 in x 0.5 in |
| Designed For | Spectrum-2 SN3700; Spectrum-3 SN4700 |
| General | |
| Device Type | QSFP56 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 200GAUI-4 - MPO multi-mode |
| Miscellaneous | |
| Compliant Standards | RoHS, Laser Class 1, MSA, OM3, MSA SFF-8665, MSA SFF-8636 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 200GAUI-4 |
| Data Link Protocol | 200GbE |
| Data Transfer Rate | 200 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 328 ft |
| Features | Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3bs, IEEE 802.3cd |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 4.8 in |
| Height | 0.5 in |
| Compatibility Information | |
| Designed For | NVIDIA Spectrum-2 SN3700 ¦ NVIDIA Spectrum-3 SN4700 |
