CyberPower - CyberPower Smart App Online OL2200RTXL2UN

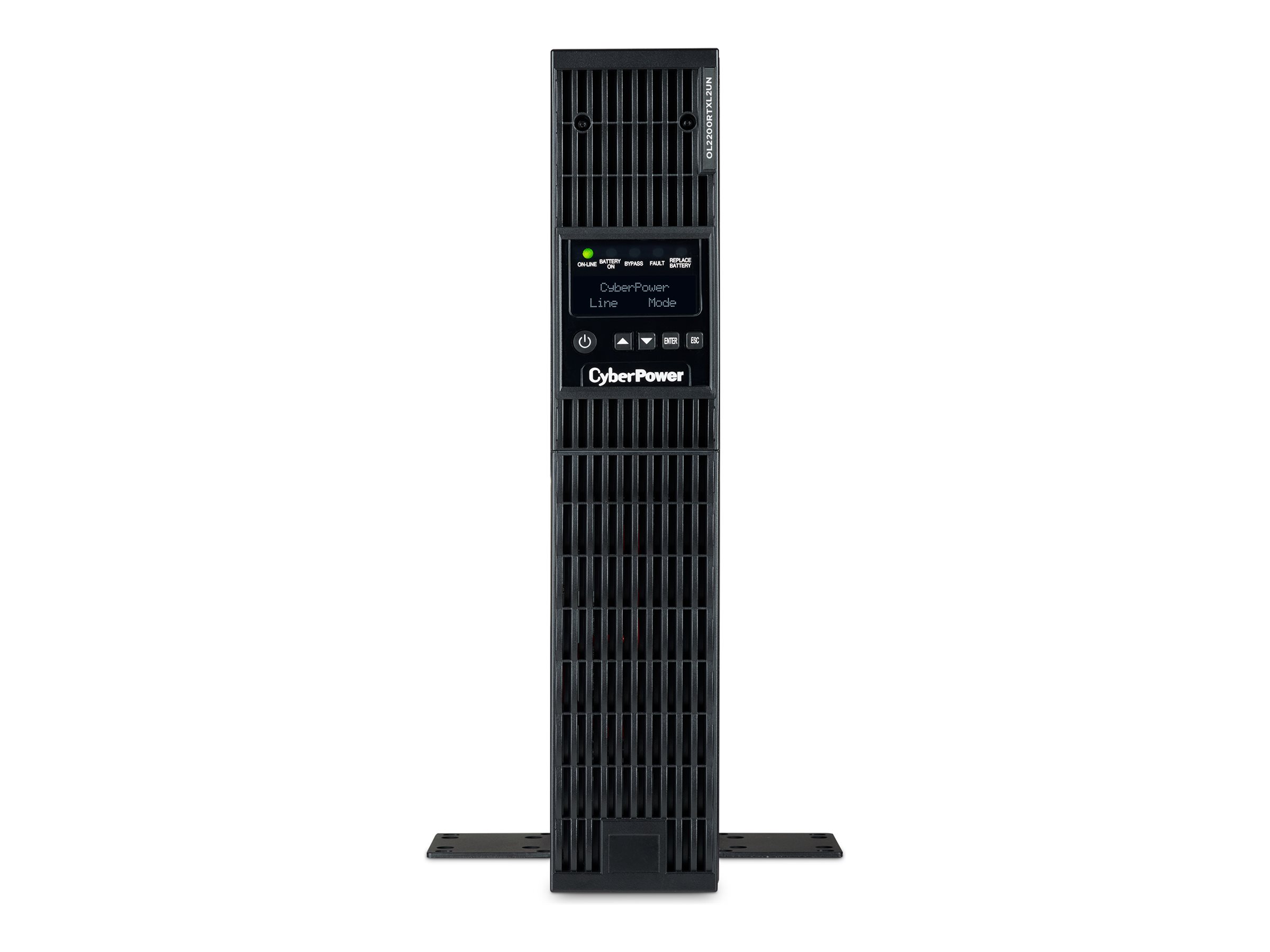

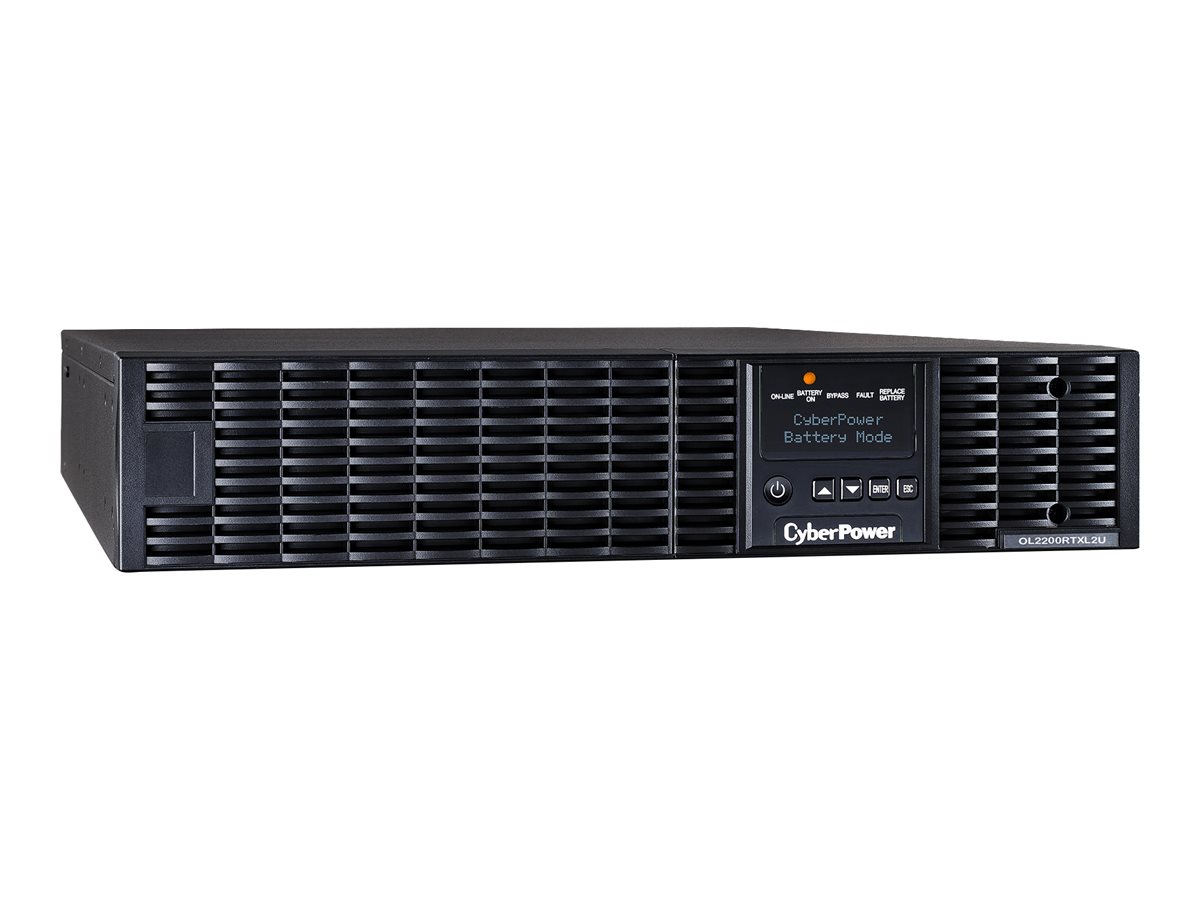

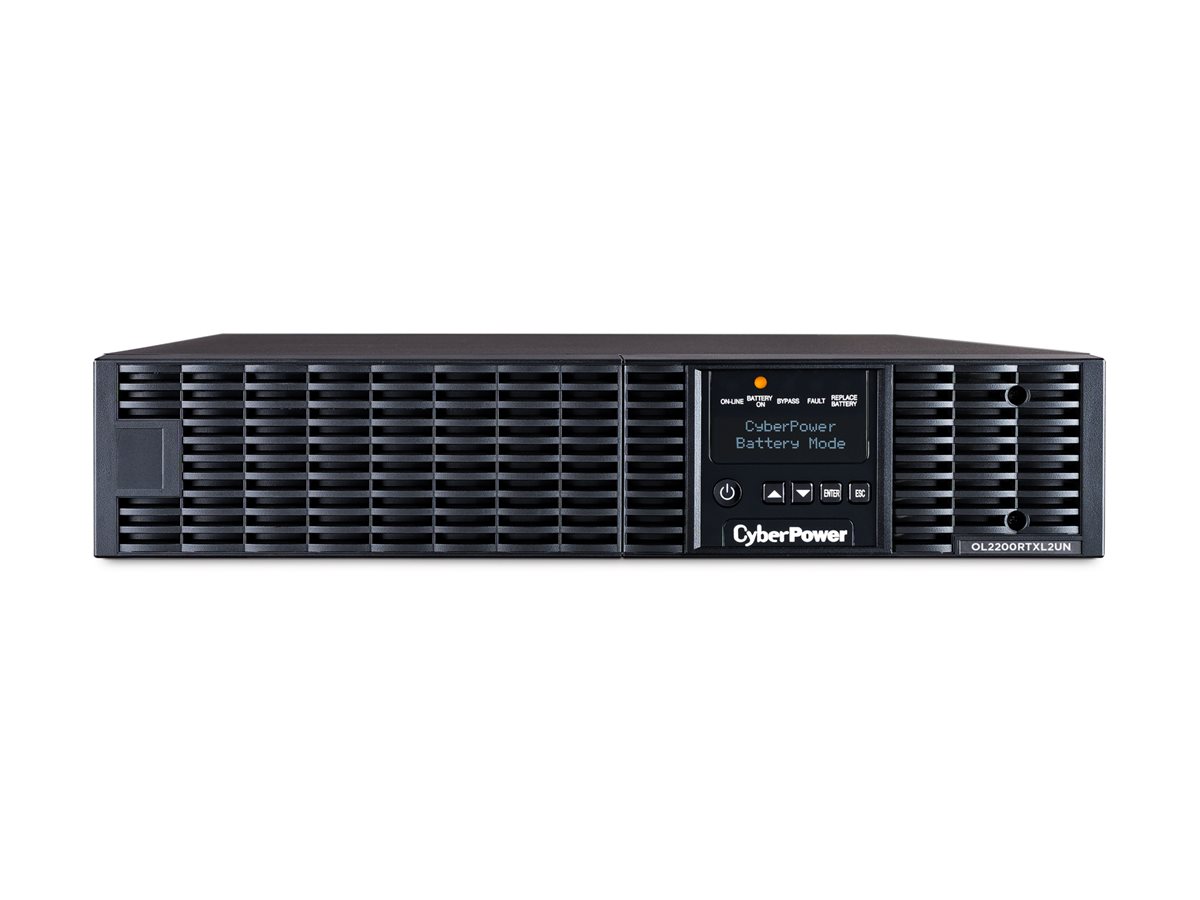

UPS (rack-mountable / external) - AC 120 V - 1800 Watt - 2200 VA - 9 Ah - RS-232, USB - output connectors: 7 - 2U - black - with RMCARD205 network management card
CyberPower
OL2200RTXL2UN
N/A
20649532621921
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | CyberPower Smart App Online OL2200RTXL2UN - UPS - 1800 Watt - 2200 VA - with RMCARD205 network management card |
| Device Type | UPS - rack-mountable / external |
| Rack Size | 2U |
| Weight | 68.19 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 100/110/115/120/125 V ± 2% |
| Power Capacity | 1800 Watt / 2200 VA |
| Input Connectors | 1 x power NEMA 5-20P |
| Output connectors | 6 x power NEMA 5-20R ¦ 1 x power NEMA L5-20R |
| Battery | Lead acid - 9 Ah |
| Batteries Qty | 6 |
| Run Time (Up To) | 6.5 min at full load |
| Networking | RS-232, USB |
| Color | Black |
| Dimensions (WxDxH) | 17 in x 23.6 in x 3.5 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| Bundled with | RMCARD205 network management card |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
| Bundled with | RMCARD205 network management card |
| Expansion / Connectivity | |

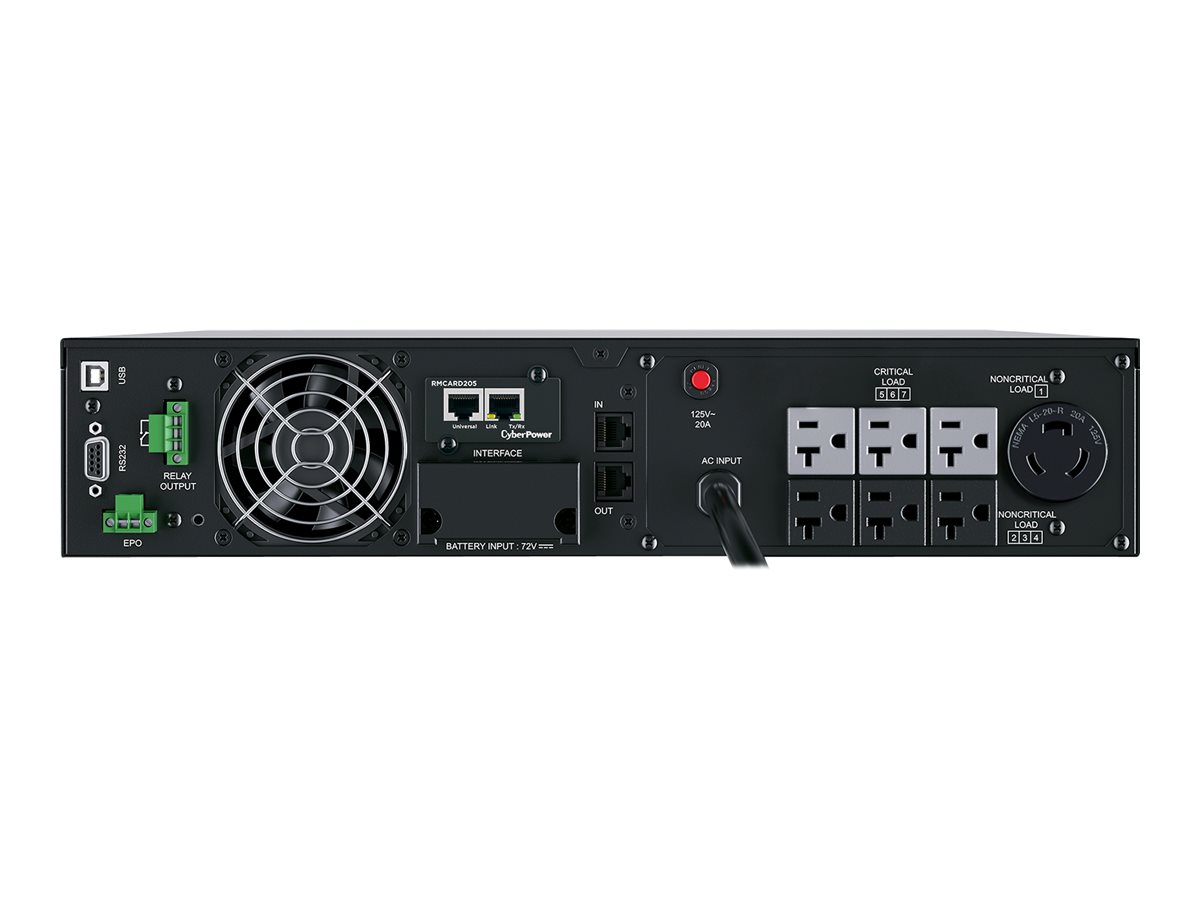

| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) ¦ 1 x relay output - terminal block |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ Phone cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 400000 US Dollars |
| Features | Audible alarm, LCD display, internal bypass, LED indicators, overload protection, cold-start function, firmware upgradable, Smart Battery Management (SMB), Eco-Mode, Auto-Sensing Technology, double conversion, Fast Charge technology |
| Compliant Standards | FCC Part 15 A, UL 1778 5th edition, CSA C22.2 No.107.3-05, IEC 61000-4-5 Level 3 |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Software / System Requirements | |
| Software Included | PowerPanel Business Edition |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Sound Emission | 55 dBA |
| Battery | |
| Quantity | 6 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 6.5 min at full load ¦ 20 min at half load |
| Recharge Time | 4 hours |
| Transfer Time | 0 ms |
| Features | Sealed |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 60 - 150 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA 5-20P |
| Power Output Connectors Details | 6 x power NEMA 5-20R ¦ 1 x power NEMA L5-20R |
| Output Voltage | AC 100/110/115/120/125 V ± 2% - 50/60 Hz |
| Power Capacity | 1800 Watt / 2200 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1335 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 95% Eco mode |
| Power Factor (PF) | 0.99 |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 23.6 in |
| Height | 3.5 in |
| Weight | 68.19 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.2 in |
| Shipping Depth | 22 in |
| Shipping Height | 34.7 in |
| Shipping Weight | 87.08 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
