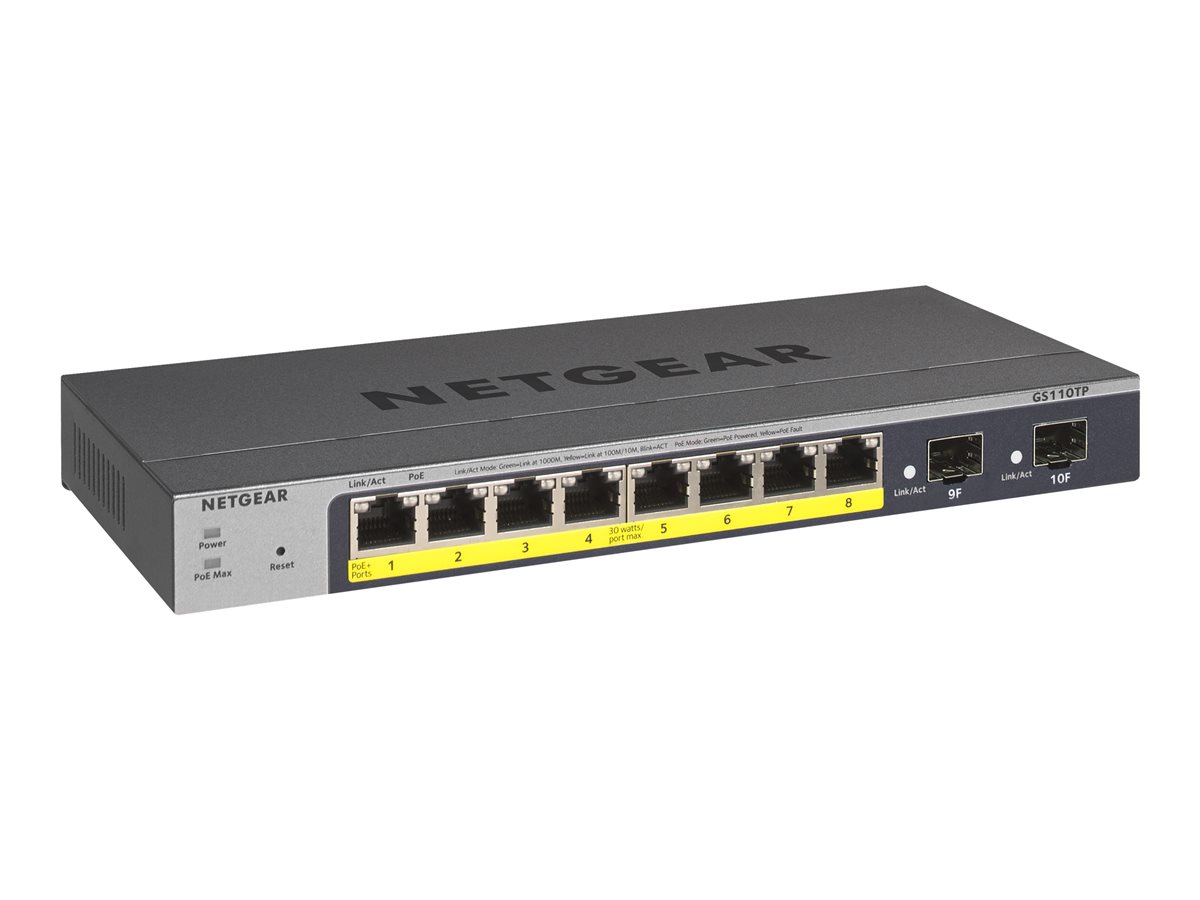

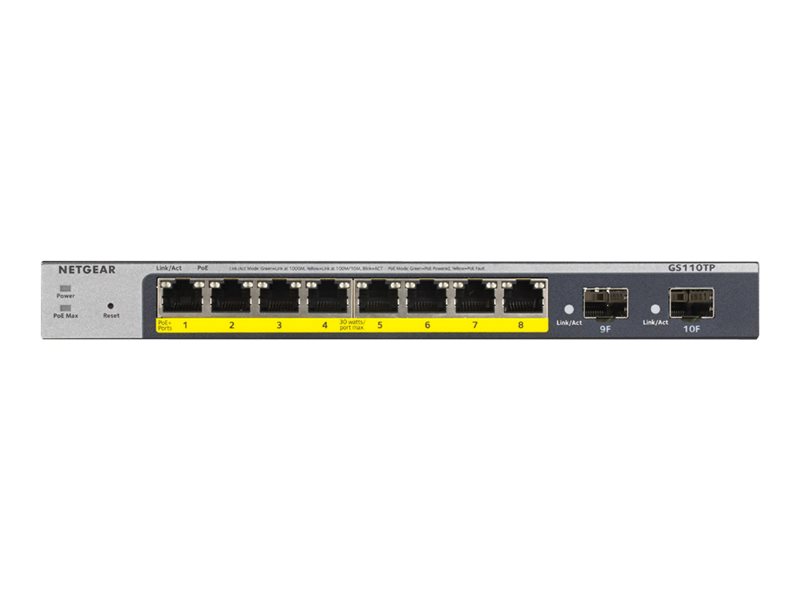

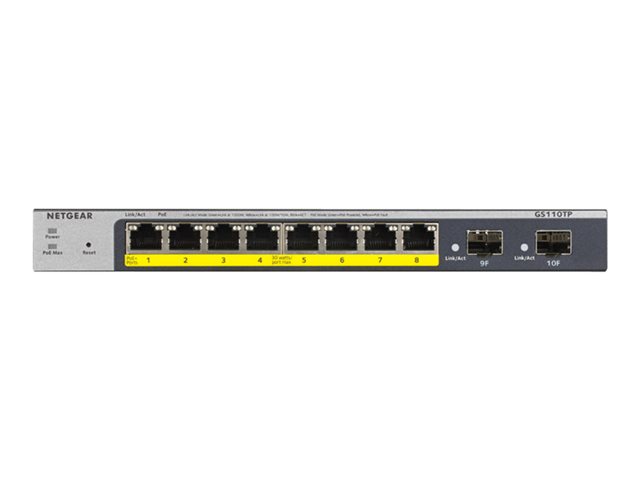

NETGEAR - NETGEAR Smart GS110TPv3
Switch - smart - 8 x 10/100/1000 (PoE) + 2 x SFP - desktop, wall-mountable - PoE+ (55 W) - DC power
NETGEAR
GS110TP-300NAS
N/A
0606449137637
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | NETGEAR Smart GS110TPv3 - switch - 8 ports - smart |
| Device Type | Switch - 8 ports - smart |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 55 W |
| Performance | Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.8 Mpps |
| Capacity | Packet buffer size: 512 KB ¦ ACL entries (ingress): 100 ¦ VLANs supported: 64 ¦ IPv4 routes (static): 32 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, IPv6 |
| Features | IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, MLD snooping, fanless, Link Aggregation Control Protocol (LACP), DHCP client, dual firmware images, loop prevention, tagged VLAN, cable test, LLDP-MED, protected ports, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Advanced QoS, Unknown Storm Control, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Power | DC 54 V |
| Dimensions (WxDxH) | 9.3 in x 4 in x 1.1 in |
| Weight | 21.51 oz |
| Localization | Latin America, North America |
| Manufacturer Warranty | NETGEAR lifetime warranty |
| General | |
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 55 W |
| Performance | Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.8 Mpps |
| Capacity | Packet buffer size: 512 KB ¦ ACL entries (ingress): 100 ¦ VLANs supported: 64 ¦ IPv4 routes (static): 32 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, IPv6 |
| Encryption Algorithm | TLS 1.2 |
| Authentication Method | RADIUS, TACACS+ |
| Features | IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, MLD snooping, fanless, Link Aggregation Control Protocol (LACP), DHCP client, dual firmware images, loop prevention, tagged VLAN, cable test, LLDP-MED, protected ports, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Advanced QoS, Unknown Storm Control, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor | : 500 MHz |
| RAM | 128 MB |
| Flash Memory | 32 MB |
| Status Indicators | Port status, PoE, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Limited warranty - power supply - 2 years ¦ Technical support - phone consulting - 90 days |
| Miscellaneous | |
| Included Accessories | Wall mounting kit |
| MTBF | 1,200,041 hours |
| Localization | Latin America, North America |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 54 V |
| Power Consumption Operational | 69.5 Watt |
| Power Consumption Stand by | 4.3 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.3 in |
| Depth | 4 in |
| Height | 1.1 in |
| Weight | 21.51 oz |
