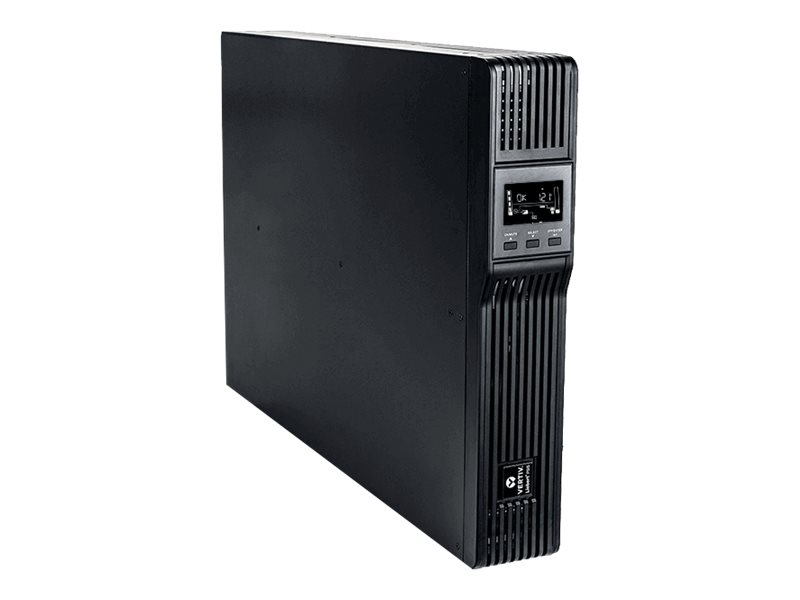

Vertiv - Liebert PSI5 PSI5-3000RT120N
UPS (rack-mountable / external) - AC 120 V - 2700 Watt - 3000 VA - 9 Ah - Ethernet 10/100 - output connectors: 7 - 2U
Vertiv
PSI5-3000RT120N
N/A
0812105028731
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Liebert PSI5 PSI5-3000RT120N - UPS - 2700 Watt - 3000 VA |
| Device Type | UPS - rack-mountable / external |
| Rack Size | 2U |
| Weight | 70.77 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 100/110/115/120/125 V |
| Power Capacity | 2700 Watt / 3000 VA |
| Input Connectors | 1 x power NEMA L5-30P |
| Output connectors | 3 x power NEMA 5-15/20R - 120 V ¦ 1 x power NEMA L5-30R - 120 V ¦ 3 x power NEMA 5-20R - 120 V |
| Battery | Lead acid expandable - 9 Ah |
| Batteries Qty | 6 |
| Run Time (Up To) | 3 min at full load |
| Networking | Ethernet 10/100 |
| Remote Management Protocol | SNMP |
| Included Accessories | Floor stand |
| Dimensions (WxDxH) | 17.2 in x 24.8 in x 3.5 in |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Expansion / Connectivity | |
| Interfaces | 1 x management - 4 pin USB Type B ¦ 1 x EPO (emergency power off) - terminal block ¦ 1 x management (Fast Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x Liebert IntelliSlot |
| Miscellaneous | |
| Included Accessories | Floor stand |
| Cables Included | Power cable - integrated - 10 ft ¦ USB cable - external - 6.6 ft |
| Rack Mounting Kit | Included |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overcurrent protection, overload protection, short-circuit protection, 3 programmable sockets |
| Compliant Standards | UL 1989, ANSI C62.41 Category A, Level 3, 1372J |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP |
| Software / System Requirements | |
| Software Included | Liebert MultiLink Shutdown |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Sound Emission | 55 dB |
| Battery | |
| Type | Expandable |
| Quantity | 6 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 3 min at full load ¦ 5 min at 75% load ¦ 12 min at half load ¦ 26 min at 25% load ¦ 76 min at 10% load |
| Recharge Time | 4 hours |
| Transfer Time | 6 ms |
| Features | Valve-regulated |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 75 - 146 V |
| Frequency Provided | 60 Hz ± 1% |
| Input Voltage Margin | ± 5% |
| Frequency Required | 55 - 65 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 3 x power NEMA 5-15/20R - 120 V ¦ 1 x power NEMA L5-30R - 120 V ¦ 3 x power NEMA 5-20R - 120 V |
| Output Voltage | AC 100/110/115/120/125 V 60 Hz |
| Power Capacity | 2700 Watt / 3000 VA |
| Dataline Surge Protection | Network/phone line - RJ-45 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Efficiency | 96% |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 24.8 in |
| Height | 3.5 in |
| Weight | 70.77 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.2 in |
| Shipping Depth | 30.8 in |
| Shipping Height | 21.7 in |
| Shipping Weight | 81.79 lbs |
