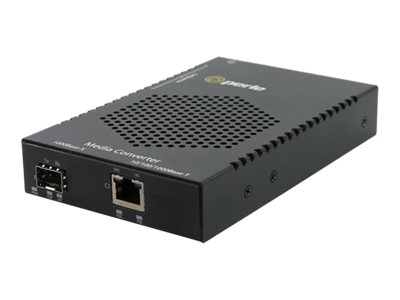

Perle - Perle S-1110HP-SFP-XT
Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X - RJ-45 / SFP (mini-GBIC) - up to 328 ft
Perle
05079900
N/A
0734660799003
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Perle S-1110HP-SFP-XT - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | High PoE |
| Power | DC 52 - 57 V |
| Dimensions (WxDxH) | 3.7 in x 5.9 in x 1 in |
| Weight | 14.11 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 female - 100 W ¦ 1 x Ethernet 100Base-X/1000Base-X - SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Mounting Kit | Optional |
| Rack Mounting Kit | Optional |
| MTBF | 324,134 hours |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, EN55024, RoHS, UL 60950-1, WEEE, FCC Part 15 A, REACH, IP20, CISPR 24:2010, EN 55024:2010, EN 55022 Class A, EN 55032:2012 Class A, EN 62368-1:2014, CISPR 32:2012, IEC 62368-1 Second Edition |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| MAC Address Table Size | 1024 entries |
| Max Transfer Distance | 328 ft |
| Status Indicators | Port transmission speed, port duplex mode, power, PoE, link/activity |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), MAC address filtering, half duplex mode, full duplex mode, Jumbo Frames support, over-current protection, Fiber Fault Alert, Smart Link Pass-Through, DIN rail mountable, tagged VLAN, Loopback, 1.5 KV Magnetic Isolation, metal housing, Power Sourcing Equipment (PSE) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3af, IEEE 802.3xy, IEEE 802.3at, IEEE 802.3bt |
| Power | |
| Power Over Ethernet (PoE) | High PoE |
| Voltage Required | DC 52 - 57 V |
| Power Consumption Operational | 4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.7 in |
| Depth | 5.9 in |
| Height | 1 in |
| Weight | 14.11 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.9 in |
| Shipping Depth | 11.8 in |
| Shipping Height | 2.8 in |
| Shipping Weight | 19.75 oz |
