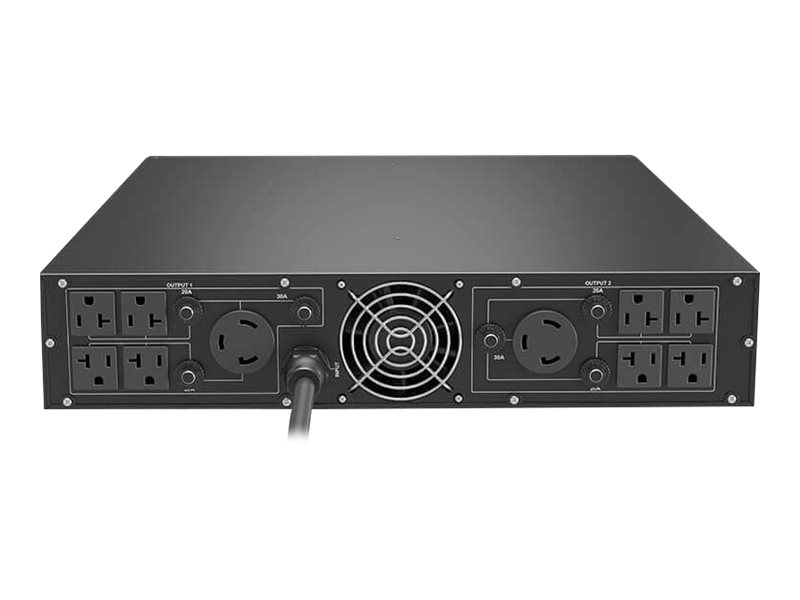

Vertiv - Liebert TDU

Transformer (rack-mountable / external) - AC 200/208/220/230/240 V - 4000 Watt - 4000 VA - output connectors: 10 - 2U - for P/N: GXT5-10KHVRT5UXLN, GXT5-3KL630RT2UXL, GXT5-6KL630RT5UXLN, GXT5-8000HVRT5UXLN

Vertiv
TDU-4000RTL630
N/A
0636430087580
N/A
New

Price: $1,273.85

Total Available: 15

Product Description

Additional Details

What's Included

Specifications

Print Specs
Main Specifications
Product Description Liebert TDU - transformer - 4000 Watt - 4000 VA
Device Type Transformer - rack-mountable / external
Rack Size 2U
Input Voltage AC 200/208/220/230/240 V
Output Voltage AC 100/110/115/120/125 V
Power Capacity 4000 Watt / 4000 VA
Input Connectors Power NEMA L6-30P
Output connectors 8 x power NEMA 5-15/20R ¦ 2 x power NEMA L5-30R
Dimensions (WxDxH) 16.9 in x 22.6 in x 3.3 in
Designed For P/N: GXT5-10KHVRT5UXLN, GXT5-3KL630RT2UXL, GXT5-6KL630RT5UXLN, GXT5-8000HVRT5UXLN
General
Device Type Transformer - rack-mountable / external
Height (Rack Units) 2U
Miscellaneous
Cables Included Power cable 2 ft
Rack Mounting Kit Included
Compliant Standards FCC Class A certified, UL, cUL, UL 1778, RoHS, REACH
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 90% (non-condensing)
Sound Emission 55 dBA
Power Device
Input Voltage AC 200/208/220/230/240 V
Input Voltage Range AC 200 - 240 V
Input Connectors Power NEMA L6-30P
Power Output Connectors Details 8 x power NEMA 5-15/20R ¦ 2 x power NEMA L5-30R
Output Voltage AC 100/110/115/120/125 V
Max Electric Current 30 A
Power Capacity 4000 Watt / 4000 VA
Dimensions & Weight
Width 16.9 in
Depth 22.6 in
Height 3.3 in
Dimensions & Weight (Shipping)
Shipping Width 23.9 in
Shipping Depth 10.6 in
Shipping Height 29.4 in
Compatibility Information
Designed For P/N: GXT5-10KHVRT5UXLN, GXT5-3KL630RT2UXL, GXT5-6KL630RT5UXLN, GXT5-8000HVRT5UXLN
