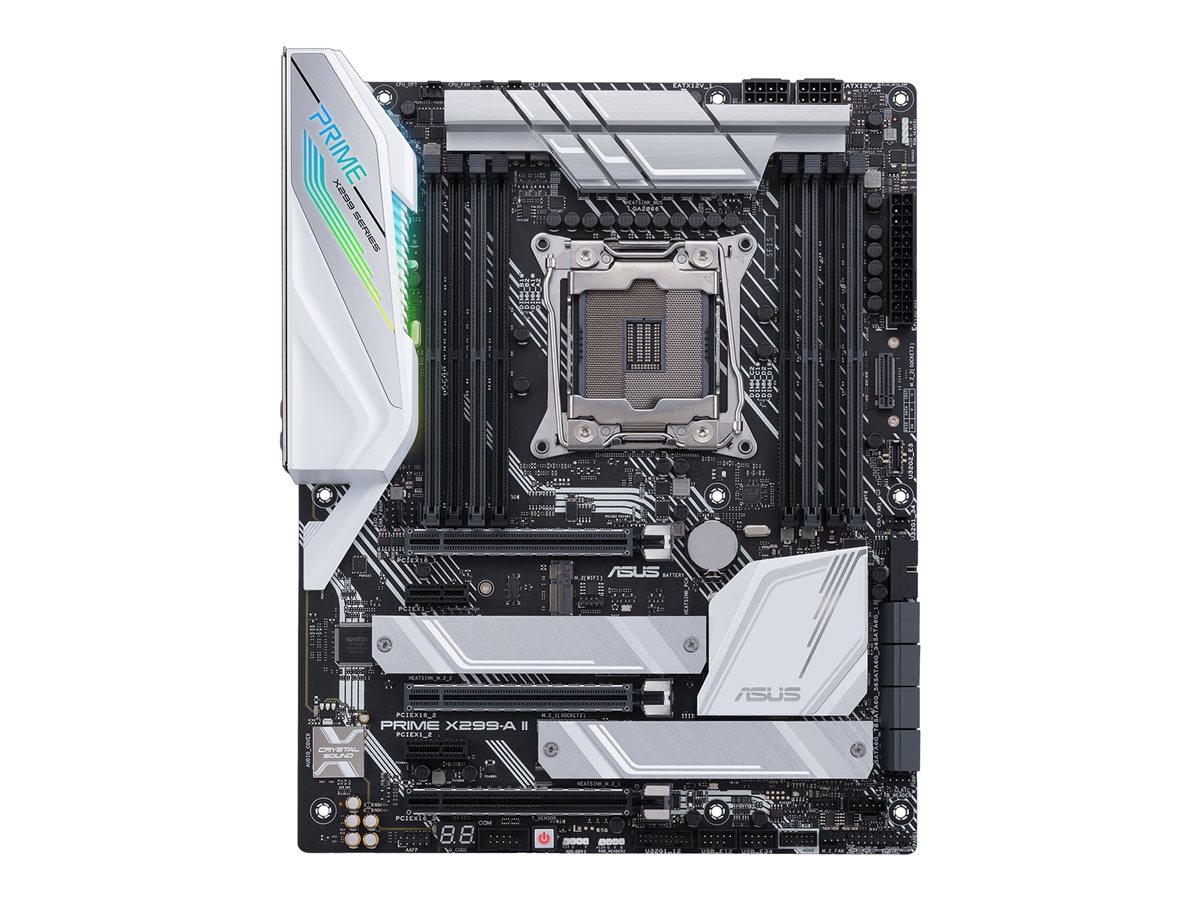

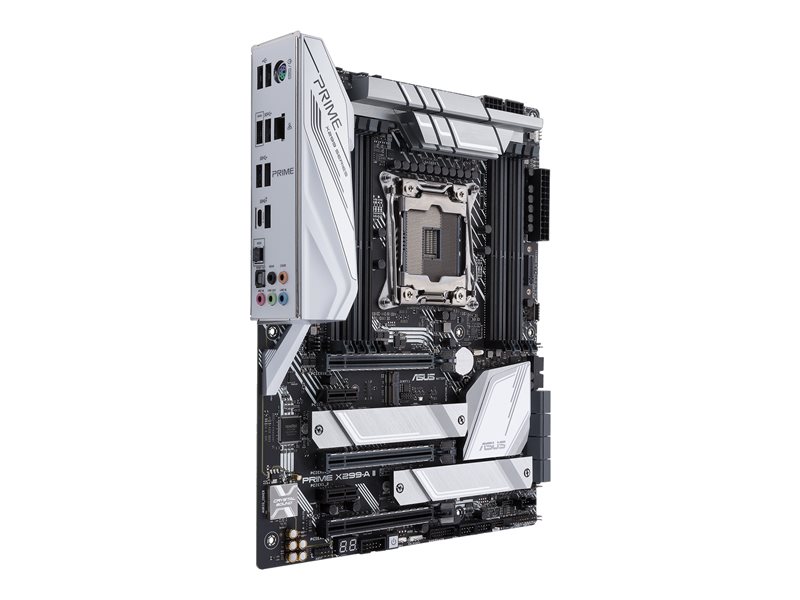

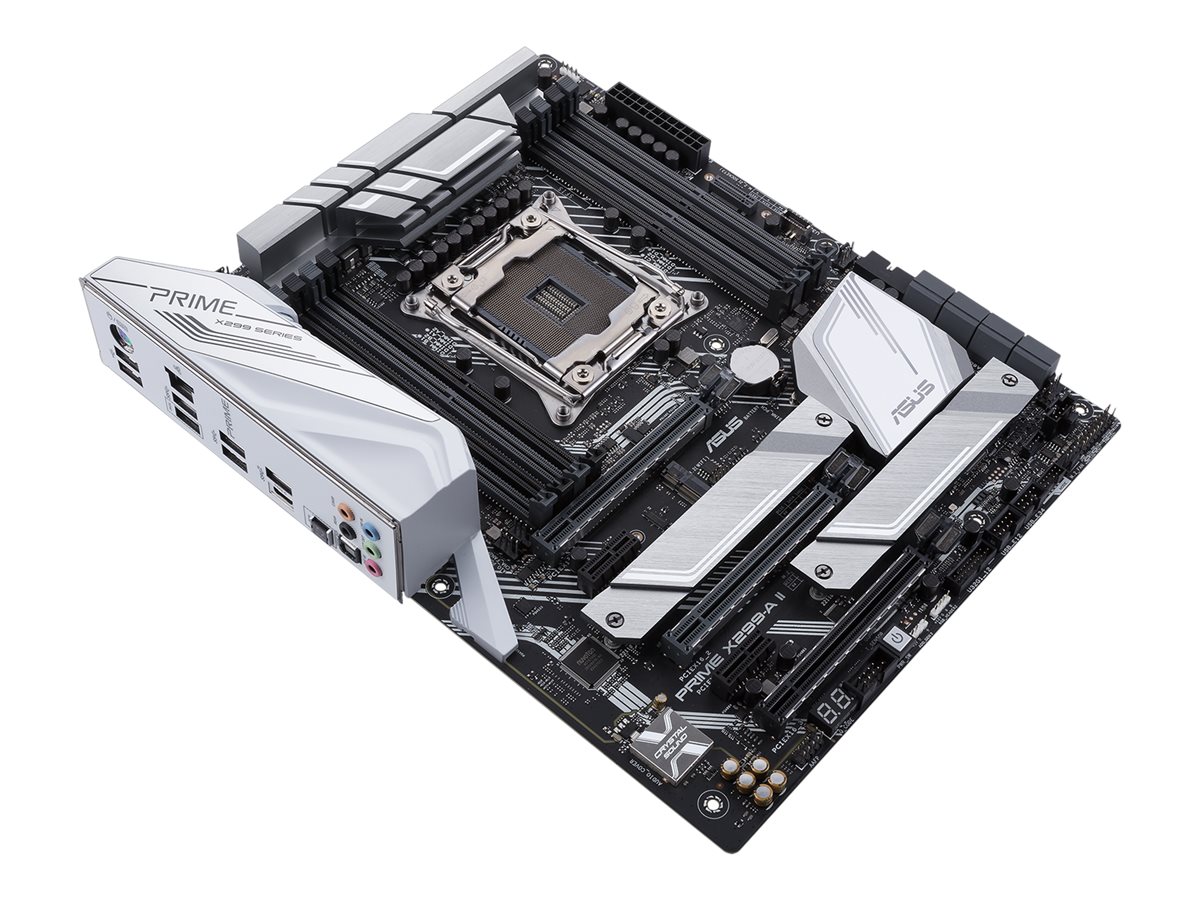

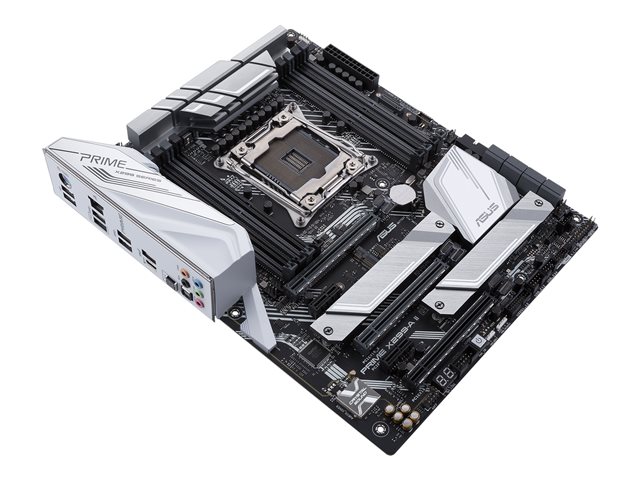

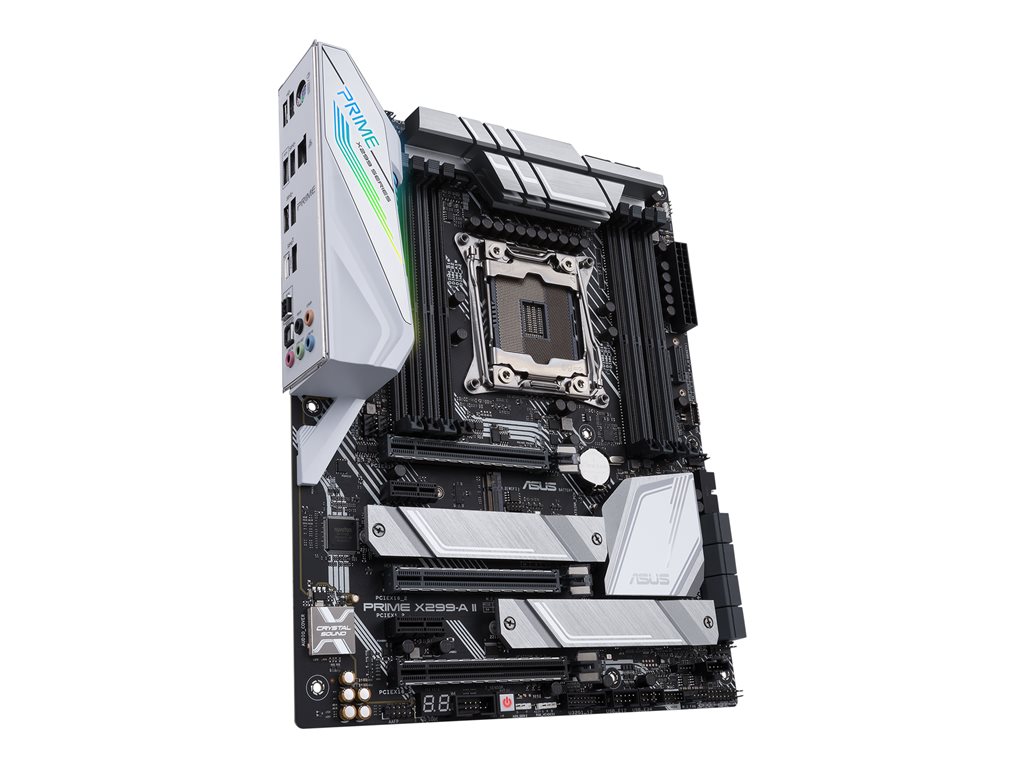

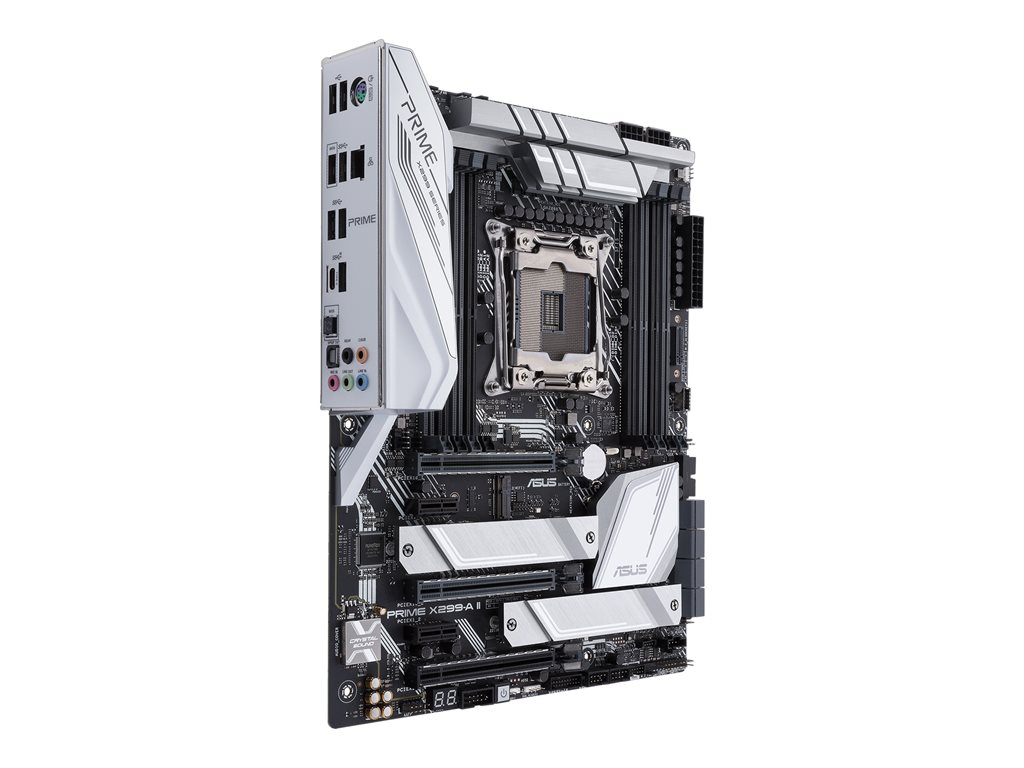

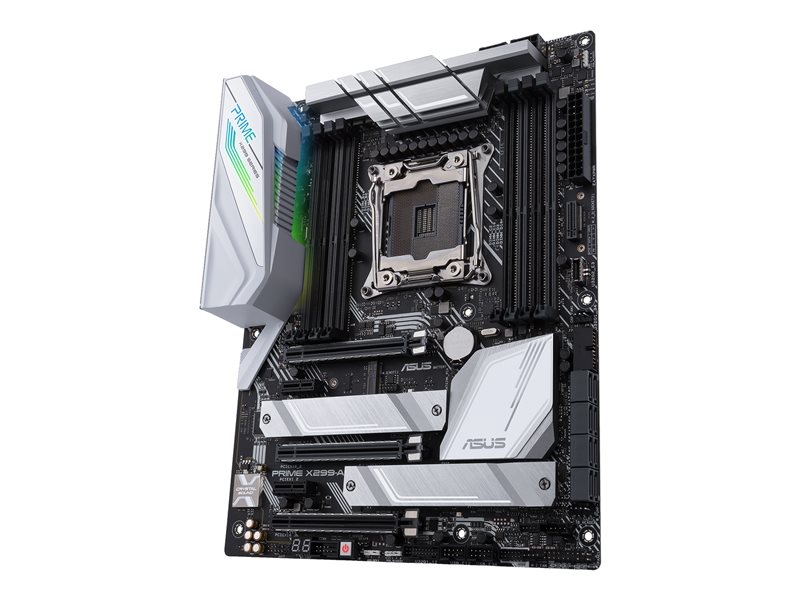

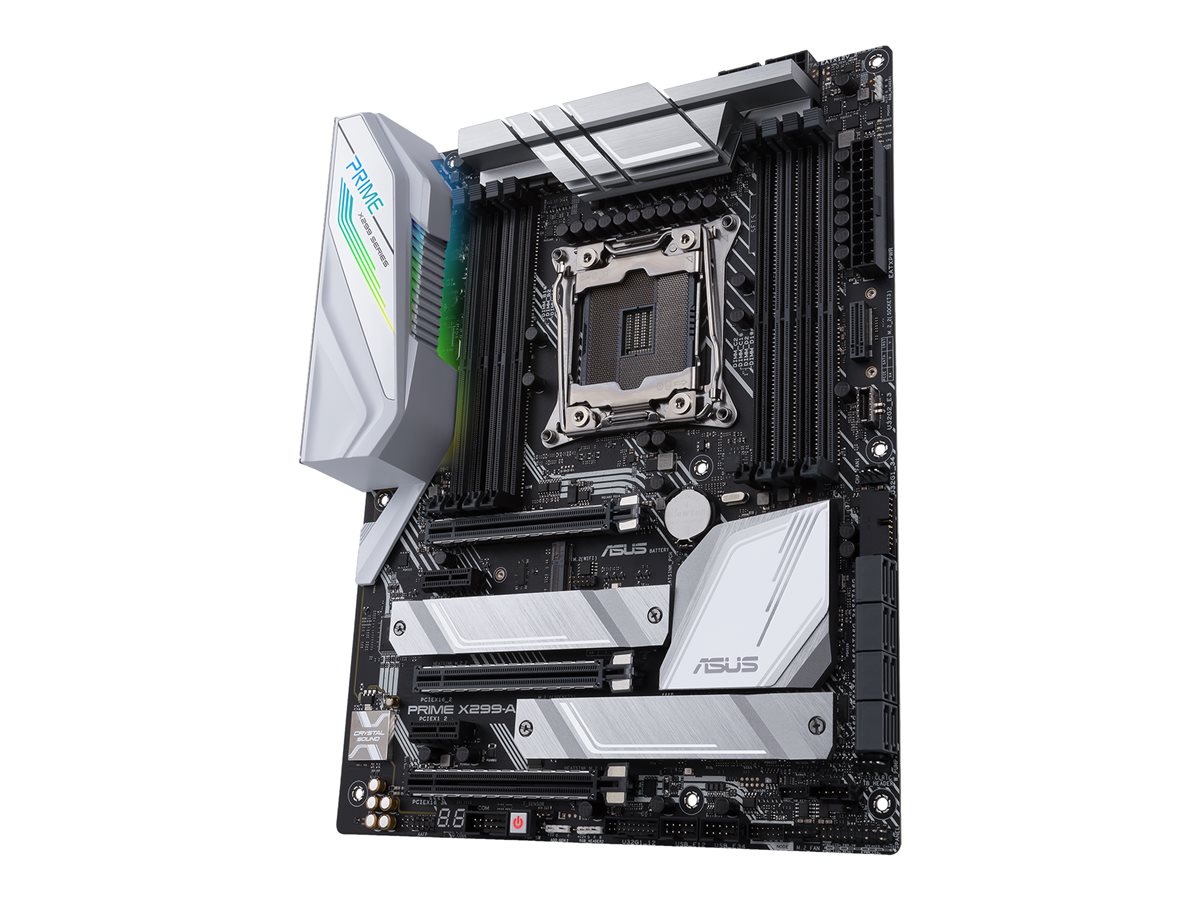

ASUS - ASUS PRIME X299-A II
Motherboard - ATX - LGA2066 Socket - X299 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - HD Audio (8-channel)
ASUS
PRIME X299-A II
N/A
0192876488591
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | ASUS PRIME X299-A II - motherboard - ATX - LGA2066 Socket - X299 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel X299 |
| Processor Socket | 1 x LGA2066 Socket |
| Compatible Processors | Core X |
| Max RAM Size | 256 GB |
| RAM Supported | 8 DIMM slots - DDR4, non-ECC, unbuffered |
| Storage Ports | 8 x SATA-600 (RAID), 3 x M.2 |
| USB / FireWire Ports | 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel X299 |
| Processor Socket | LGA2066 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core X |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (48-lane CPU (x16, x16/x16, x16/x16/x8 modes), 44-lane CPU (x16, x16/x16, x16/x16/x8 modes), 28-lane CPU (x16, x16/x8 modes)) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 2 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x TOSLINK |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB 3.2 Gen 2 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | 2 x M.2 screws, RGB (RGBW) LED strip extension cable, vertical M.2 bracket set, ASUS fan holder, RGB Addressable LED extension cable |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), ASUS Turbo Core App |
| Compliant Standards | Plug and Play |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALCS1220A |
| Compliant Standards | High Definition Audio, DTS:X Ultra |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, USB BIOS Flashback, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, ACPI 6.1 support, SMBIOS 3.1 support |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 3-way SLI Technology Support, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, anti-pop function, Turbo LAN, Dual Intelligent Processors 5, LANGuard, ASUS Overvoltage Protection, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Turbo Boost Technology 3.0, Intel Optane Memory Ready, ASUS 5X Protection III, Intel VROC support, pre-mounted I/O shield, Armoury Crate, ASUS Node, ProCool II Power Connector |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP) |
