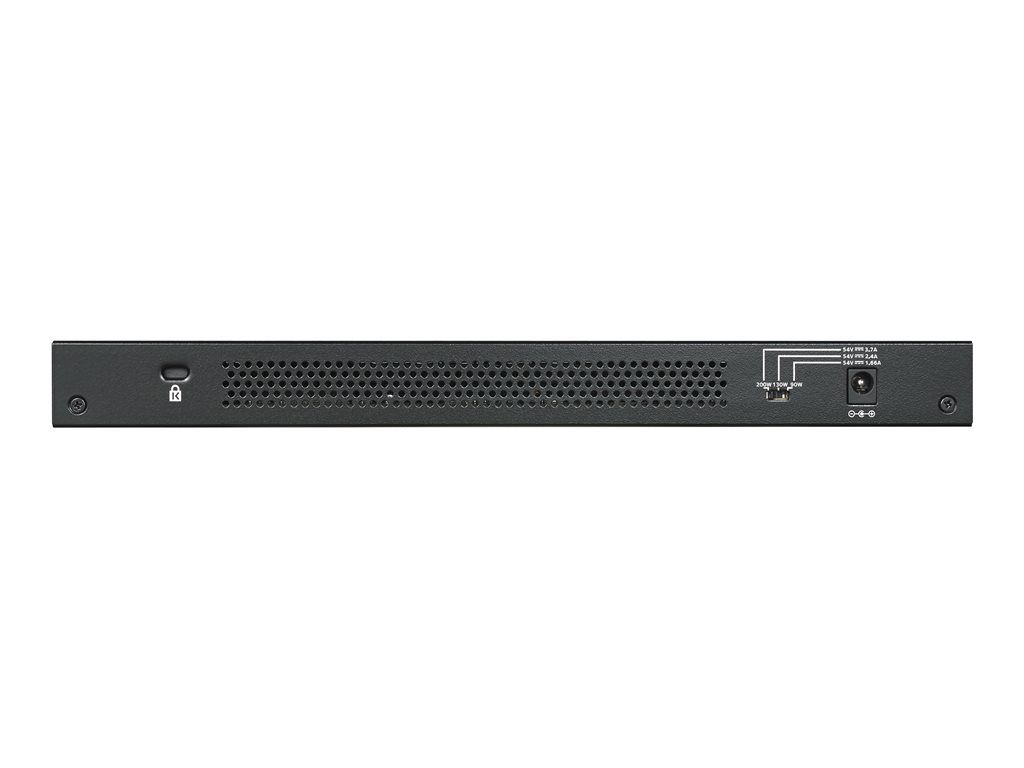

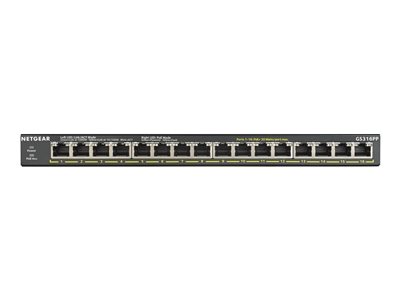

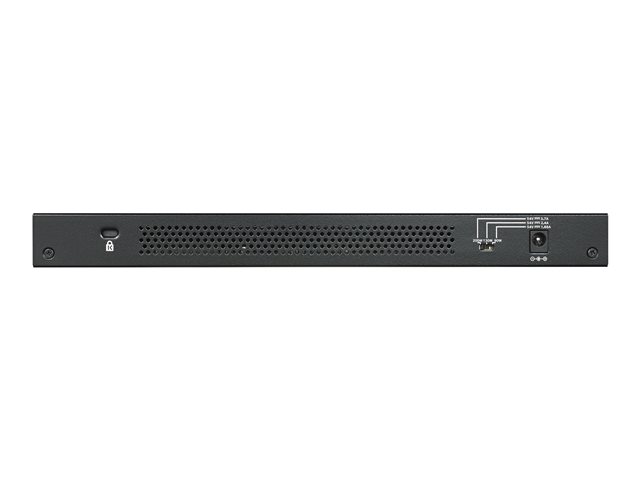

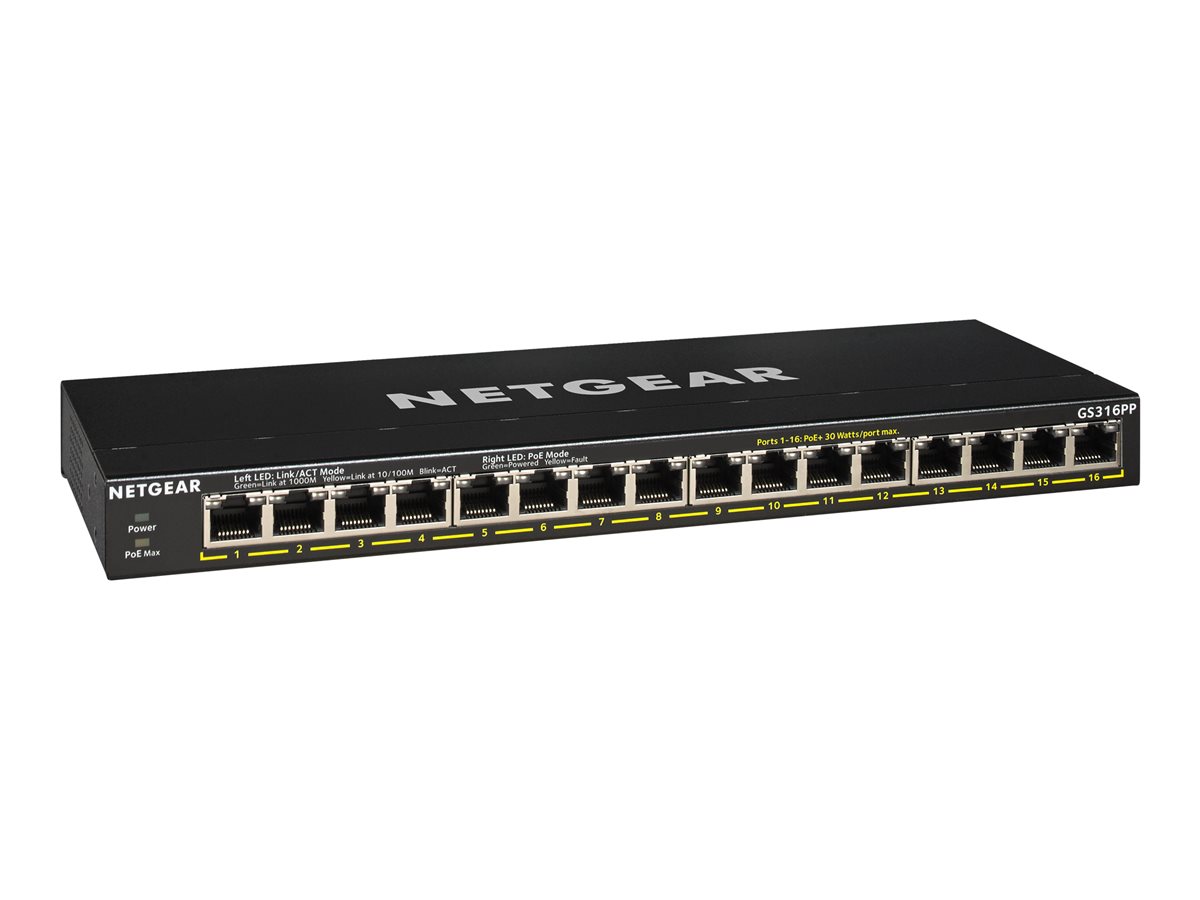

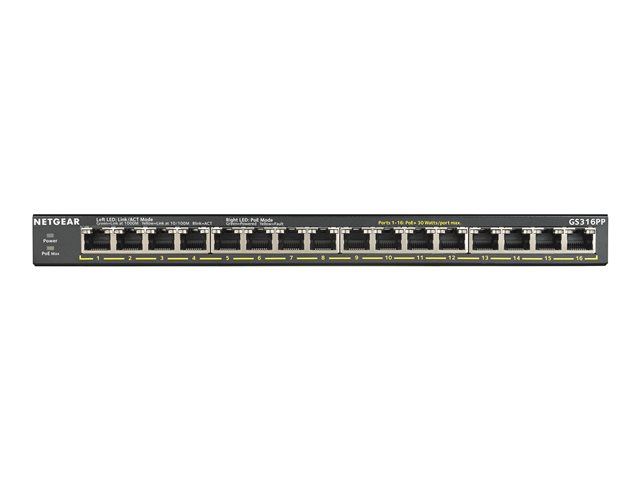

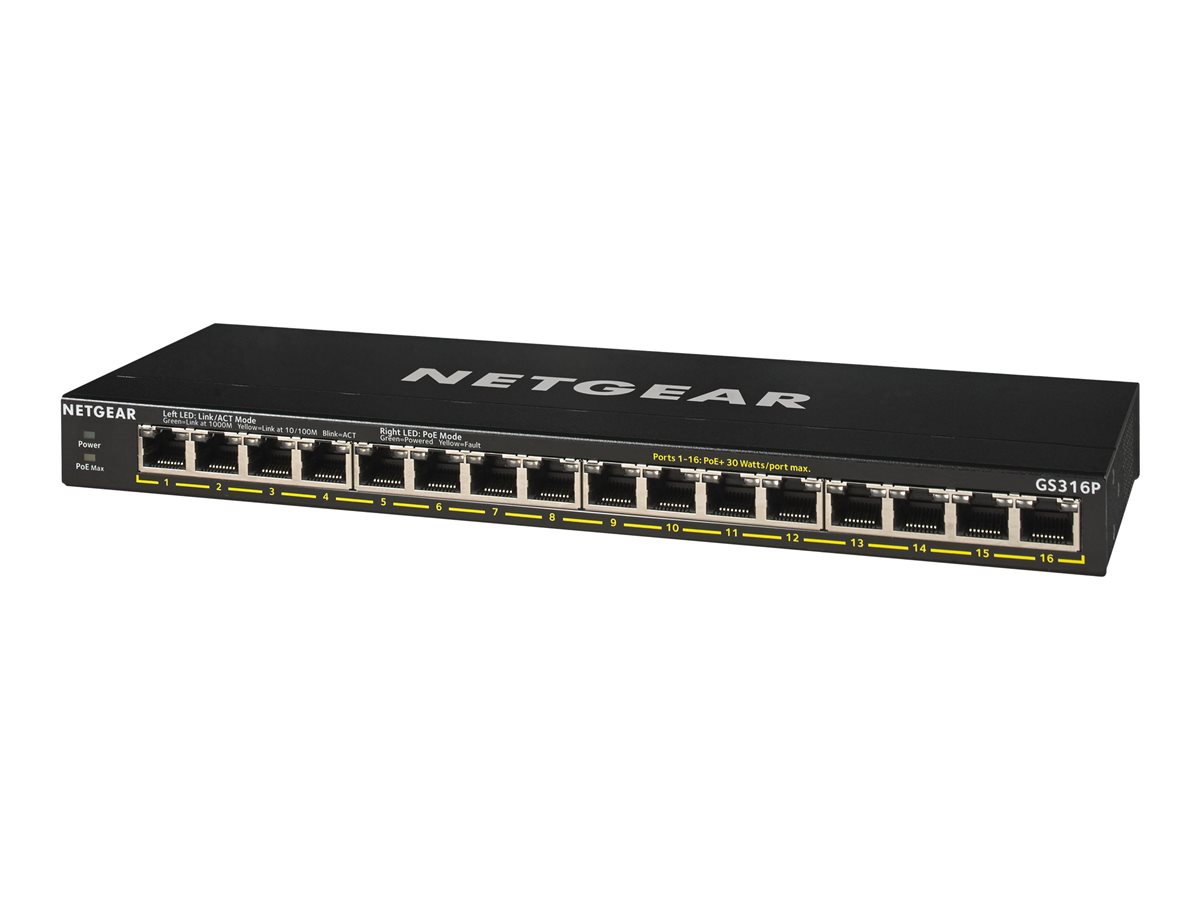

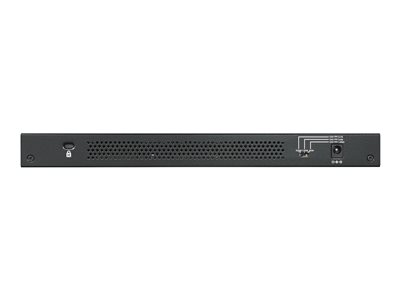

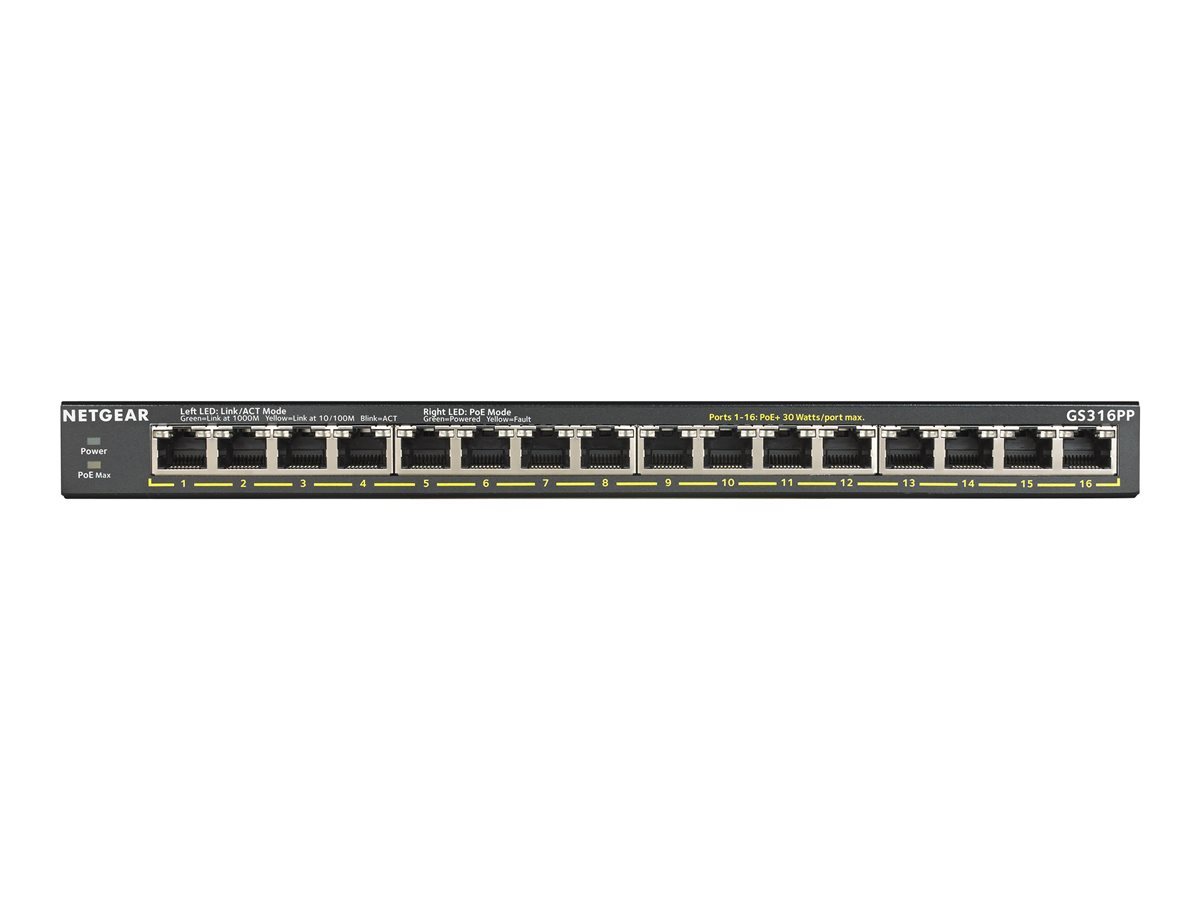

NETGEAR - NETGEAR GS316PP
Switch - unmanaged - 16 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (183 W)
NETGEAR
GS316PP-100NAS
N/A
0606449146899
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | NETGEAR GS316PP - switch - 16 ports - unmanaged |
| Device Type | Switch - 16 ports - unmanaged |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 183 W |
| Performance | Non-blocking bandwidth: 32 Gbps ¦ Packet buffer size: 1 MB ¦ Forwarding performance (64-byte packet size): 1448000 pps ¦ Latency (64-byte packets): 3.7 µs |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), DiffServ support, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet, CoS, SOHO, WRR |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Dimensions (WxDxH) | 11.3 in x 4 in x 1.1 in |
| Weight | 31.04 oz |
| Localization | North America |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 183 W |
| Performance | Non-blocking bandwidth: 32 Gbps ¦ Packet buffer size: 1 MB ¦ Forwarding performance (64-byte packet size): 1448000 pps ¦ Latency (64-byte packets): 3.7 µs |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), DiffServ support, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet, CoS, SOHO, WRR |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, PoE, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 30 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - phone consulting - 90 days |
| Miscellaneous | |
| Included Accessories | Wall mounting kit |
| Rack Mounting Kit | Included |
| MTBF | 2,362,192 hours |
| Compliant Standards | Plug and Play, VCCI, CB, IC Class A, FCC Part 15 A, LVD, KC, RCM |
| Localization | North America |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Power Provided | 200 Watt |
| Power Consumption Operational | 195.9 Watt |
| Power Consumption Stand by | 2.67 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 11.3 in |
| Depth | 4 in |
| Height | 1.1 in |
| Weight | 31.04 oz |
