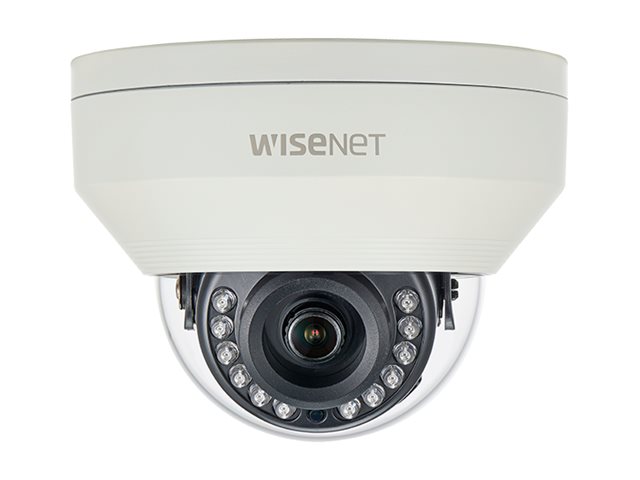

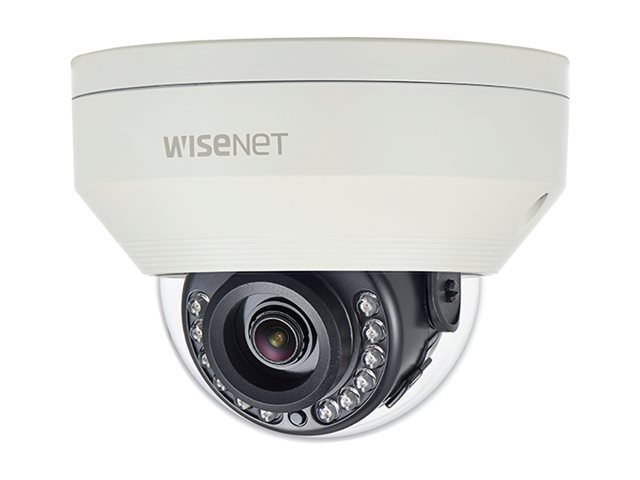

Hanwha Vision - Hanwha Vision WiseNet HD+ HCV-7010RA
Surveillance camera - dome - outdoor - vandal-proof - color (Day&Night) - 4 MP - 2560 x 1440 - fixed focal - composite, AHD - DC 12 V
Hanwha Vision
HCV-7010RA
N/A
8801089184863
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision WiseNet HD+ HCV-7010RA - surveillance camera - dome |
| Device Type | Surveillance camera - fixed - dome - outdoor - vandal-proof |
| Dimensions (WxDxH) | 4.7 in x 4.7 in x 3.6 in |
| Weight | 17.99 oz |
| Color | Ivory |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2560 x 1440 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/3" - 4 MP |
| Minimum Illumination | 0.26 lux - color - F1.8 ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Focus Adjustment | (min distance 19.7 in) |
| Lens Iris | F/1.8 |
| Panning Range (degree) | 0 to 350 |
| Tilting Range (degree) | 0 to 67 |
| Interfaces | Composite video, AHD |
| Voltage | DC 12 V |
| Features | Backlight Compensation (BLC), progressive scanning, Motion Detection Technology, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), auto gain control, auto white balance, 2D Digital Noise Reduction Technology, aluminum housing |
| Environmental Parameters (operating) | -22 °F - 131 °F; 0 - 90% relative humidity |
| General | |
| Device Type | Surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.7 in |
| Depth | 4.7 in |
| Height | 3.6 in |
| Weight | 17.99 oz |
| Expansion / Connectivity | |
| Ports | AHD - BNC ¦ Composite video |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, cULus, IK10, IP66 |
| Color | Ivory |
| Power | |
| Power Requirements | DC 12 V |
| Power Device | 5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal-proof |
| Max Digital Video Resolution | 2560 x 1440 |
| Motion Detection | Yes |
| Exposure Range | 1/30 sec - 1/12000 sec |
| Minimum Illumination | 0.26 lux - color - F1.8 ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Video Capture | 2560 x 1440 @ 30 fps |
| Features | Backlight Compensation (BLC), progressive scanning, Motion Detection Technology, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), auto gain control, auto white balance, 2D Digital Noise Reduction Technology, aluminum housing |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.8 |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 107.48 |
| Vertical Field of View (degree) | 59.67 |
| Diagonal Field of View (degree) | 122.01 |
| Image Sensor | |
| Type | 4 MP CMOS 1/3" |
| Total Pixels | 2720 x 1536 |
| Effective Pixels | 2688 x 1520 |
| Interfaces | |
| Video | Composite video, AHD |
| Panning | |
| Range (degree) | 0 to 350 |
| Tilting | |
| Range (degree) | 0 to 67 |
