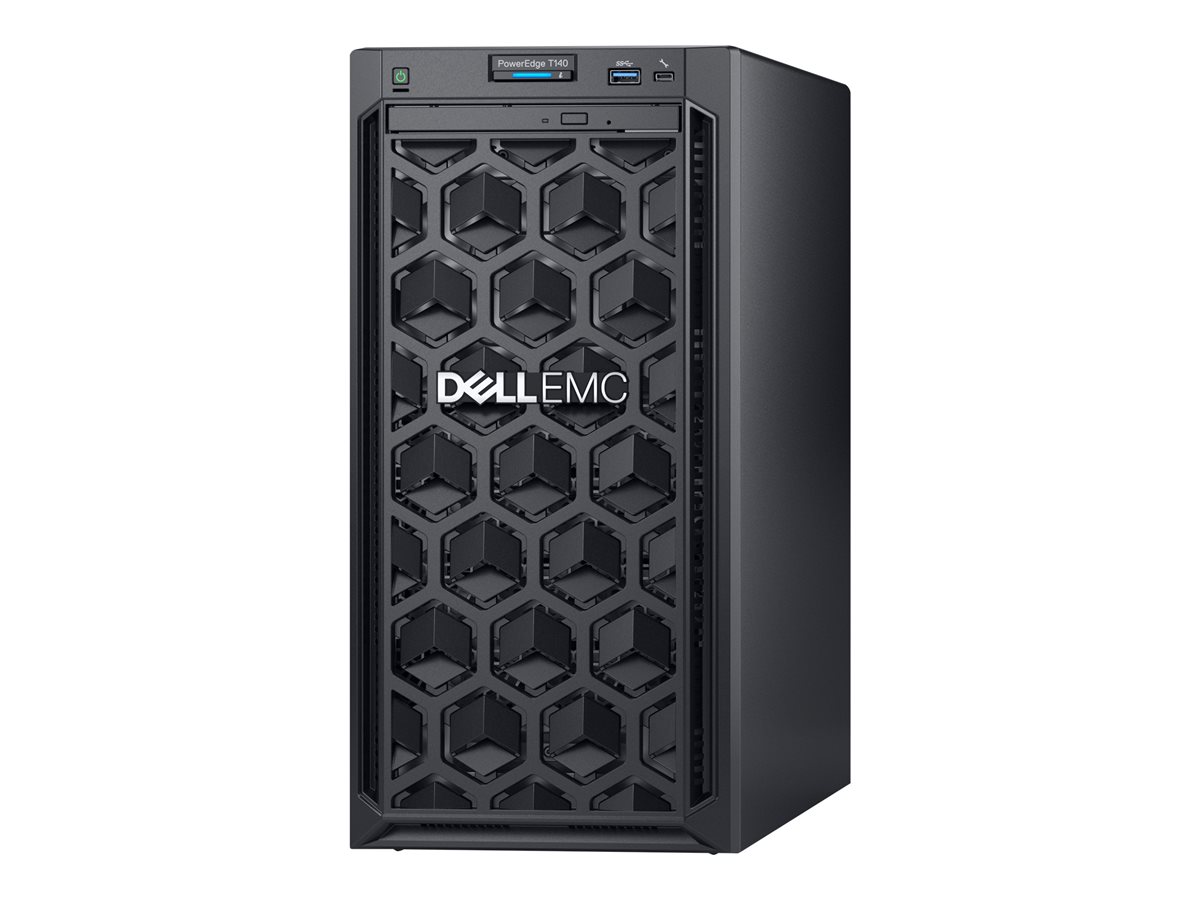

Dell - Dell PowerEdge T140
Server - MT 1-way - 1 x Xeon E-2224 / up to 4.6 GHz - RAM 8 GB - HDD 1 TB - G200eR2 - Gigabit Ethernet - no OS - monitor: none - BTP - Dell Smart Value - with 1-Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5x10 NBD On-site
Dell
DY6VT
N/A
0884116358541
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Dell PowerEdge T140 - MT Xeon E-2224 3.4 GHz - 8 GB - HDD 1 TB |
| Type | Server - MT |
| Bundled Services | 1-Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5x10 NBD On-site |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon E-2224 / 3.4 GHz (up to 4.6 GHz, (Quad-Core) |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (Dell PERC H330) |
| Hard Drive | HDD 1 TB - SATA 6Gb/s - 7200 rpm |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200eR2 |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | No operating system |
| Software Included | Dell OpenManage Enterprise Advanced |
| Weight | 26.1 lbs |
| Pricing Type | Build To Plan (BTP) |
| Manufacturer Selling Program | Dell Smart Value |
| Carbon Footprint | 4480 kg carbon emissions |
| General | |
| Type | Server |
| Bundled Services | 1-Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5x10 NBD On-site |
| Product Form Factor | MT |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Expansion / Connectivity | |
| Bays | 4 (total) / 3 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x 5.25" Slim Line |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height |
| Interfaces | 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 3 x USB 3.0 (1 front, 2 rear) ¦ 1 x VGA ¦ 1 x serial ¦ 1 x management (NIC) (iDRAC dedicated port) ¦ 1 x management - micro-USB (1 in front) (iDRAC Direct port) |
| Miscellaneous | |
| Pricing Type | Build To Plan (BTP) |
| Manufacturer Selling Program | Dell Smart Value |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Interface (Bus) Type | LAN-on-motherboard (LOM) |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Dell Remote Access Controller 9 Enterprise (iDRAC9) |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 365 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 80% |
| Storage Controller | |
| Type | 1 x RAID |
| Storage Controller Name | Dell PERC H330 |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200eR2 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Dell OpenManage Enterprise Advanced |
| Hard Drive | |
| Type | HDD |
| Capacity | 1 x 1 TB |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Dimensions & Weight | |
| Weight | 26.1 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E-2224 |
| Clock Speed | 3.4 GHz |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Sustainability Information | |
| Carbon Footprint | 4480 kg carbon emissions |
| Total CF/unit Standard Deviation (kg CO2e) | 4160 |
| Manufacturing (kg CO2e) | 1154.02 |
| Logistics (kg CO2e) | 34.3 |
| Use (kg CO2e) | 3280 |
| EOL (kg CO2e) | 8.42 |
| Total Carbon w/o Use Phase (kg CO2e) | 1200 |
| PAIA Version | 1.2.1, 2019 |
