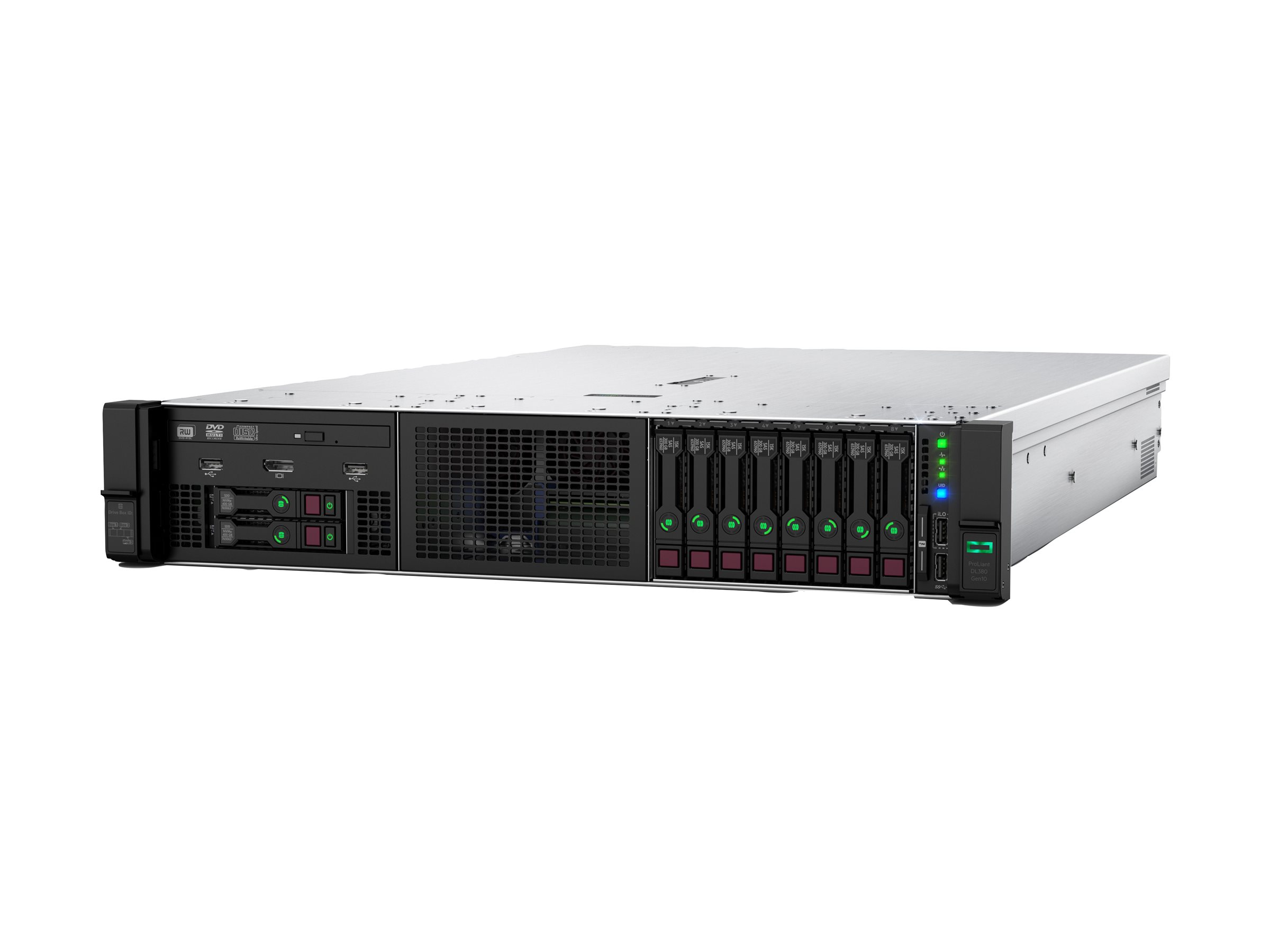

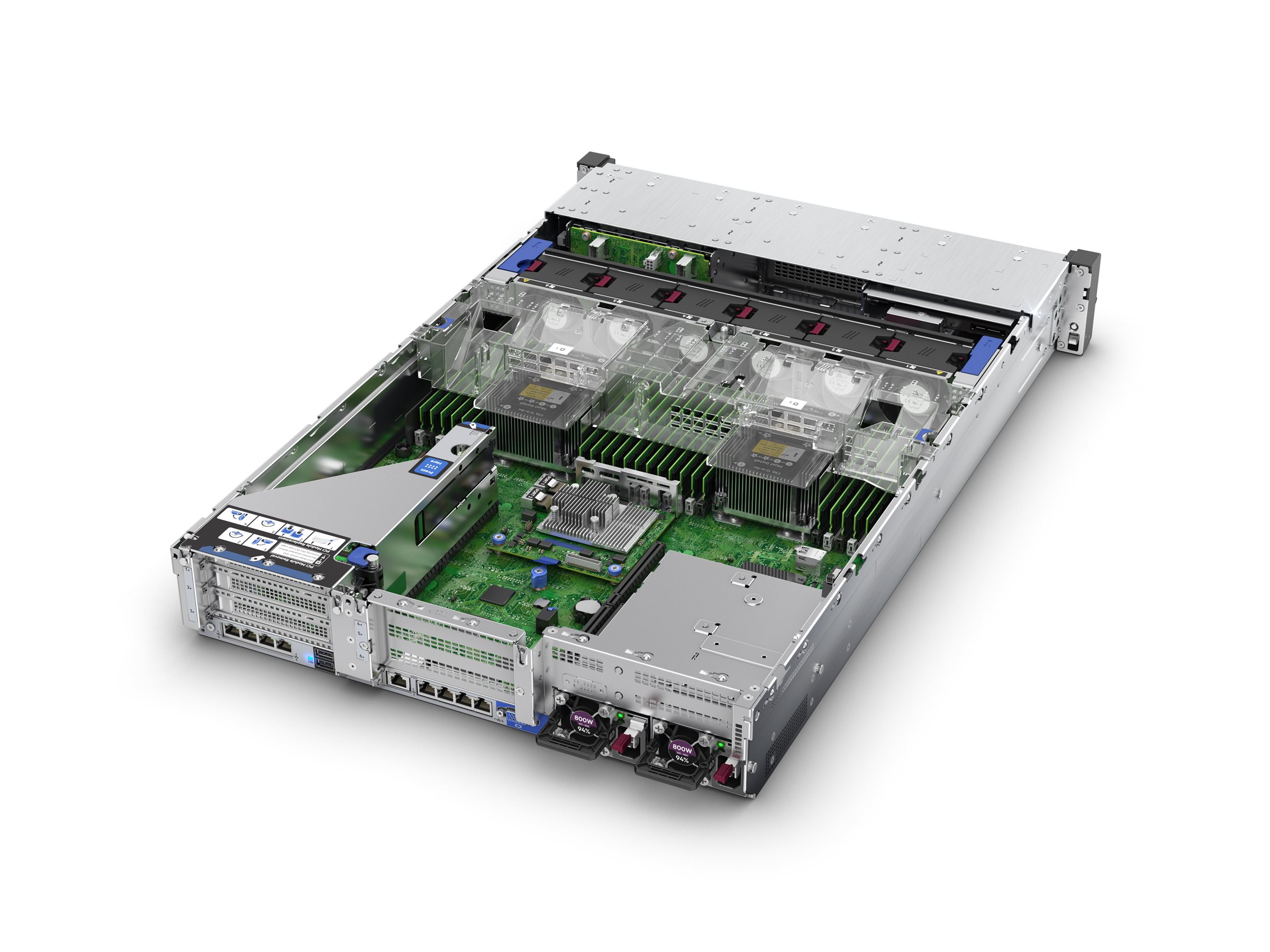

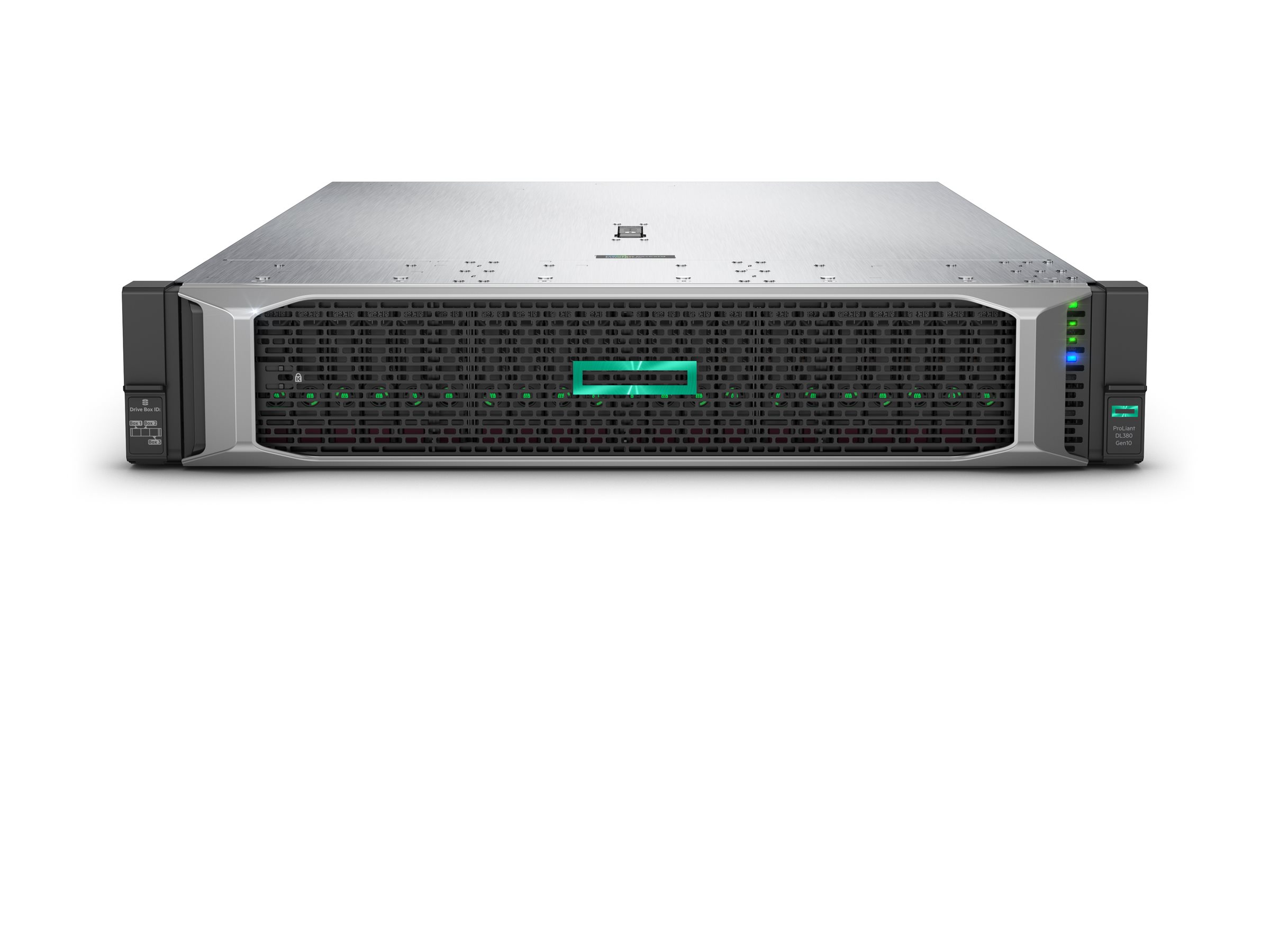

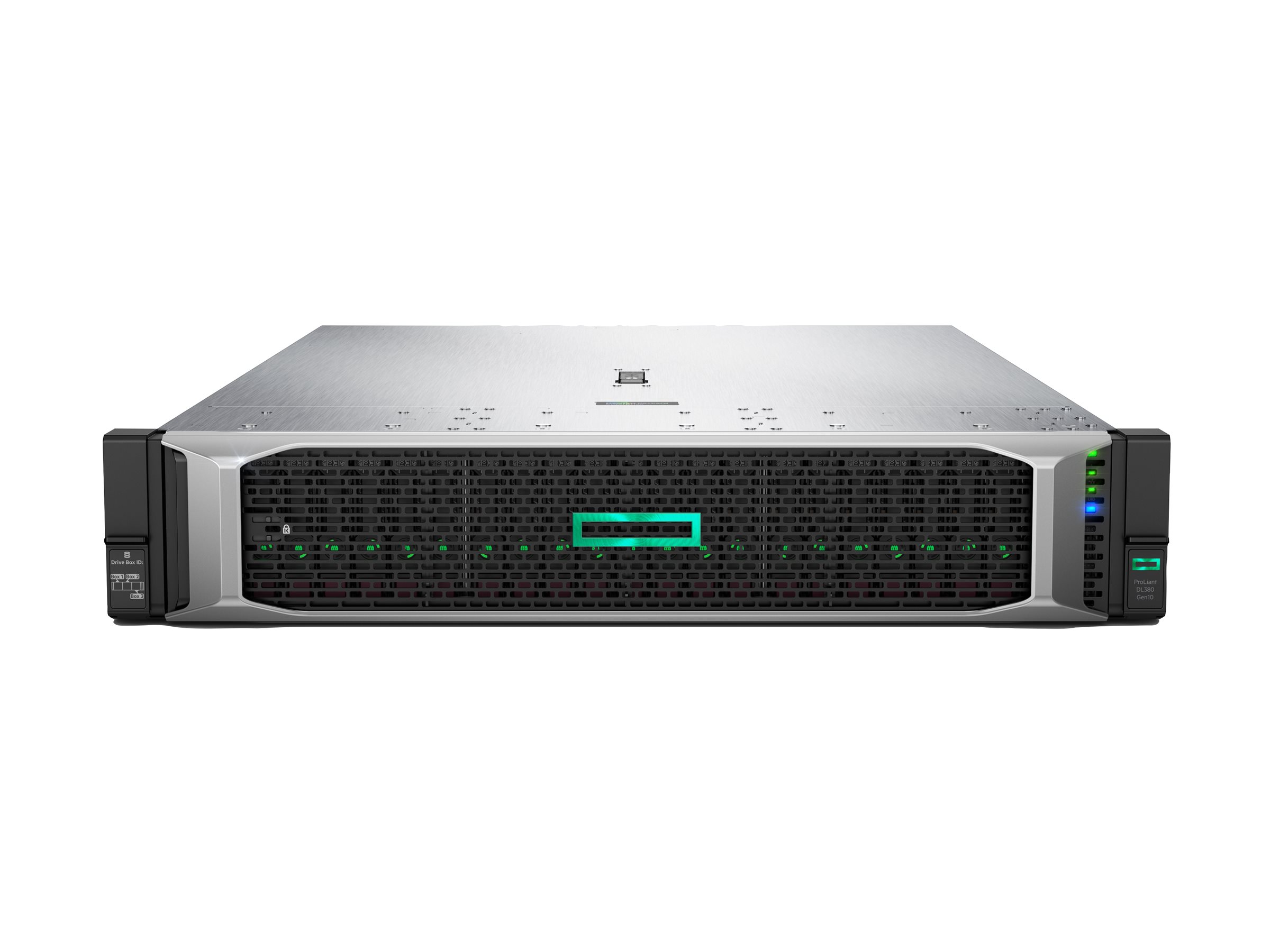

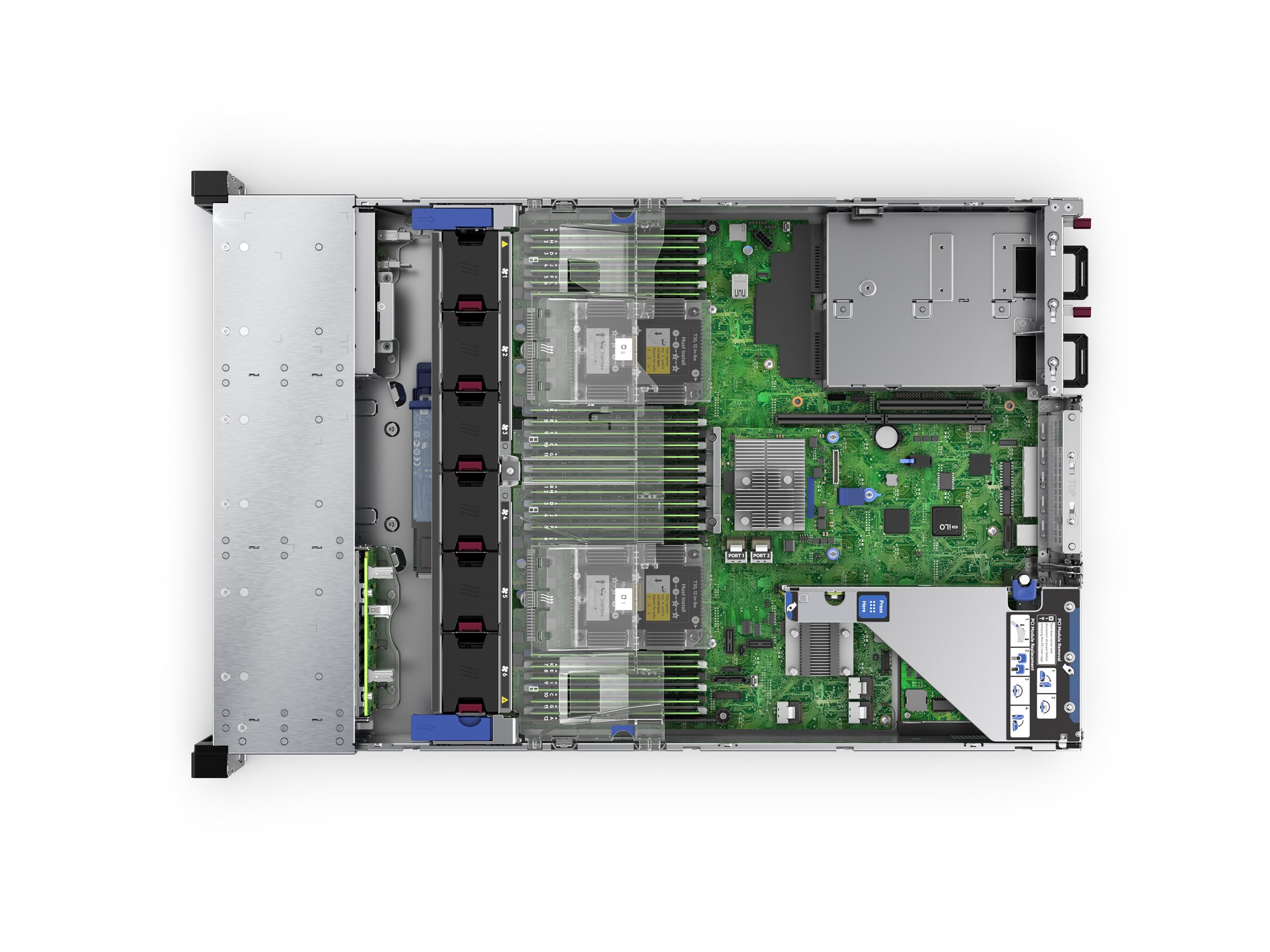

Hewlett Packard Enterprise - HPE ProLiant DL380 Gen10 SMB Networking Choice
Server - rack-mountable 2U - 2-way - 1 x Xeon Silver 4210R / up to 3.2 GHz - RAM 32 GB - SATA/SAS - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - monitor: none
Hewlett Packard Enterprise
P24840-B21
N/A
0190017446356
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL380 Gen10 SMB Networking Choice - rack-mountable Xeon Silver 4210R 2.4 GHz - 32 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Localization | Region: Worldwide (excluding China, Japan) |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Silver 4210R / 2.4 GHz (up to 3.2 GHz, (10-core) |
| Processor Socket | FCLGA3647 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Cache Memory | 13.75 MB L3 cache |
| Cache Per Processor | 13.75 MB |
| RAM | 32 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array P408i-a) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.5 in x 28.8 in x 3.4 in |
| Weight | 32.54 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 24 |
| Localization | Region: Worldwide (excluding China, Japan) |
| Expansion / Connectivity | |
| Bays | 24 (total) / 24 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height |
| Interfaces | 1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x HPE iLO - RJ-45 ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x VGA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | Cable management arm, 6 performance fans, SFF Easy install rails |
| Compliant Standards | AES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
| RAM | |
| Installed Size | 32 GB (installed) / 1.5 TB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 23 (empty) |
| Features | Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC ¦ 6 TB - HPE Persistent Memory - Optane DC Persistent |
| Networking | |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 5 |
| Features | Wake on LAN (WoL), ACPI support, PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | HPE Smart Array P408i-a |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Buffer Size | 2 GB |
| Cache Memory | |
| Installed Size | L3 cache - 13.75 MB |
| Cache Per Processor | 13.75 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 28.8 in |
| Height | 3.4 in |
| Weight | 32.54 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon Silver 4210R |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| CPU Socket | FCLGA3647 Socket |
| Chipset Type | Intel C621 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
