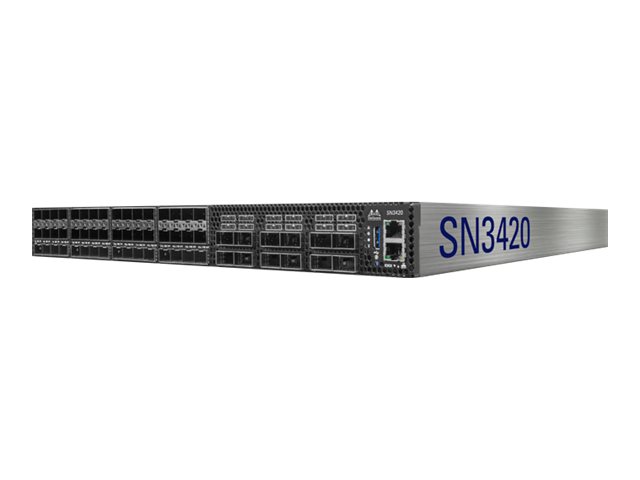

NVIDIA - Mellanox Spectrum-2 MSN3420-CB2FC
Switch - L3 - managed - 48 x 25 Gigabit SFP28 + 12 x 100 Gigabit QSFP28 - back to front airflow - rack-mountable
NVIDIA
MSN3420-CB2FC
N/A
7290108484410
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Mellanox Spectrum-2 MSN3420-CB2FC - switch - 60 ports - managed - rack-mountable |
| Device Type | Switch - 60 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 48 x 25 Gigabit SFP28 + 12 x 100 Gigabit QSFP28 |
| Performance | Throughput: 4.8 Tbps ¦ Latency: 425 ns ¦ Packets per second: 3.58 Bpps |
| Capacity | Packet buffer size: 42 MB |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | BGP, VRRP, OSPFv2, static IPv4 routing |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, CLI |
| Features | Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, non blocking ports, hot swappable 3 fans, PFC |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 16.9 in 1.7 in |
| General | |
| Device Type | Switch - 60 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 48 x 25 Gigabit SFP28 + 12 x 100 Gigabit QSFP28 |
| Performance | Throughput: 4.8 Tbps ¦ Latency: 425 ns ¦ Packets per second: 3.58 Bpps |
| Capacity | Packet buffer size: 42 MB |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | BGP, VRRP, OSPFv2, static IPv4 routing |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, CLI |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP |
| Features | Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, non blocking ports, hot swappable 3 fans, PFC |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| Built-in Devices | 32 GB SSD |
| Expansion / Connectivity | |
| Interfaces | 48 x 25Gbit LAN SFP28 ¦ 12 x 100Gbit LAN QSFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x USB ¦ 1 x serial RJ-45 |
| Miscellaneous | |
| Included Accessories | Rack rails kit |
| Compliant Standards | VCCI, CB, FCC, ICES, cTUVus, RCM |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Cumulus Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 16.9 in |
| Height | 1.7 in |
