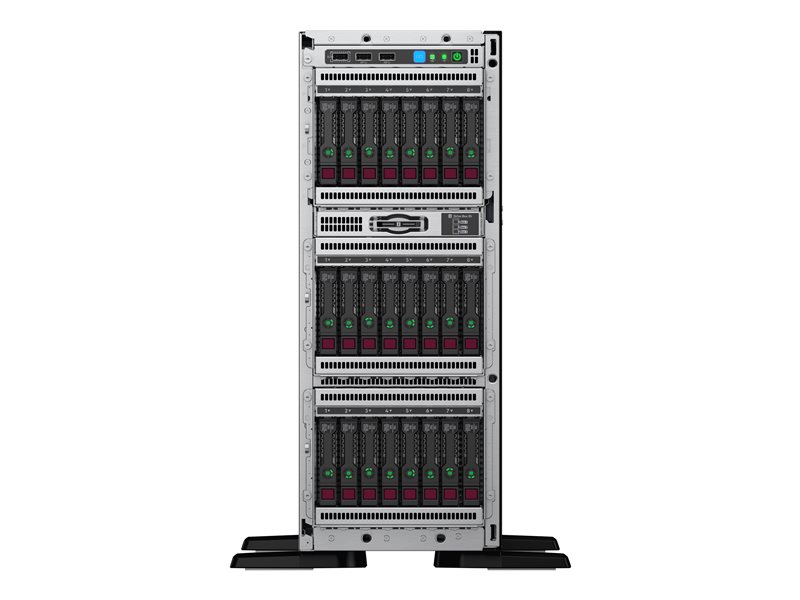

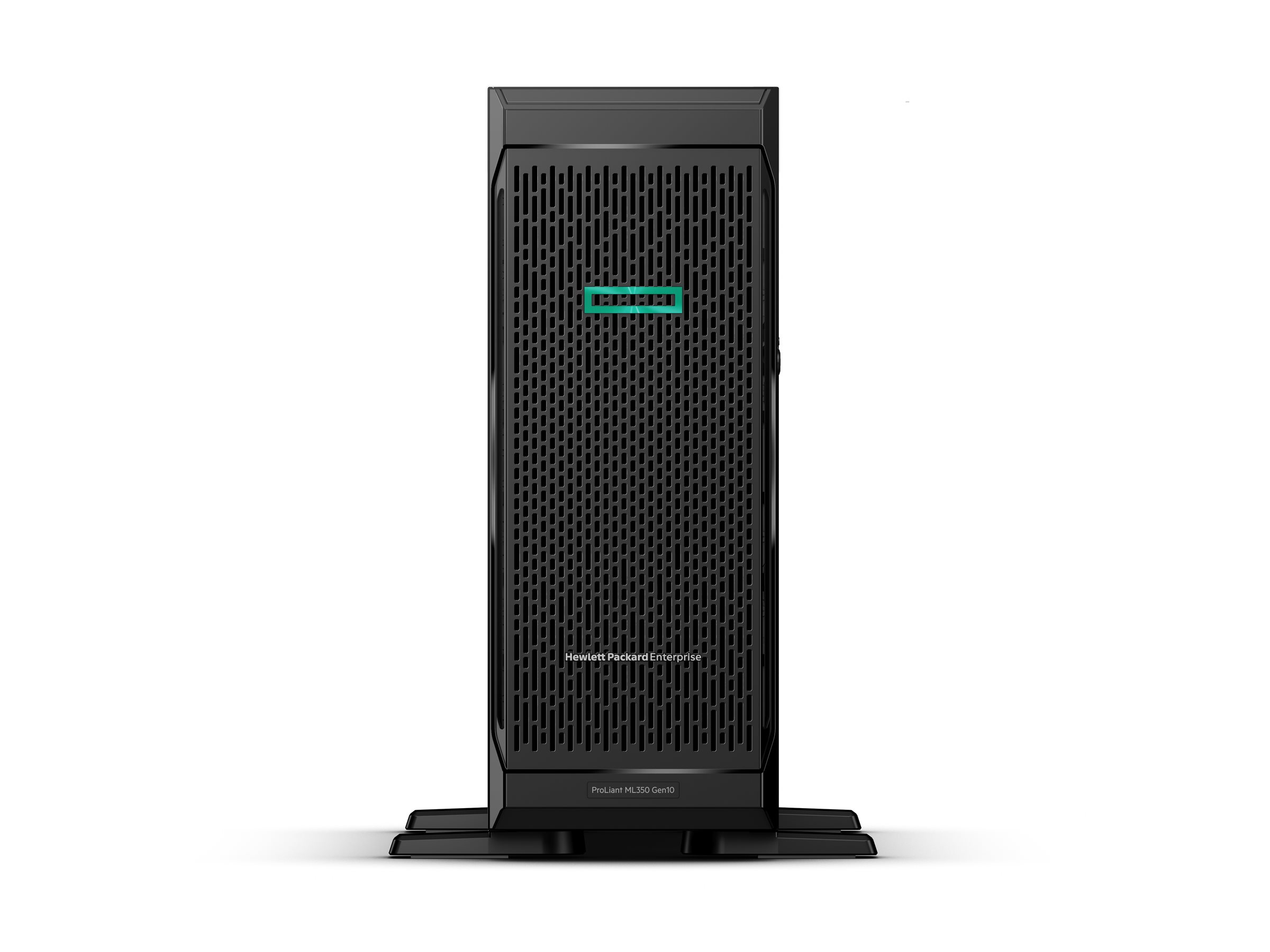

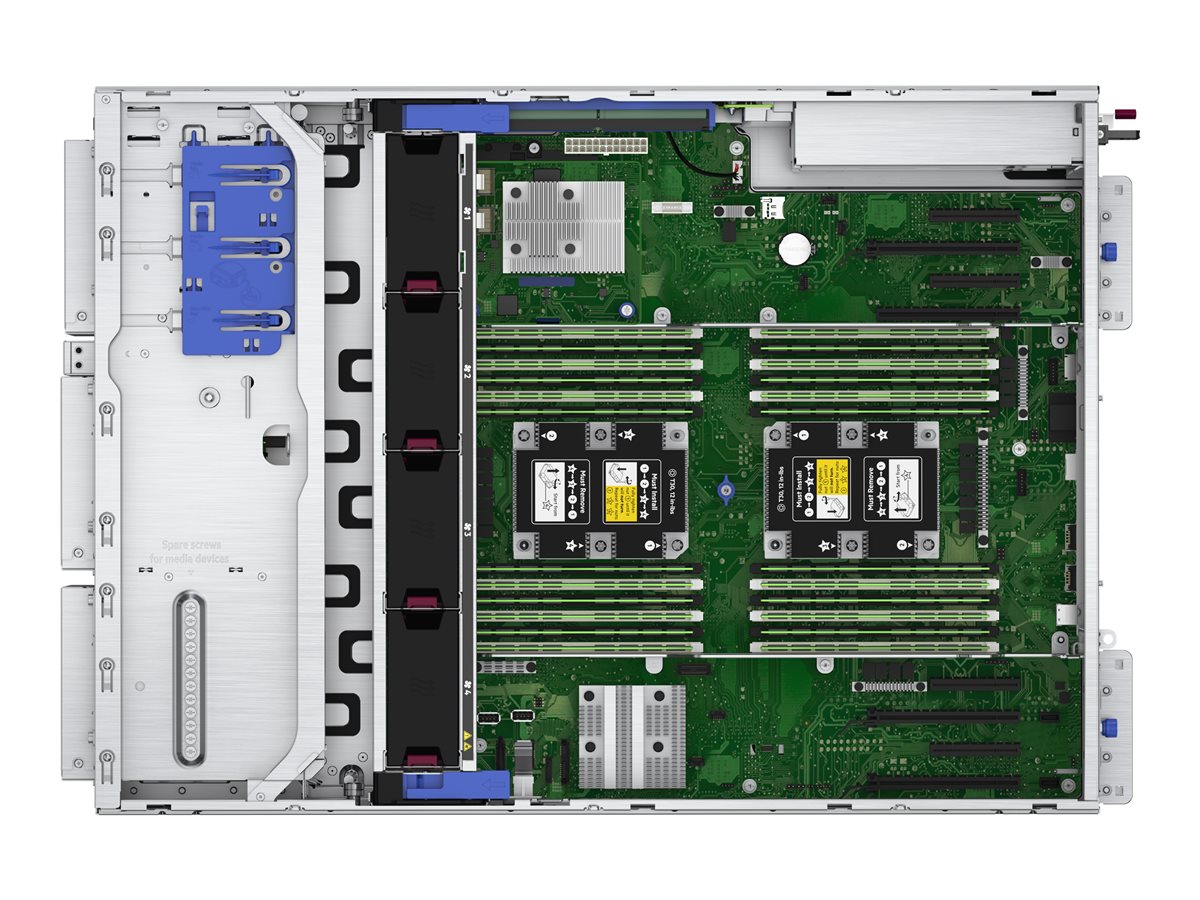

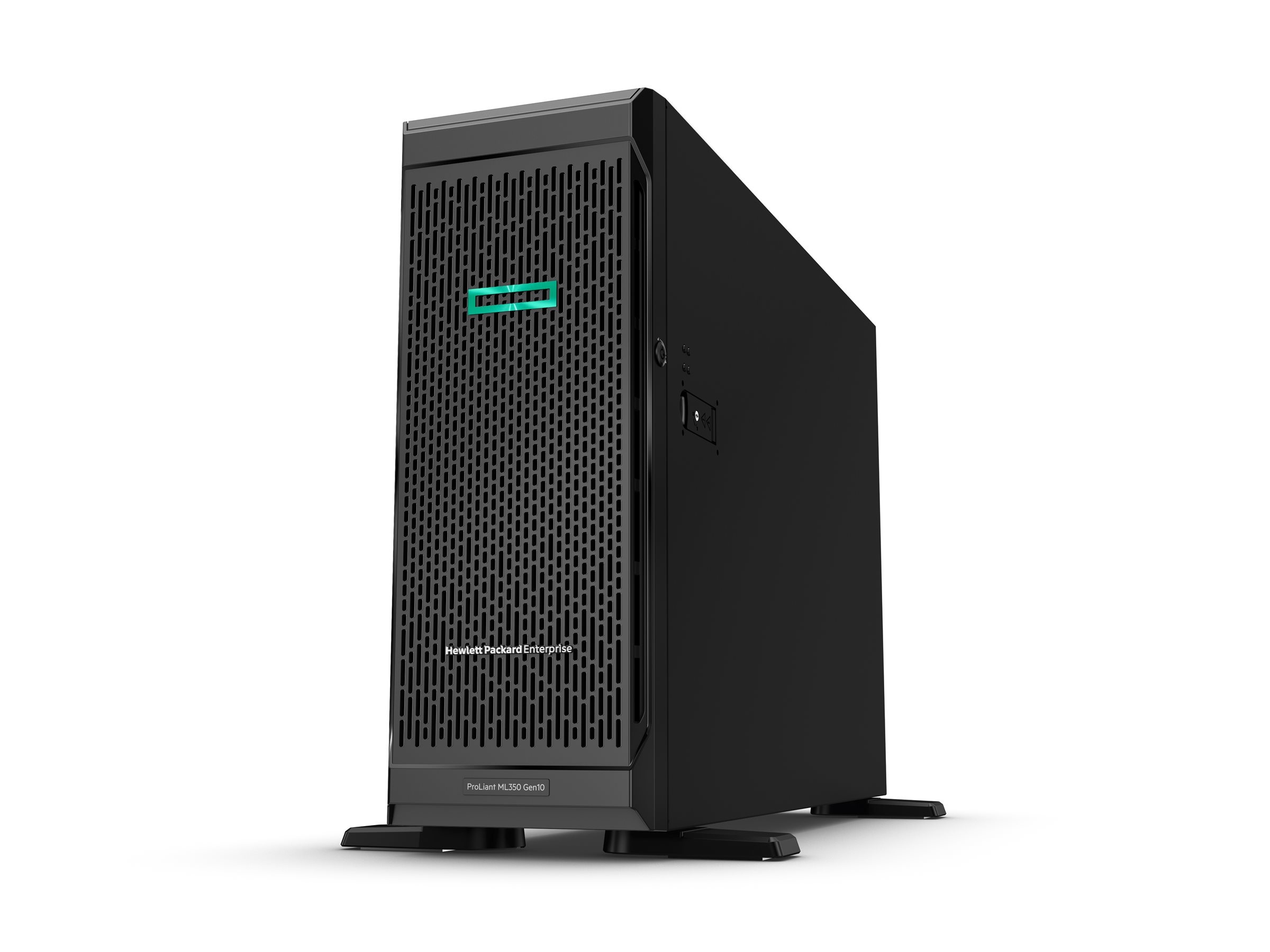

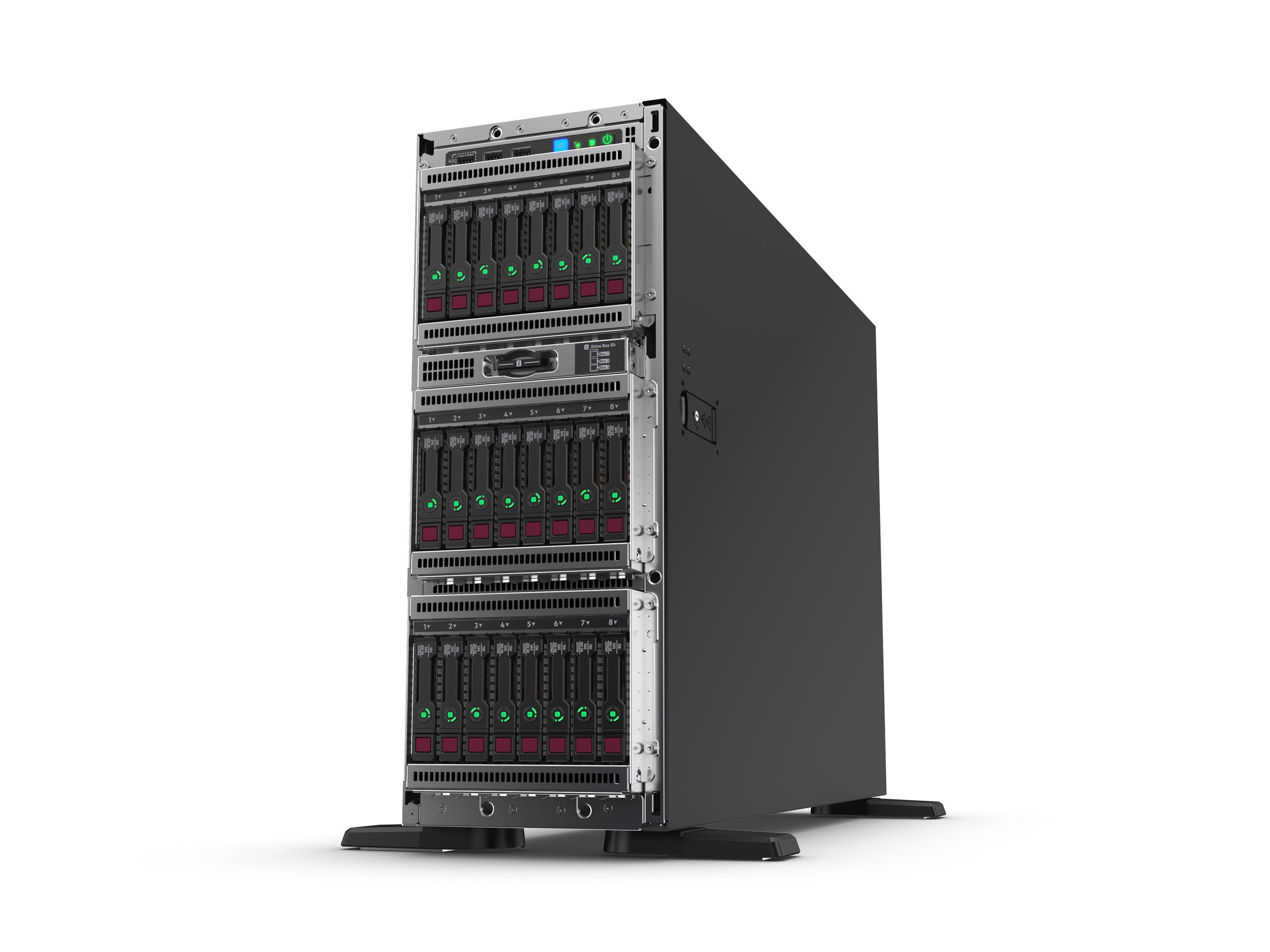

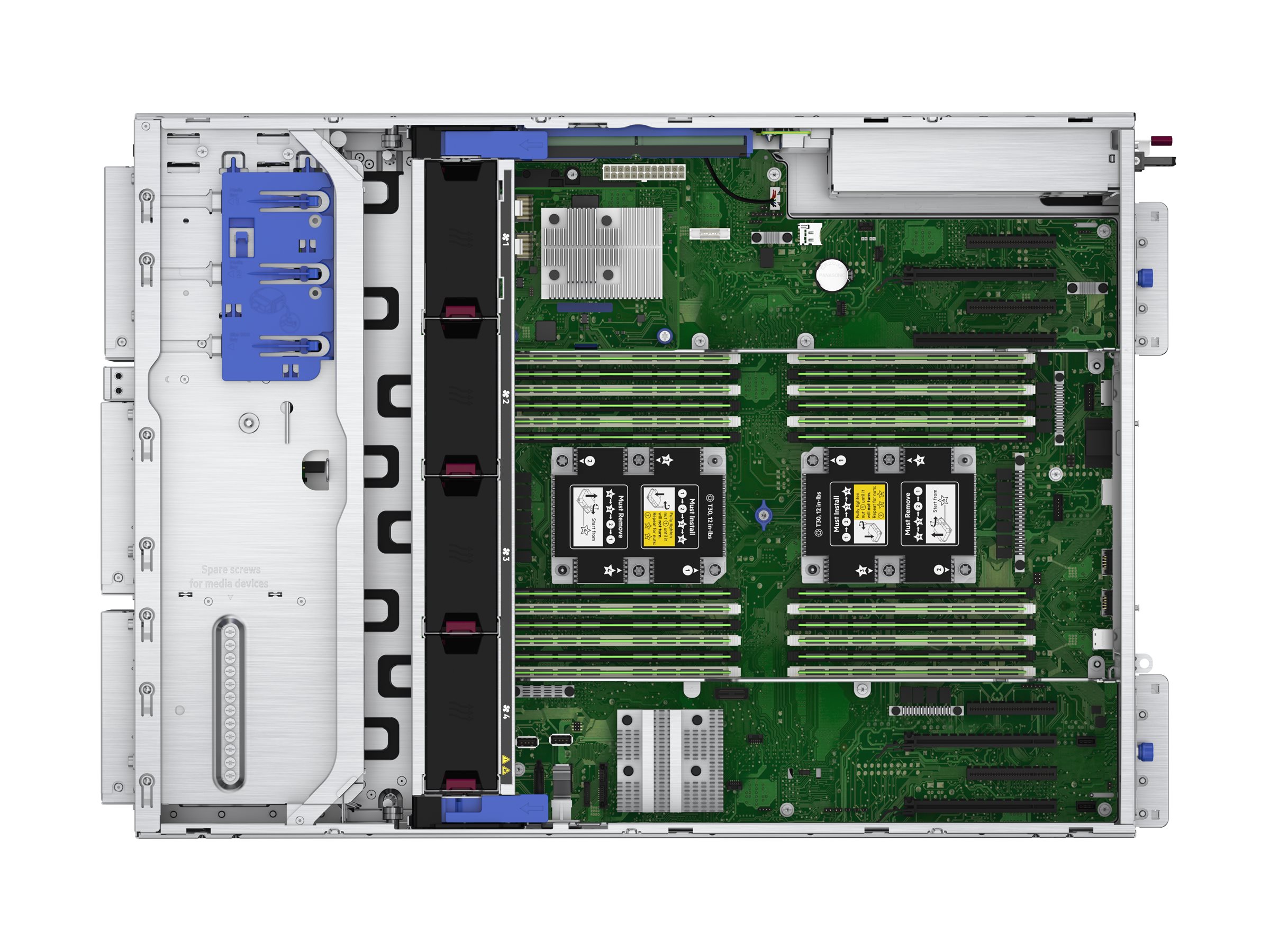

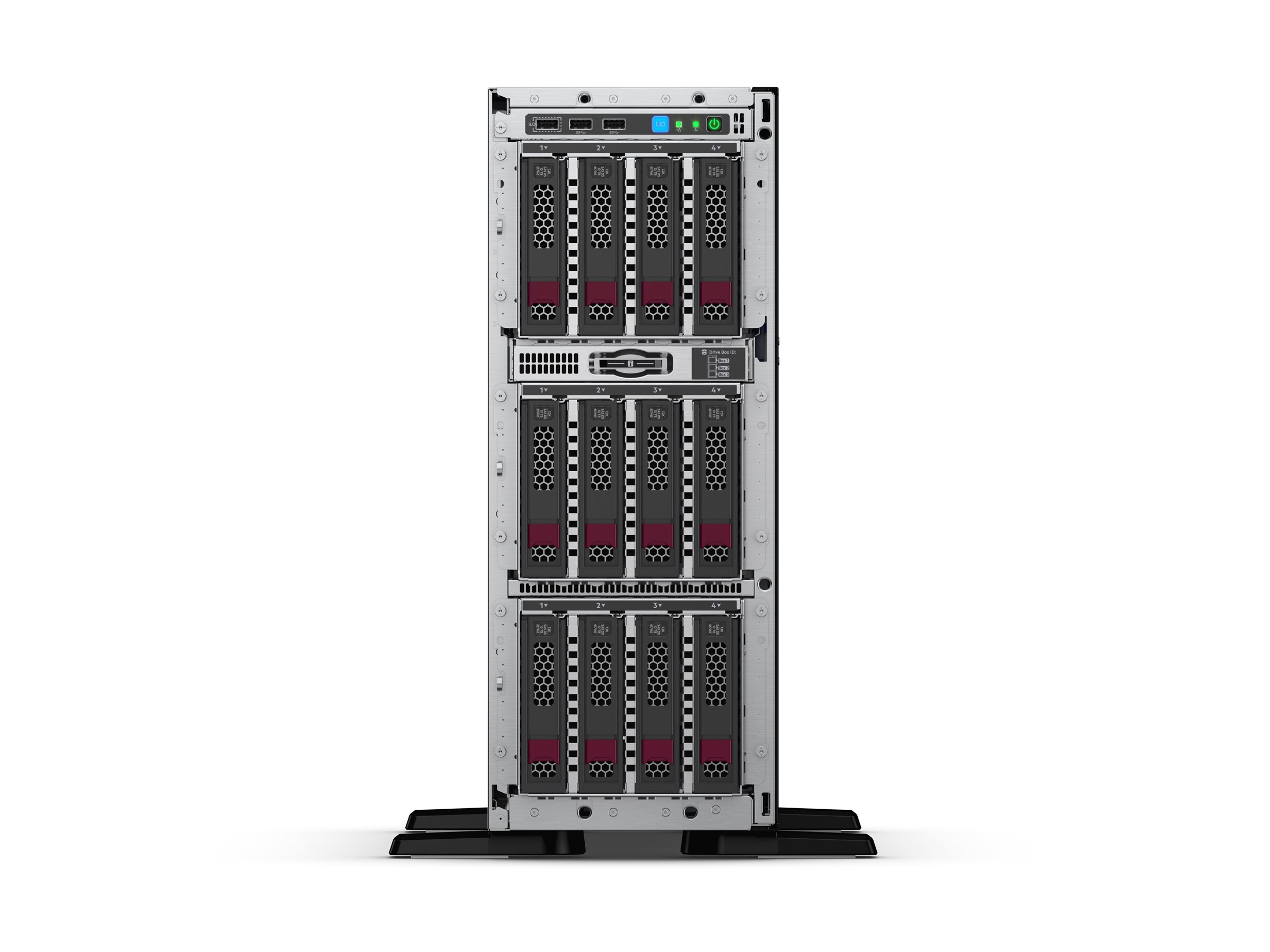

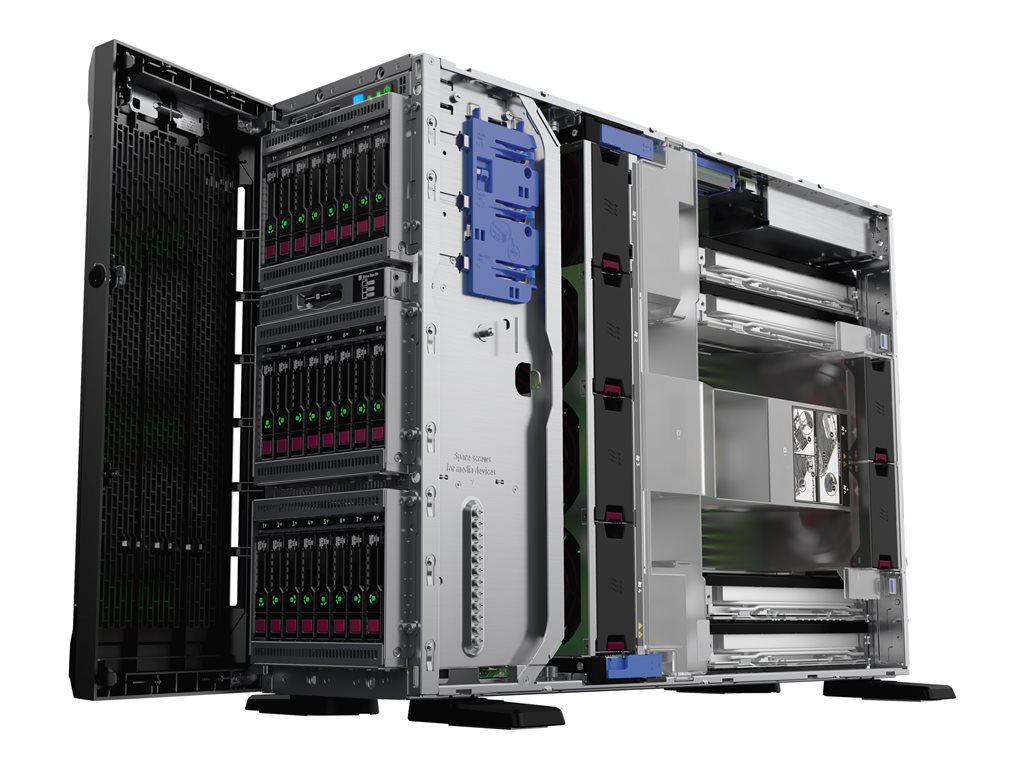

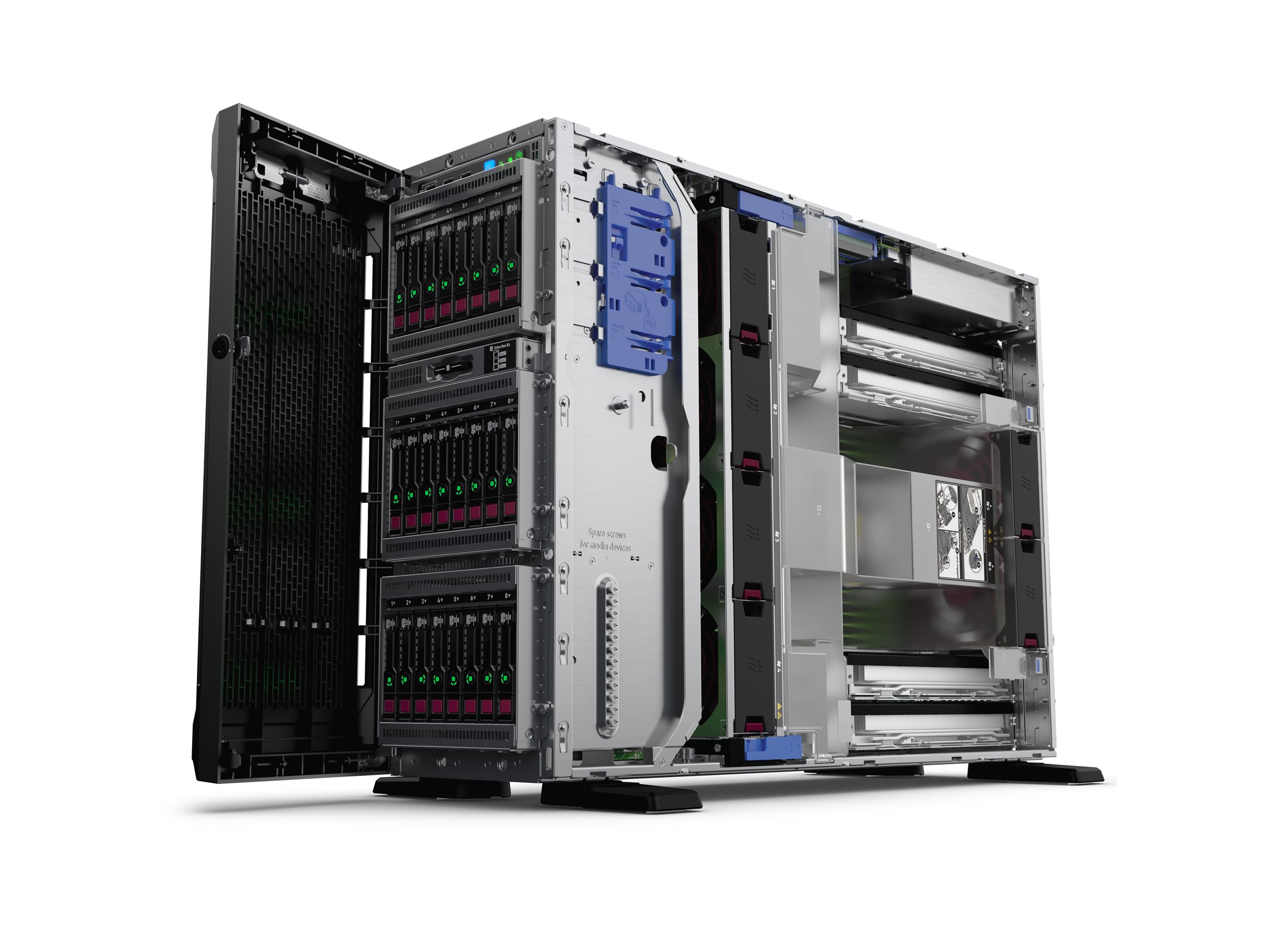

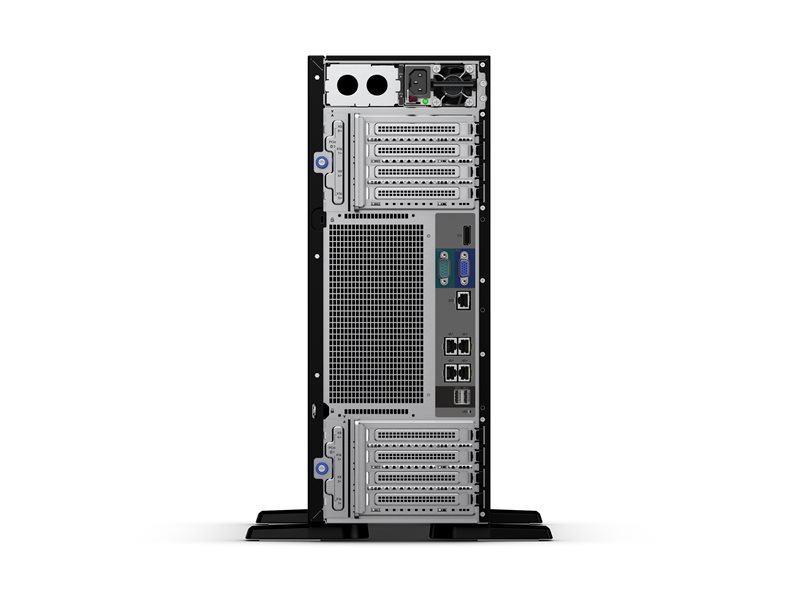

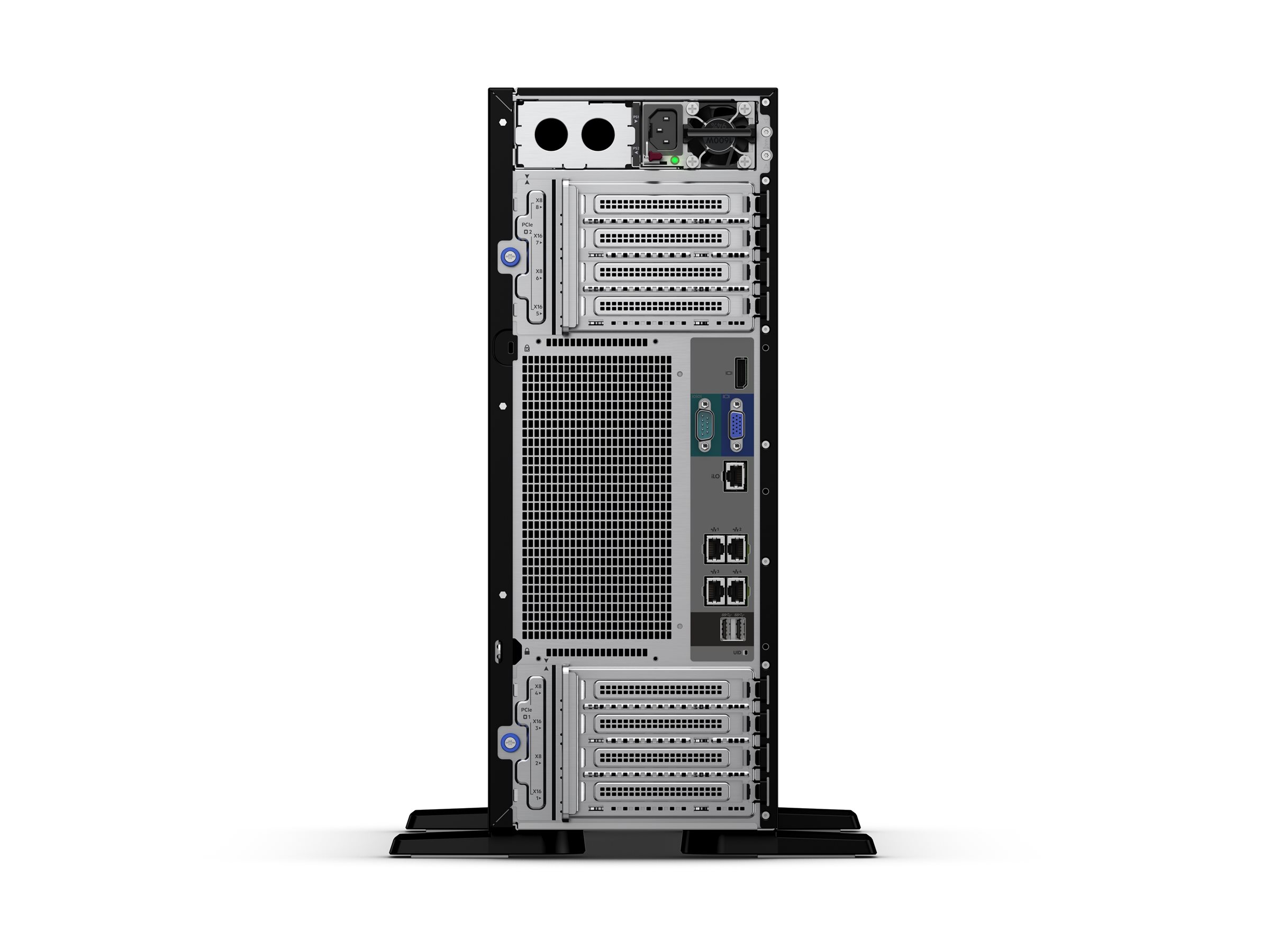

Hewlett Packard Enterprise - HPE ProLiant ML350 Gen10 Base
Server - tower - 4U - 2-way - 1 x Xeon Silver 4208 / up to 3.2 GHz - RAM 16 GB - SAS - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - monitor: none - BTO
Hewlett Packard Enterprise
P22094-001
N/A
0190017410890
N/A
New
Product Description
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | HPE ProLiant ML350 Gen10 Base - tower - AI Ready - Xeon Silver 4208 2.1 GHz - 16 GB - no HDD |
Type | Server - tower AI Ready |
Height (Rack Units) | 4U |
Localization | Region: United States |
Server Scalability | 2-way |
Processor | 1 x Intel Xeon Silver 4208 / 2.1 GHz (, up to 3.2 GHz, (8-core) |
Processor Socket | FCLGA3647 Socket |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
Cache Memory | 11 MB L3 cache |
Cache Per Processor | 11 MB |
RAM | 16 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC |
Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array P408i-a SR Gen10) |
Server Storage Bays | Hot-swap 2.5" |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | 1GbE |
Power | AC 120/230 V (50/60 Hz) |
Power Redundancy | Optional |
Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
Dimensions (WxDxH) | 6.9 in x 25.5 in x 18.2 in |
Weight | 46.3 lbs |
Pricing Type | BTO |
Environmental Standards | ENERGY STAR Qualified |
Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
General | |
Type | Server - AI Ready |
Product Form Factor | Tower - 4U |
Server Scalability | 2-way |
Hot-Swap Bays Qty | 8 |
Localization | Region: United States |
Expansion / Connectivity | |
Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
Slots | 2 (total) / 2 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) |
Interfaces | 1 x VGA ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 5 x USB 3.0 (2 front, 2 rear, 1 internal) ¦ 1 x USB 2.0 (1 internal) ¦ 1 x HPE iLO - Type A (1 in front) (service port) ¦ 1 x DisplayPort |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
Miscellaneous | |
Included Accessories | 6 x standard fans |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
Compliant Standards | ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, Energy-Related Products (ErP) Lot 9 |
Pricing Type | BTO |
RAM | |
Installed Size | 16 GB (installed) / 1.5 TB (max) |
Technology | DDR4 SDRAM - Advanced ECC |
Effective Memory Speed | 2400 MHz |
Rated Memory Speed | 2933 MHz |
Form Factor | DIMM 288-pin |
Slots | 24 (total) / 23 (empty) |
Features | Registered, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory |
Configuration Features | 1 x 16 GB |
RAM Supported | 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC |
Networking | |
Ethernet Ports | 4 x Gigabit Ethernet |
Ethernet Controller | HP 369i |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol | SNMP 3, IPMI 2.0 |
Remote Management Controller | Integrated Lights-Out 5 |
Features | Wake on LAN (WoL), PXE support |
Power | |
Device Type | Power supply - hot-plug |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Installed Qty | 1 |
Max Supported Qty | 2 |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Provided | 800 Watt |
Environmental Parameters | |
Min Operating Temperature | 50 °F |
Max Operating Temperature | 95 °F |
Humidity Range Operating | 8 - 90% (non-condensing) |
Sound Emission | 27 dBA |
Storage Controller | |
Type | 1 x RAID - PCIe 3.0 x8 |
Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
Storage Controller Name | HPE Smart Array P408i-a SR Gen10 |
Channel Qty | 8 |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
Buffer Size | 2 GB |
Cache Memory | |
Installed Size | L3 cache - 11 MB |
Cache Per Processor | 11 MB |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Video Memory | 16 MB |
Video Interfaces | VGA, DisplayPort |
Operating System / Software | |
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
Hard Drive | |
Type | No HDD |
Dimensions & Weight | |
Width | 6.9 in |
Depth | 25.5 in |
Height | 18.2 in |
Weight | 46.3 lbs |
Processor / Chipset | |
CPU | Intel Xeon Silver 4208 |
Clock Speed | 2.1 GHz |
Max Turbo Speed | 3.2 GHz |
Number of Cores | 8-core |
CPU Qty | 1 |
Max CPU Qty | 2 |
CPU Upgradability | Upgradable |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
CPU Socket | FCLGA3647 Socket |
Chipset Type | Intel C622 |
Sustainability Information | |
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 2.1 |
