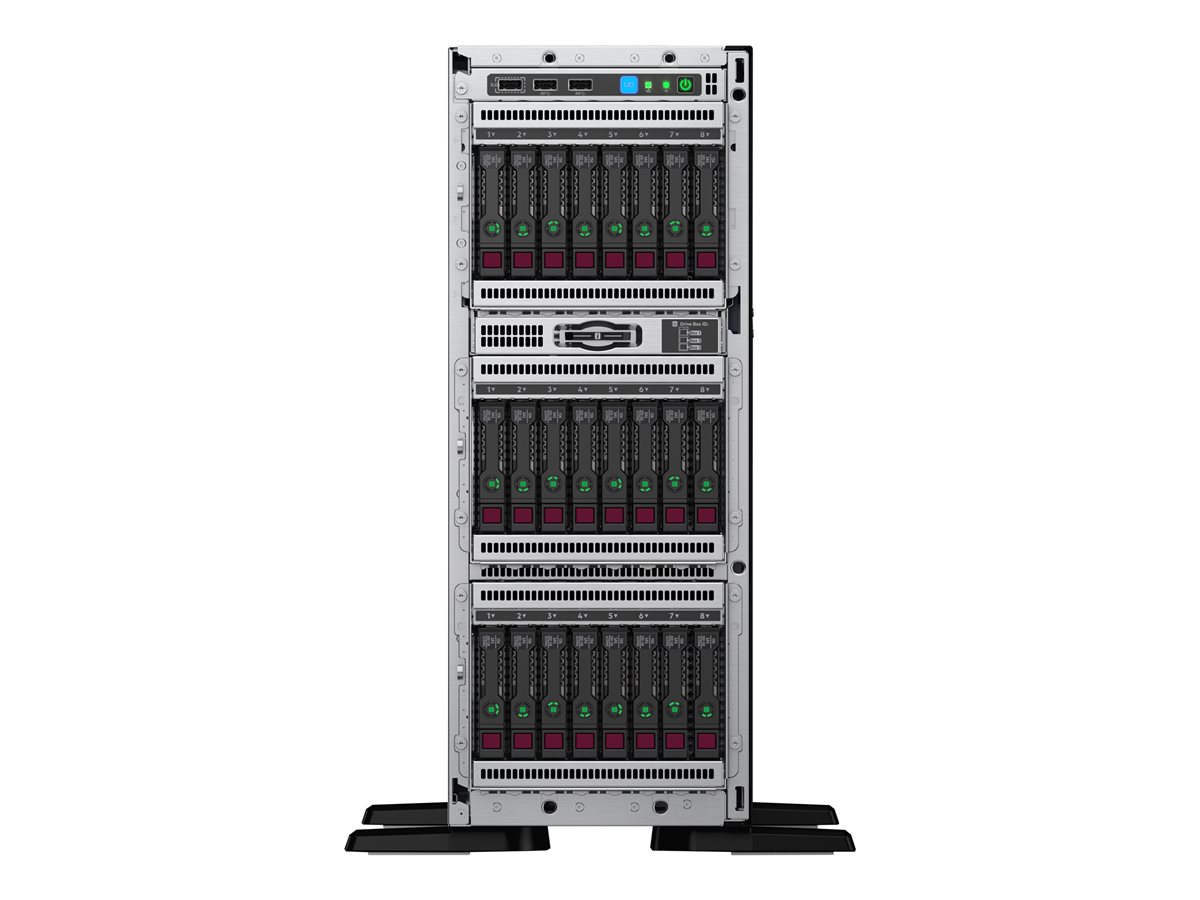

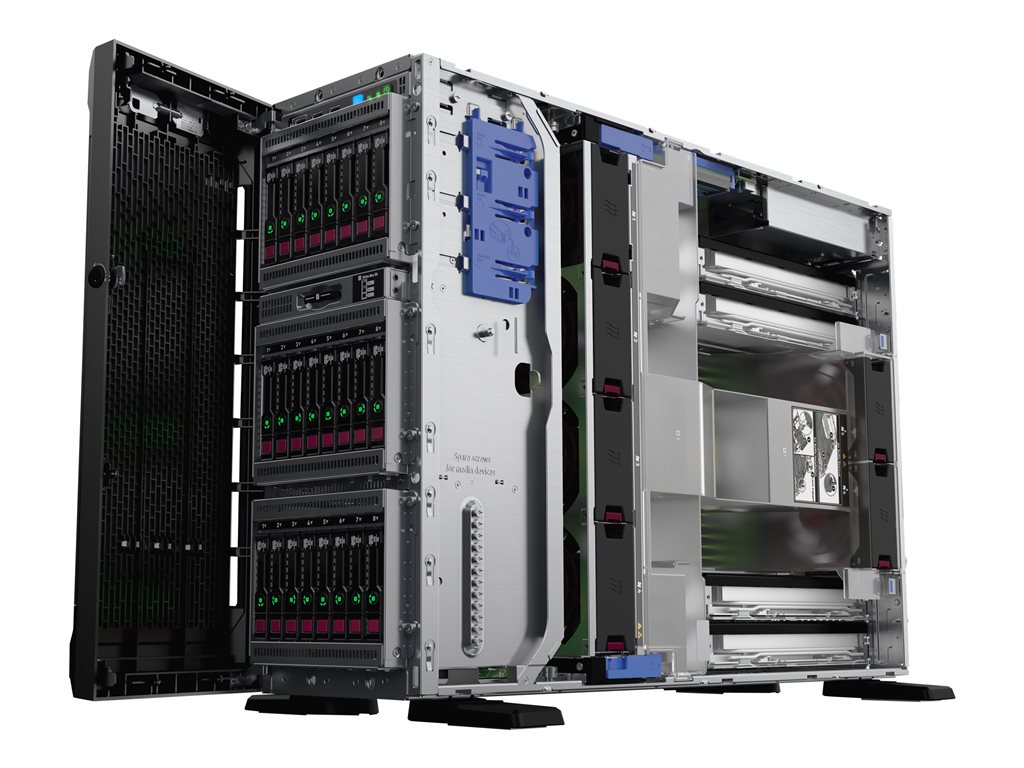

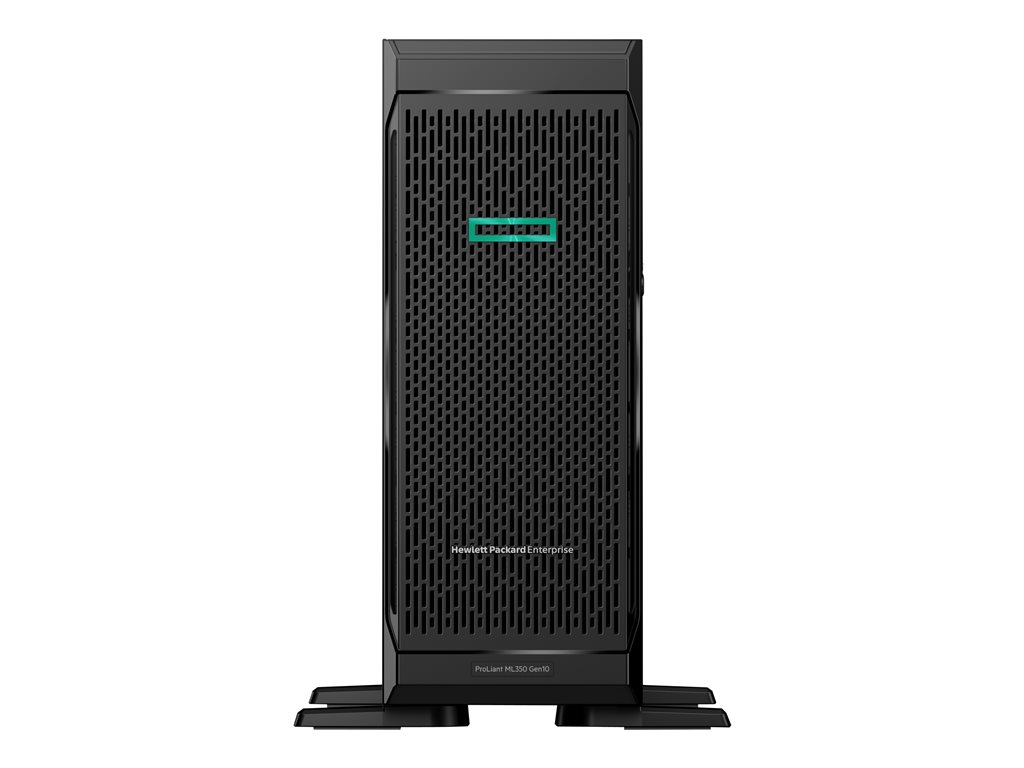

Hewlett Packard Enterprise - HPE ProLiant ML350 Gen10 High Performance
Server - tower - 4U - 2-way - 1 x Xeon Gold 5218R / 2.1 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none - BTO
Hewlett Packard Enterprise
P25008-001
N/A
0190017431628
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant ML350 Gen10 High Performance - tower - Xeon Gold 5218R 2.1 GHz - 32 GB - no HDD |
| Type | Server - tower |
| Height (Rack Units) | 4U |
| Localization | Region: United States |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Gold 5218R / 2.1 GHz (4 GHz) (20-core) |
| Processor Socket | FCLGA3647 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Cache Memory | 27.5 MB L3 cache |
| Cache Per Processor | 27.5 MB |
| RAM | 32 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array P408i-a SR Gen10) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Dimensions (WxDxH) | 6.9 in x 25.5 in x 18.2 in |
| Weight | 46.3 lbs |
| Pricing Type | BTO |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Tower - 4U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 2 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces | 1 x VGA ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 5 x USB 3.0 (2 front, 2 rear, 1 internal) ¦ 1 x USB 2.0 (1 internal) ¦ 1 x HPE iLO - Type A (1 in front) (service port) ¦ 1 x DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | 6 x standard fans |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, Energy-Related Products (ErP) Lot 9 |
| Pricing Type | BTO |
| RAM | |
| Installed Size | 32 GB / 1.5 TB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 23 (empty) |
| Features | Registered, slots 13 - 24 are available in two-processor configuration only, HP SmartMemory |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC |
| Networking | |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | HP 369i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0 |
| Remote Management Controller | Integrated Lights-Out 5 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 800 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | HPE Smart Array P408i-a SR Gen10 |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Buffer Size | 2 GB |
| Cache Memory | |
| Installed Size | L3 cache - 27.5 MB |
| Cache Per Processor | 27.5 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA, DisplayPort |
| Operating System / Software | |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 25.5 in |
| Height | 18.2 in |
| Weight | 46.3 lbs |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 2.1 |
| Processor / Chipset | |
| CPU | Intel Xeon Gold 5218R |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 4 GHz |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| CPU Socket | FCLGA3647 Socket |
| Chipset Type | Intel C622 |
