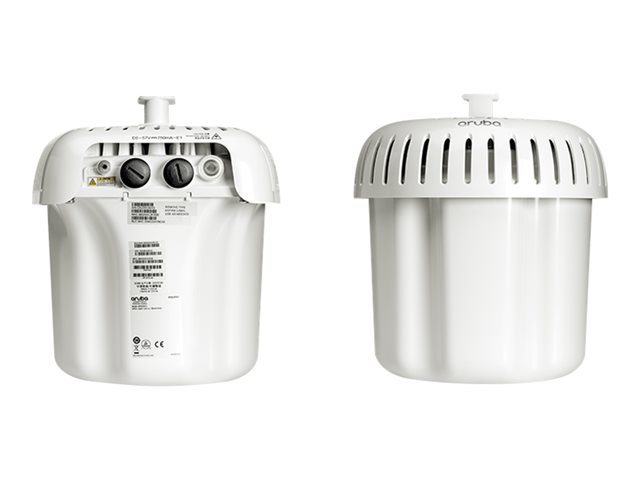

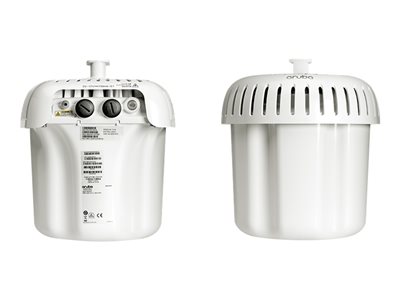

Hewlett Packard Enterprise - HPE Aruba AP-575 (US) TAA
Wireless access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - TAA Compliant - for (non-ECC): EliteBook 1050 G1, 735 G5, 735 G6, 745 G5, 745 G6, 755 G5, 830 G6, 830 G8, 840 G8, 840r G4, 845 G7, 850 G6, 855 G7; EliteBook x360 830 G6; ProBook 430 G6, 430 G7, 440 G7, 445r G6, 450 G6, 450 G7, 455r G6, 640 G5, 64X G4, 650 G5; ZBook 14u G6, 15 G5, 15u G6, 15v G5, 17 G5, Studio x360 G5
Hewlett Packard Enterprise
R4H33A
N/A
0190017434162
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba AP-575 (US) TAA - wireless access point - Wi-Fi 6 - TAA Compliant |
| Device Type | Wireless access point |
| Form Factor | External - outdoor |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 4.8 Gbps ¦ Maximum data rate (2.4 GHz): 575 Mbps |
| Capacity | Wireless clients per Wi-Fi radio: 512 |
| Power Over Ethernet (PoE) Supported | PoE+ |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 9.1 in x 9.4 in x 10.6 in |
| Weight | 5.29 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | (non-ECC): EliteBook 1050 G1, 735 G5, 735 G6, 745 G5, 745 G6, 755 G5, 830 G6, 830 G8, 840 G8, 840r G4, 845 G7, 850 G6, 855 G7; EliteBook x360 830 G6; ProBook 430 G6, 430 G7, 440 G7, 445r G6, 450 G6, 450 G7, 455r G6, 640 G5, 64X G4, 650 G5; ZBook 14u G6, 15 G5, 15u G6, 15v G5, 17 G5, Studio x360 G5 |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 9.1 in |
| Depth | 9.4 in |
| Height | 10.6 in |
| Weight | 5.29 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 2500Base-T (PoE) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x console - USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 60950, IEC 60950, UL 60950, CB, UL 2043, EN 60601-1-2, cTUVus, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, 1024 QAM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 4.8 Gbps ¦ Maximum data rate (2.4 GHz): 575 Mbps |
| Capacity | Wireless clients per Wi-Fi radio: 512 |
| Status Indicators | Status |
| Features | Auto-uplink (auto MDI/MDI-X), DFS support, IPSec Virtual Private Network (VPN), Trusted Platform Module (TPM), reset button, Link Aggregation Control Protocol (LACP), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), Intelligent Power Monitoring (IPM), Energy-Efficient Ethernet (EEE), 4x4:4 MU-MIMO technology, Target Wait Time (TWT), HPE SmartRate, Policy Enforcement Firewall (PEF), Layer 7 Deep Packet Inspection (DPI), Passpoint Release 2 |
| Encryption Algorithm | WPA2 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 25.6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Compatibility Information | |
| Designed For | (non-ECC): ¦ HP EliteBook 1050 G1, 735 G5, 735 G6, 745 G5, 745 G6, 755 G5, 820 G4, 830 G5, 830 G6, 830 G8, 840 G3, 840 G4, 840 G5, 840 G6, 840 G8, 840r G4, 845 G7, 850 G3, 850 G4, 850 G5, 850 G6, 855 G7 ¦ HP EliteBook x360 830 G6 ¦ HP ProBook 430 G5, 430 G6, 430 G7, 440 G5, 440 G7, 445r G6, 450 G5, 450 G6, 450 G7, 455r G6, 470 G5, 640 G2, 640 G3, 640 G4, 640 G5, 645 G4, 650 G2, 650 G3, 650 G4, 650 G5 ¦ HP ProBook x360 440 G1 ¦ HP ZBook 14u G4 Mobile Workstation, 14u G5 Mobile Workstation, 14u G6 Mobile Workstation, 15 G3 Mobile Workstation, 15 G4 Mobile Workstation, 15 G5 Mobile Workstation, 15u G3 Mobile Workstation, 15u G4 Mobile Workstation, 15u G5 Mobile Workstation, 15u G6 Mobile Workstation, 15v G5 Mobile Workstation, 17 G3 Mobile Workstation, 17 G4 Mobile Workstation, 17 G5 Mobile Workstation, Studio G3 Mobile Workstation, Studio G4 Mobile Workstation, Studio x360 G5 Mobile Workstation |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth, Zigbee |
