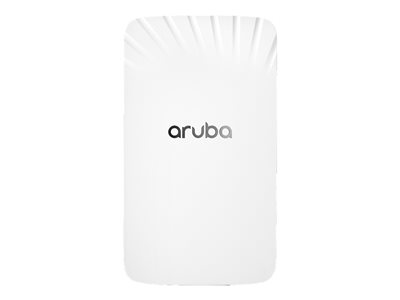

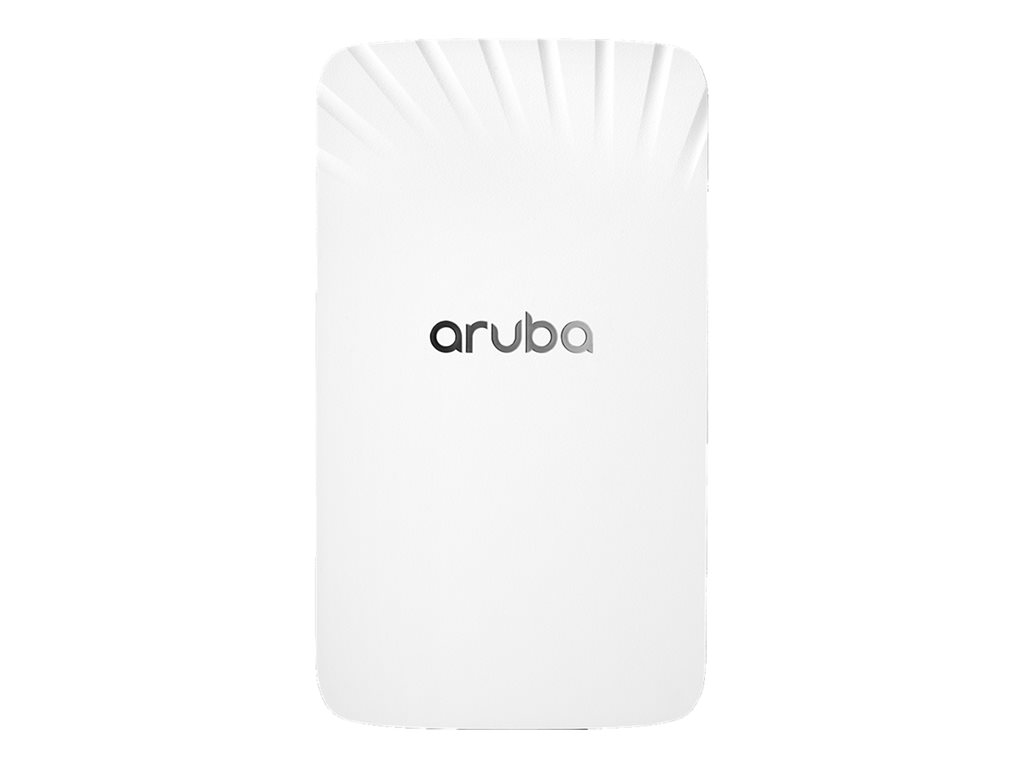

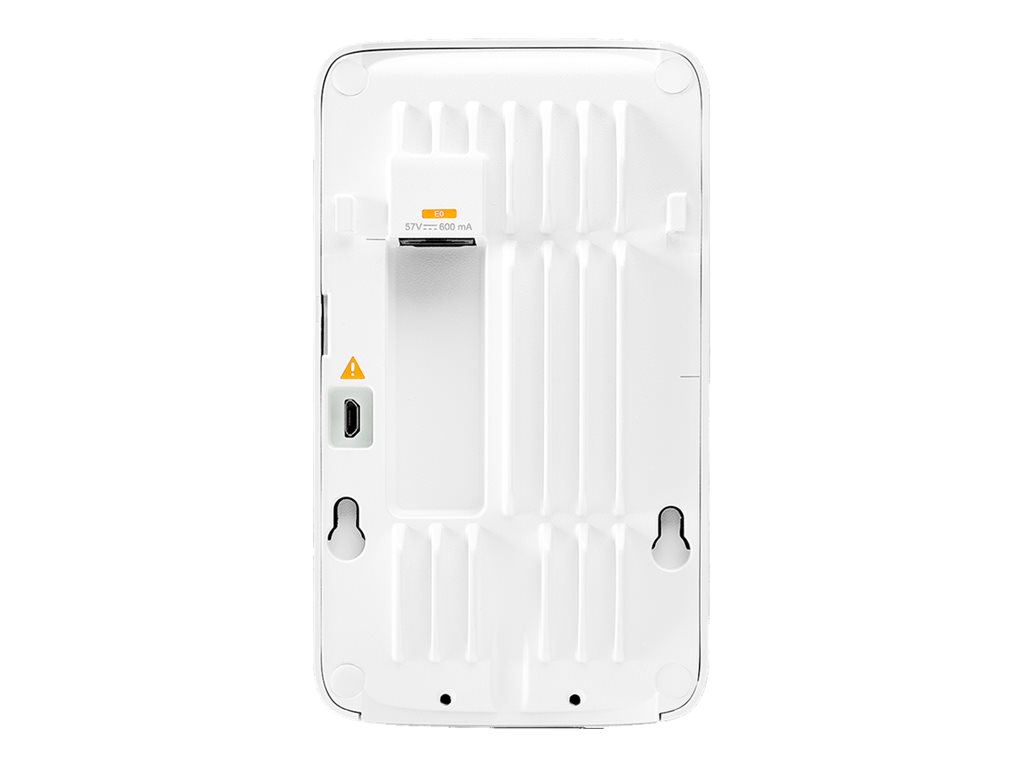

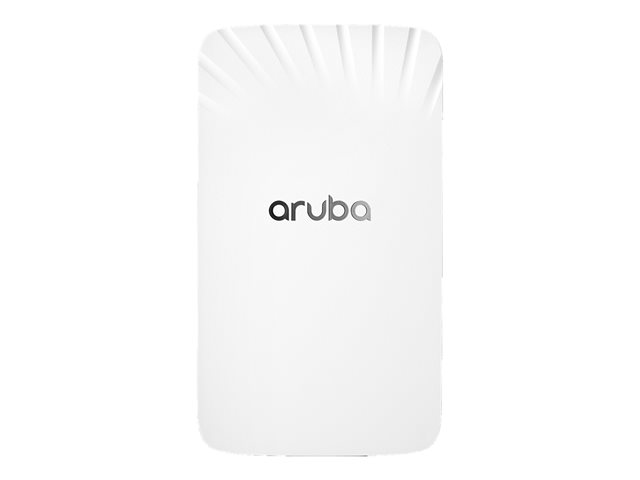

Hewlett Packard Enterprise - HPE Aruba AP-505H (US) Unified Hospitality
Wireless access point - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO - in-ceiling
Hewlett Packard Enterprise
R3V48A
N/A
0190017395722
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba AP-505H (US) Unified Hospitality - wireless access point - Bluetooth, Wi-Fi 6 |
| Device Type | Wireless access point |
| Form Factor | In-ceiling |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 287 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.5 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
| OS Required | ArubaOS, InstantOS |
| Power Over Ethernet (PoE) Supported | PoE |
| Pricing Type | BTO |
| Dimensions (WxDxH) | 3.4 in x 1.9 in x 5.9 in |
| Weight | 12.7 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Width | 3.4 in |
| Depth | 1.9 in |
| Height | 5.9 in |
| Weight | 12.7 oz |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T - RJ-45 ¦ 1 x HPE Smart Rate - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC, EN 60601-1-2, EN 60601-1-1, IEC60950/EN60950, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2, SIG, IEC/EN 62368-1 |
| Pricing Type | BTO |
| Networking | |
| Form Factor | In-ceiling |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.2 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 287 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.5 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
| Status Indicators | Port status, power, system, status, PoE, radio |
| Features | Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), IPSec Virtual Private Network (VPN), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Virtual Mobility Controller mode, Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT), Advanced IoT Coexistence (AIC) |
| Encryption Algorithm | SSL, WPA, WPA2, WPA3-Enhanced Open, WPA2-MPSK |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 6 Watt |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.4 in |
| Shipping Depth | 2.1 in |
| Shipping Height | 6.6 in |
| Shipping Weight | 15.87 oz |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Directional |
| Gain Level | 5.4 dBi |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
