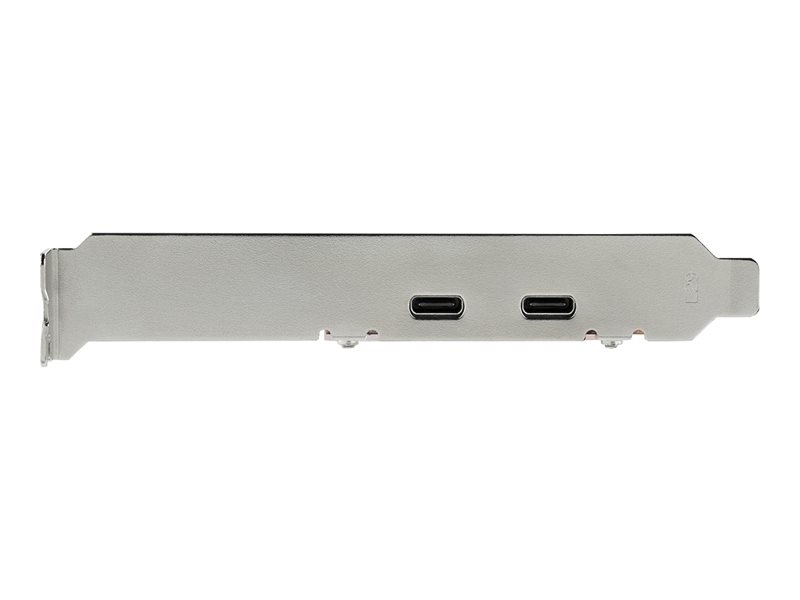

StarTech.com - StarTech.com PCIe USB 3.1 Card, 2x USB C 3.1 Gen 2 10Gbps, PCIe Gen 3 x4, ASM3142 Chipset, USB Type-C PCI Express Card, 2-Port USB 3.2 Gen 2x1 Expansion Add-On Card, Windows, macOS, Linux
Full/Low-Profile - USB adapter - PCIe 3.0 x4 low profile - USB-C 3.1 Gen 2 x 2 - for P/N: S252BU313R
StarTech.com
PEXUSB312C3
N/A
0065030887434
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com PCIe USB 3.1 Card, 2x USB C 3.1 Gen 2 10Gbps, PCIe Gen 3 x4, ASM3142 Chipset, USB Type-C PCI Express Card, 2-Port USB 3.2 Gen 2x1 Expansion Add-On Card, Windows, macOS, Linux - Full/Low-Profile - USB adapter - PCIe 3.0 x4 - USB-C 3.1 Gen 2 x 2 |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Ports | USB-C 3.1 Gen 2 x 2 |
| Dimensions (WxDxH) | 3.1 in x 4.8 in x 0.7 in |
| Weight | 1.6 oz |
| Data Link Protocol | USB 3.1 |
| Data Transfer Rate | 10 Gbps |
| Processor | ASMedia ASM1142 |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1 Gen 2 |
| System Requirements | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 3.5 or later, Linux LTS versions only, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0 |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: S252BU313R |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.1 Gen 2 - 24 pin USB-C ¦ 1 x SATA power - 15 pin Serial ATA power (internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS, WEEE, REACH |
| Networking | |
| Ports | USB-C 3.1 Gen 2 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.1 |
| Data Transfer Rate | 10 Gbps |
| Features | UASP |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1 Gen 2 |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 3.5 or later, Linux LTS versions only, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Processor / Memory | |
| Processor | ASMedia ASM1142 |
| Dimensions & Weight | |
| Width | 3.1 in |
| Depth | 4.8 in |
| Height | 0.7 in |
| Weight | 1.6 oz |
| Compatibility Information | |
| Designed For | P/N: S252BU313R |
