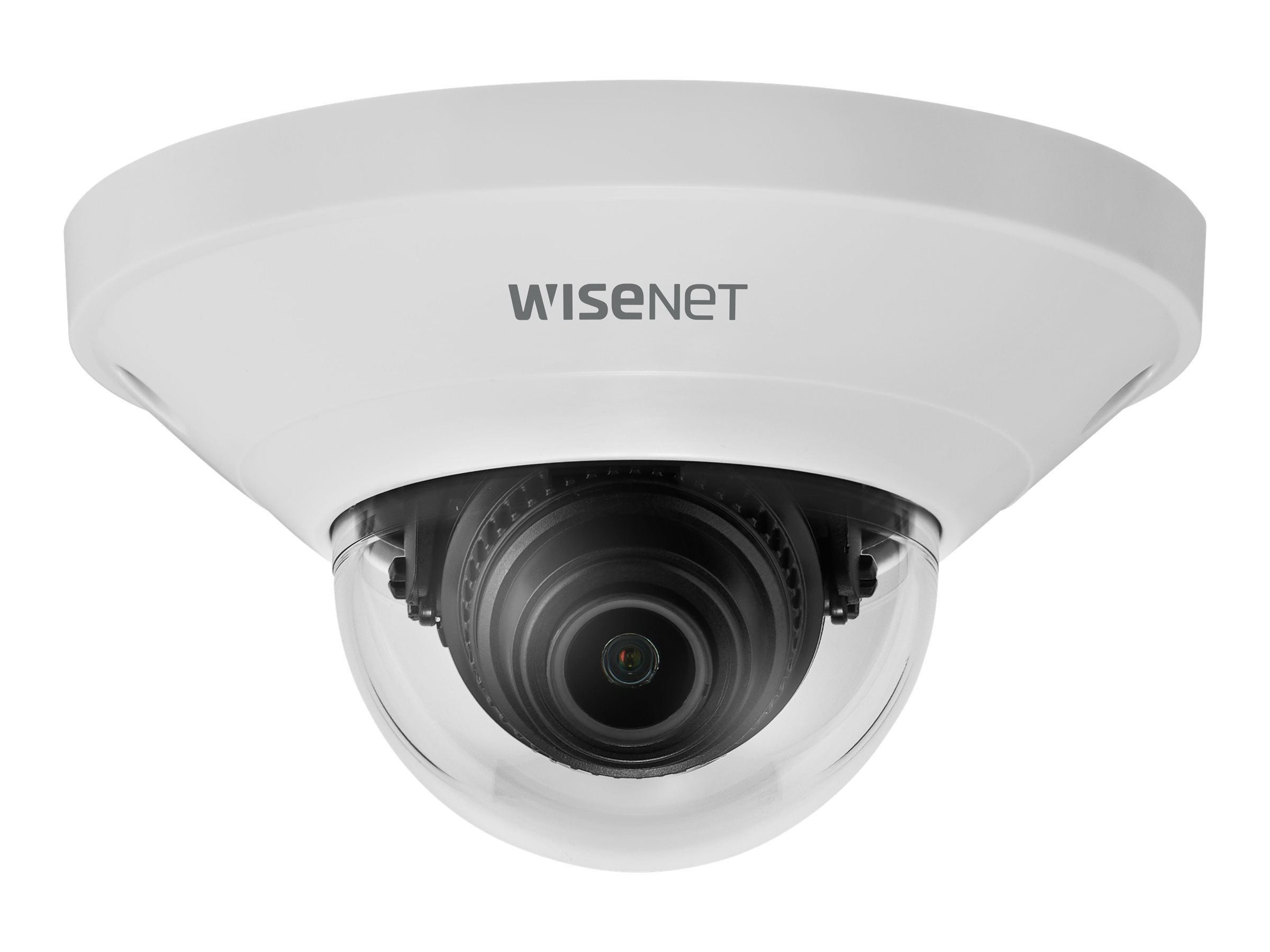

Hanwha Vision - Hanwha Vision WiseNet Q mini QND-8011
Network surveillance camera - dome - color (Day&Night) - 5 MP - 2592 x 1944 - 1080p - fixed focal - HDMI - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 2
Hanwha Vision
QND-8011
N/A
8801089162540
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision WiseNet Q mini QND-8011 - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome |
| Dimensions (WxDxH) | 3.9 in x 3.9 in x 2.2 in |
| Weight | 5.82 oz |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Optical Sensor Type | CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.15 lux - color - F2.0 |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/2.0 |
| Panning Range (degree) | 350 |
| Tilting Range (degree) | 0 to 69 |
| Interfaces | HDMI, Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 2 |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, motion detection, ONVIF (Profile T) support |
| Environmental Parameters (operating) | 14 °F - 104 °F; 0 - 90% relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 3.9 in |
| Depth | 3.9 in |
| Height | 2.2 in |
| Weight | 5.82 oz |
| Expansion / Connectivity | |
| Ports | Mini-HDMI ¦ LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | |
| Compliant Standards | FCC, cULus, EAC, IEEE 802.3af, IEEE 802.1x |
| Color | White |
| Power | |
| Power Requirements | PoE Class 2 |
| Power Device | 4 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 0 - 90% |
| Camera | |
| Type | Color - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.15 lux - color - F2.0 |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 720 x 576, 800 x 600, 1920 x 1080, 640 x 360, 2592 x 1944, 800 x 448 |
| Frame Rate (max) | 30 frames per second |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, motion detection, ONVIF (Profile T) support |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 104.4 |
| Vertical Field of View (degree) | 76.7 |
| Diagonal Field of View (degree) | 136.1 |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Effective Pixels | 2592 x 1944 |
| Interfaces | |
| Video | HDMI |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, LLDP |
| Panning | |
| Range (degree) | 350 |
| Tilting | |
| Range (degree) | 0 to 69 |
