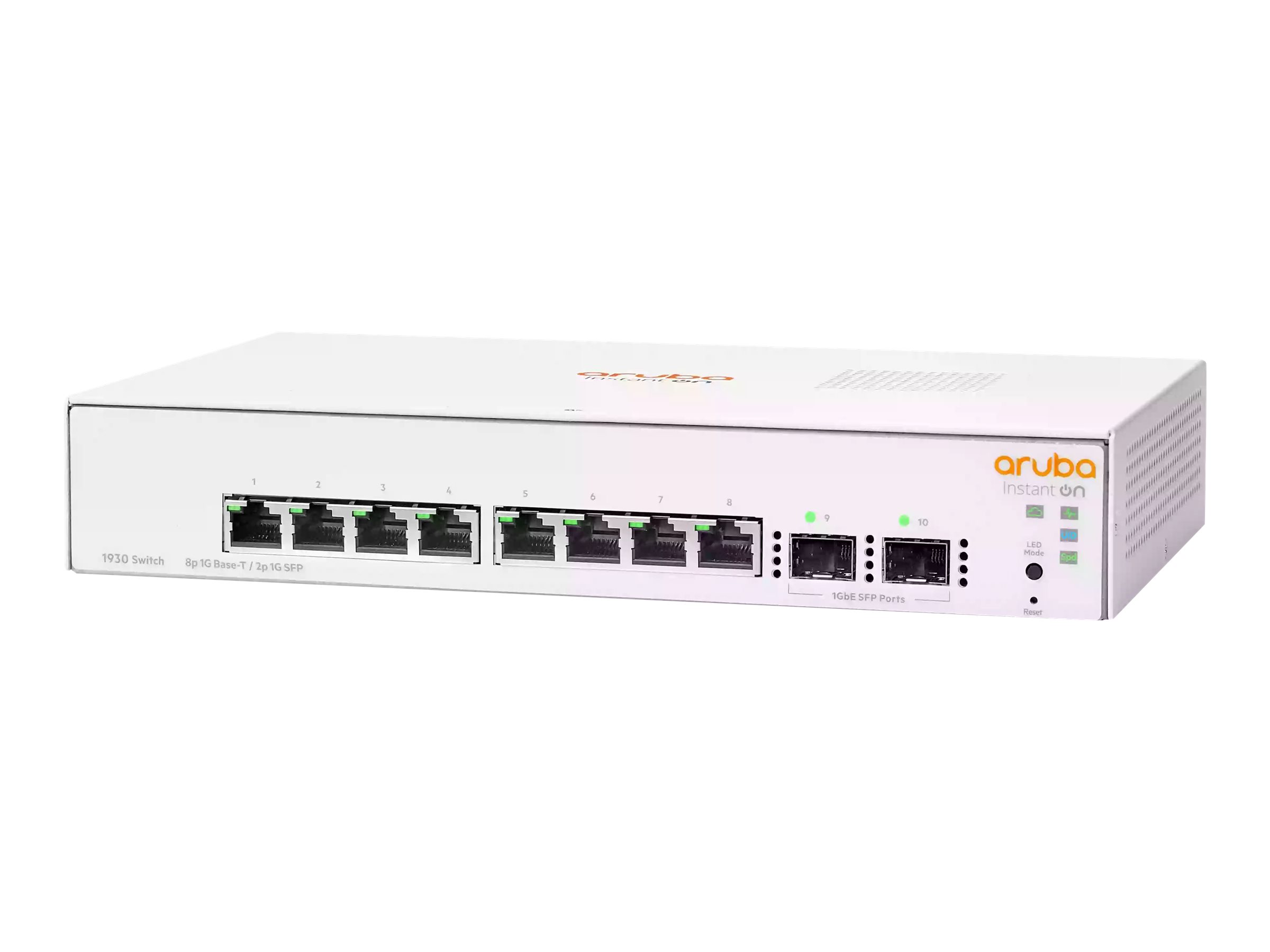

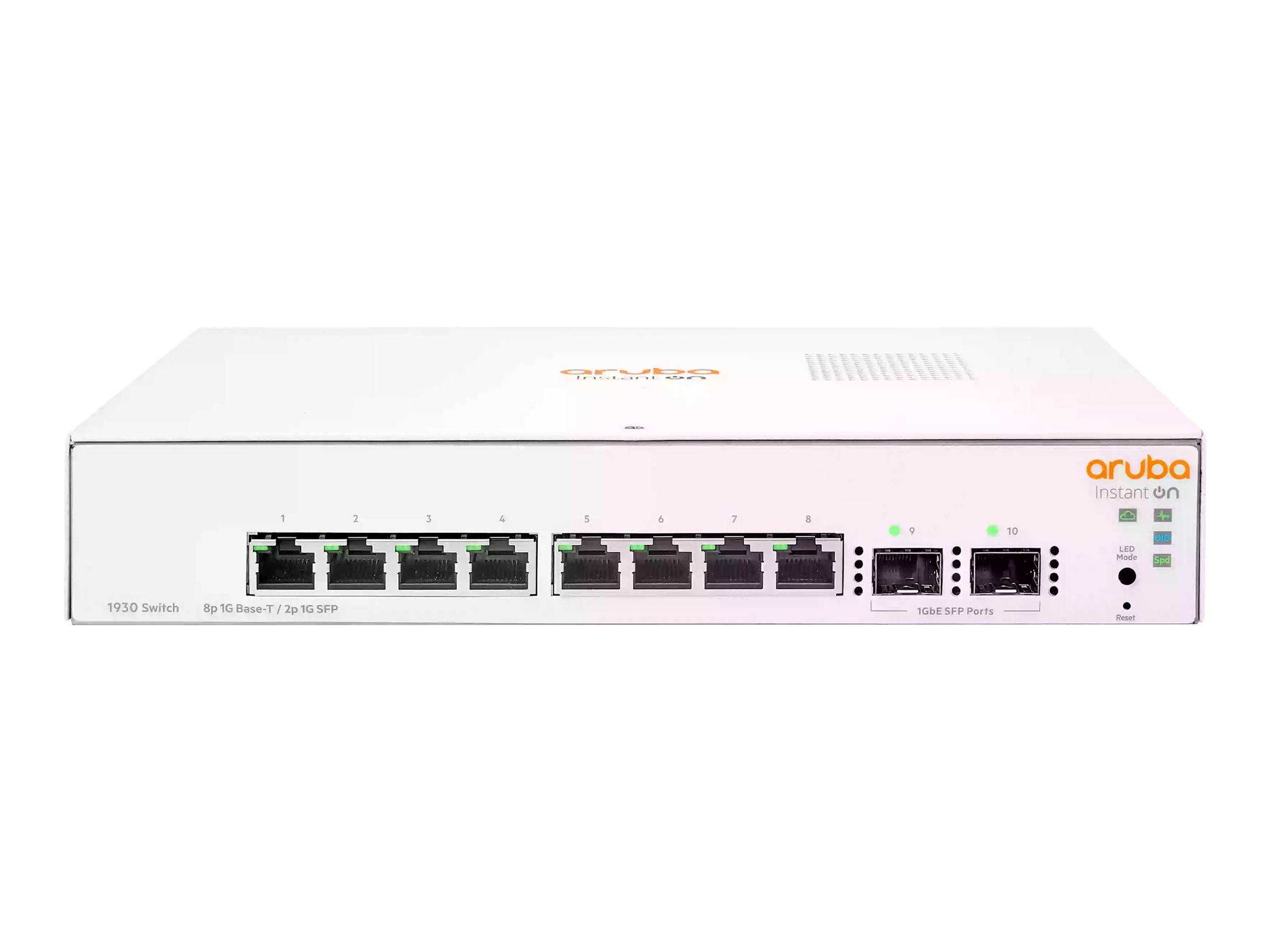

Hewlett Packard Enterprise - HPE Networking Instant On 1930 8G 2SFP Switch
Switch - L3 - managed - 8 x 10/100/1000 + 2 x Gigabit SFP - desktop
Hewlett Packard Enterprise
JL680A#ABA
N/A
0190017355023
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Networking Instant On 1930 8G 2SFP Switch - switch - 10 ports - managed |
| Device Type | Switch - 10 ports - L3 - managed |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Performance | Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 3 µs |
| Capacity | Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 10 in x 6.3 in x 1.7 in |
| Weight | 28.92 oz |
| Localization | English / United States |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 10 ports - L3 - managed |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Performance | Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 3 µs |
| Capacity | Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor | 1 x ARM Cortex-A9: 800 MHz |
| RAM | 512 MB SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x Gigabit LAN SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 178 years |
| Compliant Standards | VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, EN 55032:2015+AC:2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035:2017 |
| Localization | English / United States |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 11 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 95% (40 °C) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% (60 °C) |
| Dimensions & Weight | |
| Width | 10 in |
| Depth | 6.3 in |
| Height | 1.7 in |
| Weight | 28.92 oz |
