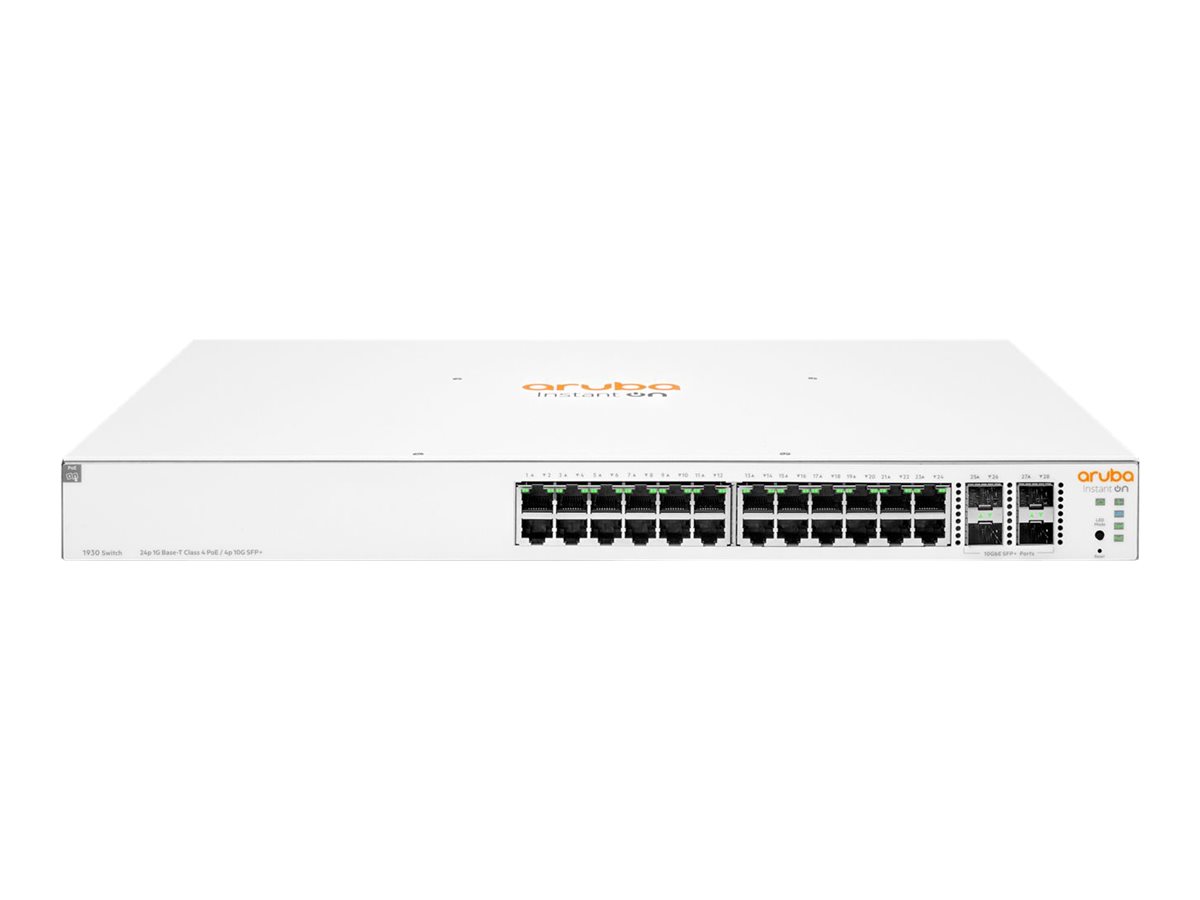

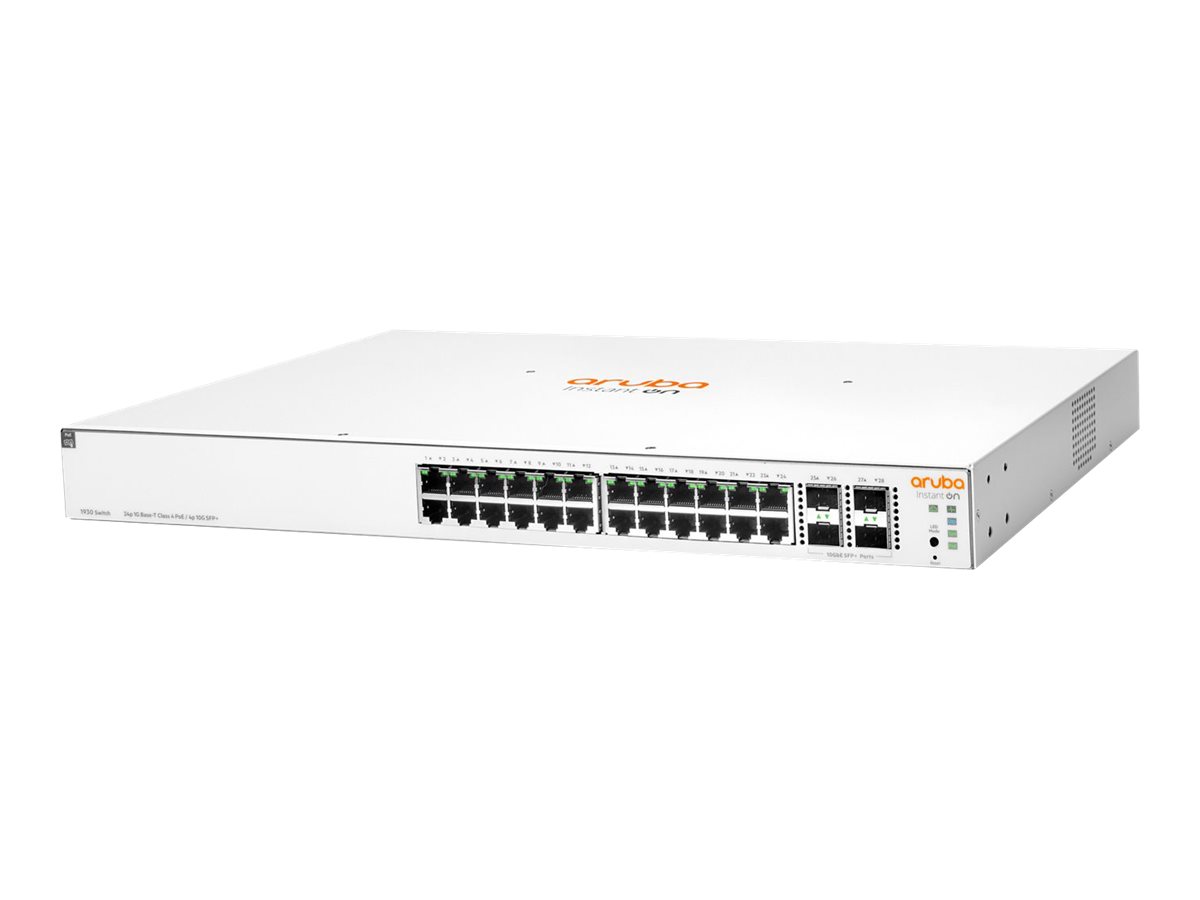

Hewlett Packard Enterprise - HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
Switch - L3 - managed - 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE (195 W)
Hewlett Packard Enterprise
JL683A#ABA
N/A
0190017355665
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch - switch - 28 ports - managed - rack-mountable |
| Device Type | Switch - 28 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 195 W |
| Performance | Switching capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 µs ¦ Latency (10 Gbps): 1.3 µs |
| Capacity | Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 10.4 in x 1.7 in |
| Weight | 7.72 lbs |
| Localization | English / United States |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 28 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 195 W |
| Performance | Switching capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 µs ¦ Latency (10 Gbps): 1.3 µs |
| Capacity | Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Processor | 1 x ARM Cortex-A9: 800 MHz |
| RAM | 512 MB SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Port status, power, PoE |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE - 195 W ¦ 4 x 1/10Gbit LAN SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 76 years |
| Compliant Standards | VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, EN 55032:2015+AC:2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035:2017 |
| Localization | English / United States |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 234 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 95% (40 °C) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% (60 °C) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 10.4 in |
| Height | 1.7 in |
| Weight | 7.72 lbs |
