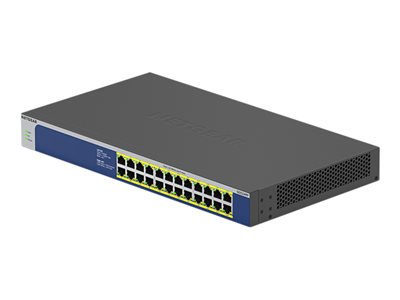

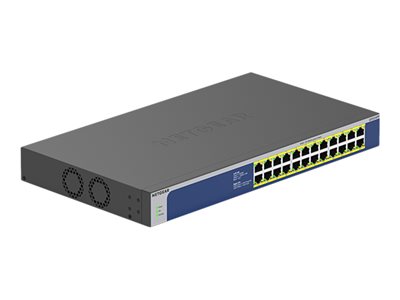

NETGEAR - NETGEAR GS524PP
Switch - unmanaged - 24 x 10/100/1000 (PoE+) - desktop, rack-mountable - PoE+ (300 W) - AC 100 - 230 V
NETGEAR
GS524PP-100NAS
N/A
10606449149279
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | NETGEAR GS524PP - switch - 24 ports - unmanaged - rack-mountable |
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 300 W |
| Performance | Non-blocking switching throughput: 48 Gbps ¦ Forwarding rate (1000Mbps): 1448000 packets per second ¦ Latency (64-byte packets): 12 µs |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), auto-negotiation, metal housing, 192KB packet buffer, WRR, CoS, DSCP support, 2 fans |
| Compliant Standards | IEEE 802.3at, IEEE 802.3az |
| Power | AC 100 - 230 V (50/60 Hz) |
| Dimensions (WxDxH) | 15.4 in x 8.7 in x 1.7 in |
| Weight | 6.37 lbs |
| Localization | Asia Pacific, North America |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 300 W |
| Performance | Non-blocking switching throughput: 48 Gbps ¦ Forwarding rate (1000Mbps): 1448000 packets per second ¦ Latency (64-byte packets): 12 µs |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), auto-negotiation, metal housing, 192KB packet buffer, WRR, CoS, DSCP support, 2 fans |
| Compliant Standards | IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Link/activity, power, fan, PoE |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| MTBF | 1457,063 hours |
| Compliant Standards | Plug and Play, AS/NZS 62368.1, BSMI CNS 14336-1, EN 62368-1 Second Edition, EN60950-1 (2nd Edition), IEC 60950-1, IEC 62368-1, UL 62368-1 |
| Localization | Asia Pacific, North America |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 100 - 230 V (50/60 Hz) |
| Power Consumption Operational | 359.5 Watt |
| Power Consumption Stand by | 12.9 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 15.4 in |
| Depth | 8.7 in |
| Height | 1.7 in |
| Weight | 6.37 lbs |
