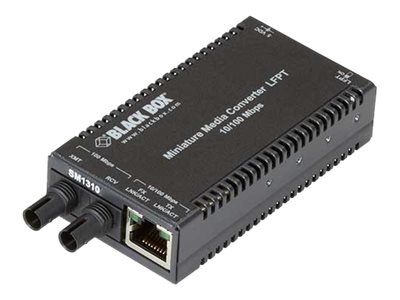

Black Box - Black Box Multi-Power Miniature Media Converter
Fiber media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / ST single-mode - up to 24.9 miles - 1310 nm
Black Box
LHC036A-R4
N/A
0822088149064
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Black Box Multi-Power Miniature Media Converter - fiber media converter - 10Mb LAN, 100Mb LAN |
| Device Type | Fiber media converter - RJ-45 / ST single-mode |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 24.9 miles |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 2 in x 4.7 in x 1 in |
| Weight | 19.05 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x Ethernet 100Base-FX - ST single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 24.9 miles |
| Status Indicators | Transmit, receive, link/activity |
| Features | Full duplex capability, auto-uplink (auto MDI/MDI-X), AutoCross |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 4.7 in |
| Height | 1 in |
| Weight | 19.05 oz |
