StarTech.com - StarTech.com Industrial 6 Port Gigabit Ethernet Switch, 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch
Fast Ethernet Switch (IES1G52UP12V) - Switch - 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP - DIN rail mountable - PoE+ (120 W) - DC power
StarTech.com
IES1G52UP12V
N/A
0065030889834
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com Industrial 6 Port Gigabit Ethernet Switch, 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C, DIN Mountable, Hardened - Fast Ethernet Switch (IES1G52UP12V) - switch - 6 ports |
| Device Type | Switch - 6 ports |
| Subtype | Gigabit Ethernet |

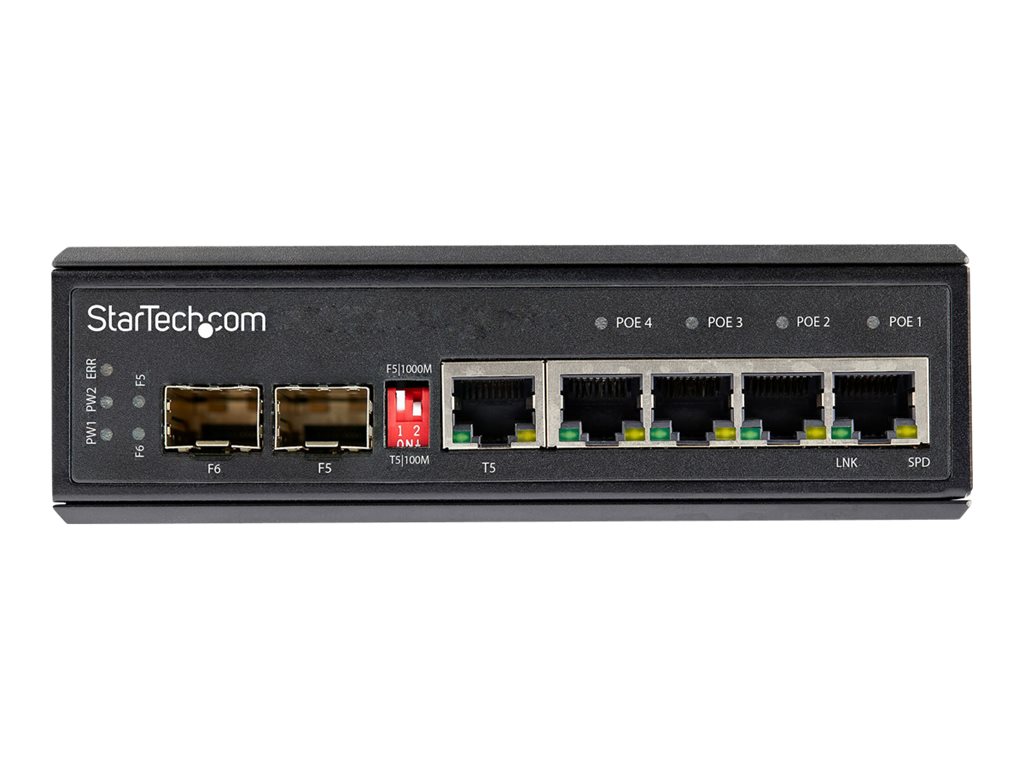

| Ports | 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Switching fabric speed: 12 Gbps |
| Jumbo Frame Support | 9KB |
| Features | Flow control, full duplex mode, 128KB packet buffer, rugged, 2KV ESD Protector, MDI-X |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Power | DC 12 - 48 V |
| Dimensions (WxDxH) | 4.1 in x 5.6 in x 1.7 in |
| Weight | 24.74 oz |
| Color | Black |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Switch - 6 ports |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Performance | Switching fabric speed: 12 Gbps |
| Jumbo Frame Support | 9KB |
| Features | Flow control, full duplex mode, 128KB packet buffer, rugged, 2KV ESD Protector, MDI-X |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power, PoE, SFP, link |
| Expansion / Connectivity | |

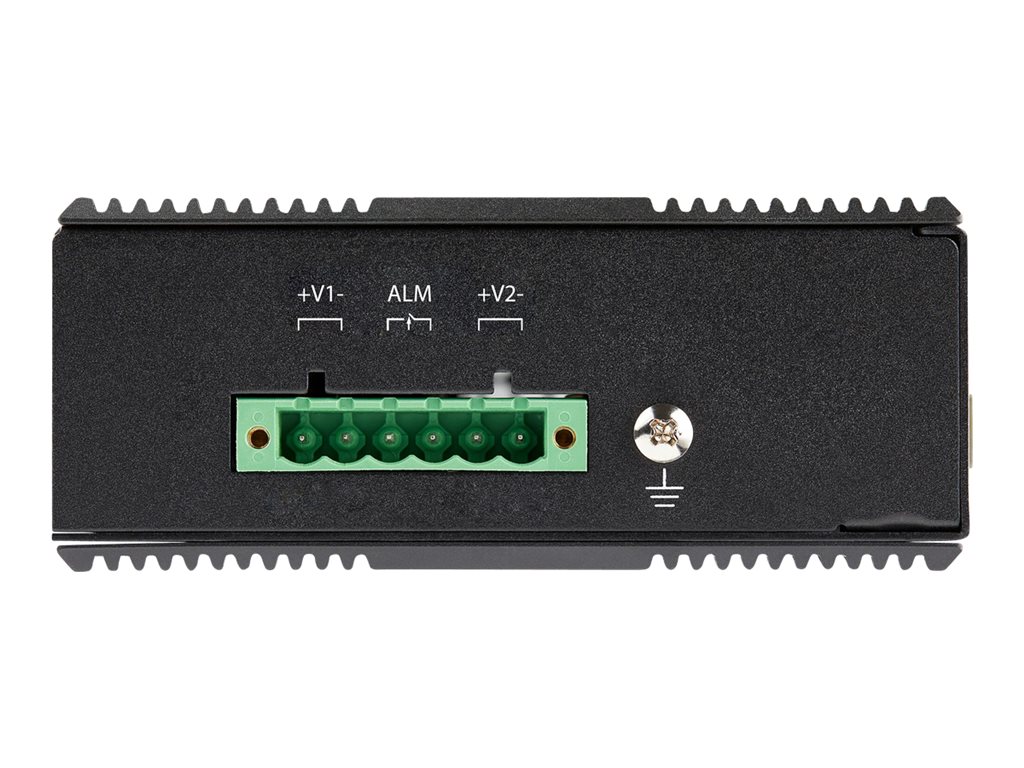

| Interfaces | 1 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x SFP ¦ 1 x terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |

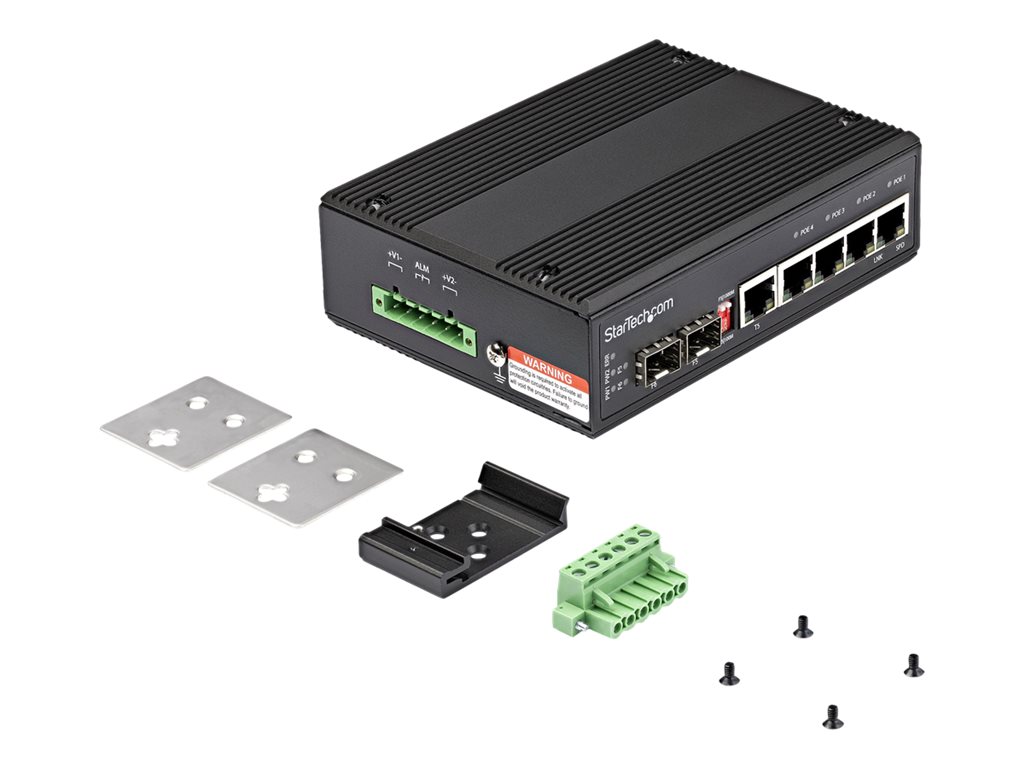

| Included Accessories | Terminal block connector, mounting kit |
| MTBF | 693,764 hours |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, UL 60950-1, EN 60950-1, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Power | |
| Voltage Required | DC 12 - 48 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 4.1 in |
| Depth | 5.6 in |
| Height | 1.7 in |
| Weight | 24.74 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.3 in |
| Shipping Depth | 6.4 in |
| Shipping Height | 2.5 in |
| Shipping Weight | 31.74 oz |
