StarTech.com - StarTech.com Industrial 8 Port Gigabit PoE Switch, 30W, Power Over Ethernet Switch, Gigabit Ethernet GbE PoE+ Unmanaged Switch, Rugged High Power Gigabit Network Switch IP-30,
Gigabit Ethernet PoE (IESC1G80UP) - Switch - unmanaged - 8 x 10/100/1000 (PoE+) - DIN rail mountable, wall-mountable - PoE+ (200 W) - DC power
StarTech.com
IESC1G80UP
N/A
0065030889605
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com Industrial 8 Port Gigabit PoE Switch, 30W, Power Over Ethernet Switch, Gigabit Ethernet GbE PoE+ Unmanaged Switch, Rugged High Power Gigabit Network Switch IP-30, -40C to 75C - Gigabit Ethernet PoE (IESC1G80UP) - switch - 8 ports - unmanaged |
| Device Type | Switch - 8 ports - unmanaged |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 200 W |
| Performance | Switching fabric speed: 16 Gbps ¦ Bandwidth: 2 Gbps |
| Jumbo Frame Support | 9KB |
| Features | Rugged, full duplex mode, MDI-X, flow control, 128KB packet buffer, Back Pressure Support, 2KV ESD Protector |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Power | DC 48 - 56 V |
| Dimensions (WxDxH) | 4.1 in x 5.6 in x 1.6 in |
| Weight | 18.9 oz |
| Color | Black |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 200 W |
| Performance | Switching fabric speed: 16 Gbps ¦ Bandwidth: 2 Gbps |
| Jumbo Frame Support | 9KB |
| Features | Rugged, full duplex mode, MDI-X, flow control, 128KB packet buffer, Back Pressure Support, 2KV ESD Protector |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Status Indicators | Power, PoE, link |
| Expansion / Connectivity | |

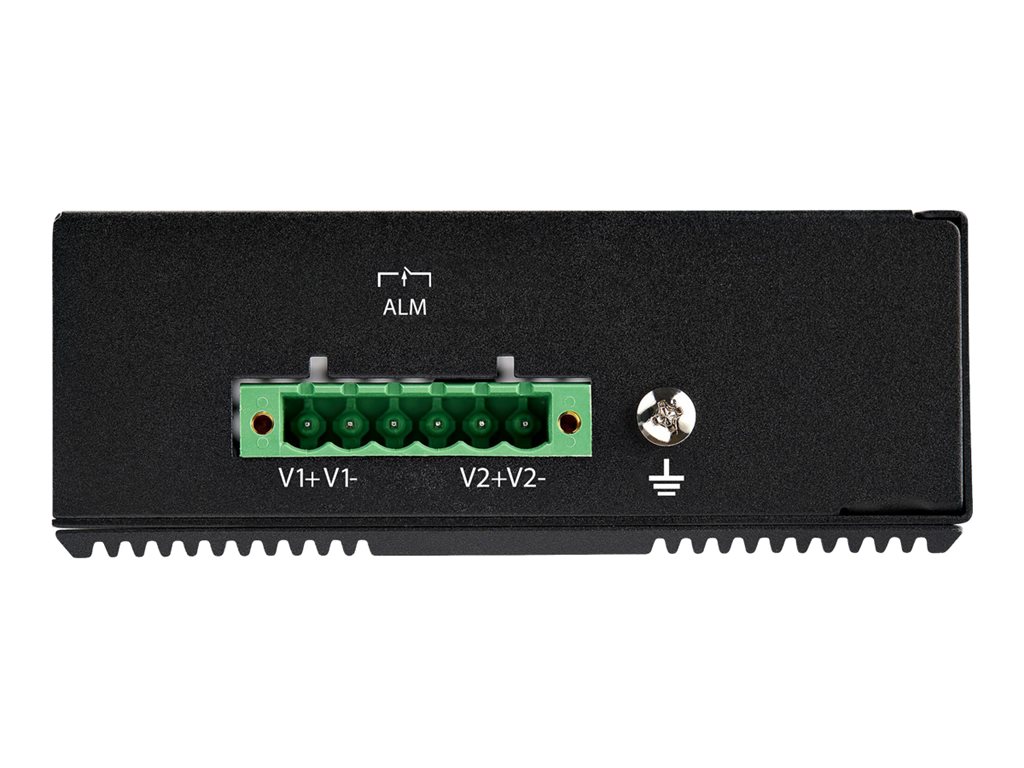

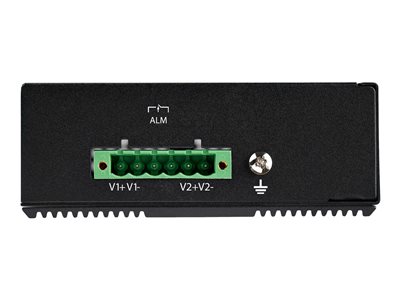

| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |

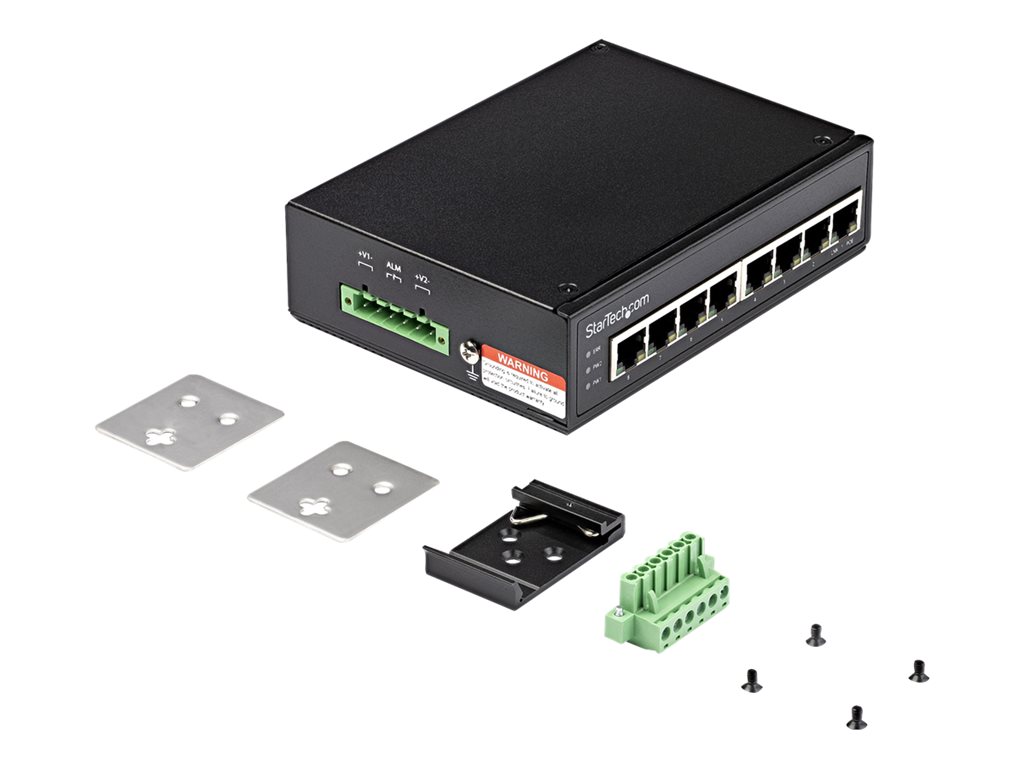

| Included Accessories | Terminal block connector, mounting kit |
| MTBF | 693,764 hours |
| Compliant Standards | EN 60950-1, UL 60950-1, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, MSA |
| Power | |
| Voltage Required | DC 48 - 56 V |
| Power Consumption Operational | 206 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Dimensions & Weight | |
| Width | 4.1 in |
| Depth | 5.6 in |
| Height | 1.6 in |
| Weight | 18.9 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.3 in |
| Shipping Depth | 6.4 in |
| Shipping Height | 2.5 in |
| Shipping Weight | 28.22 oz |
