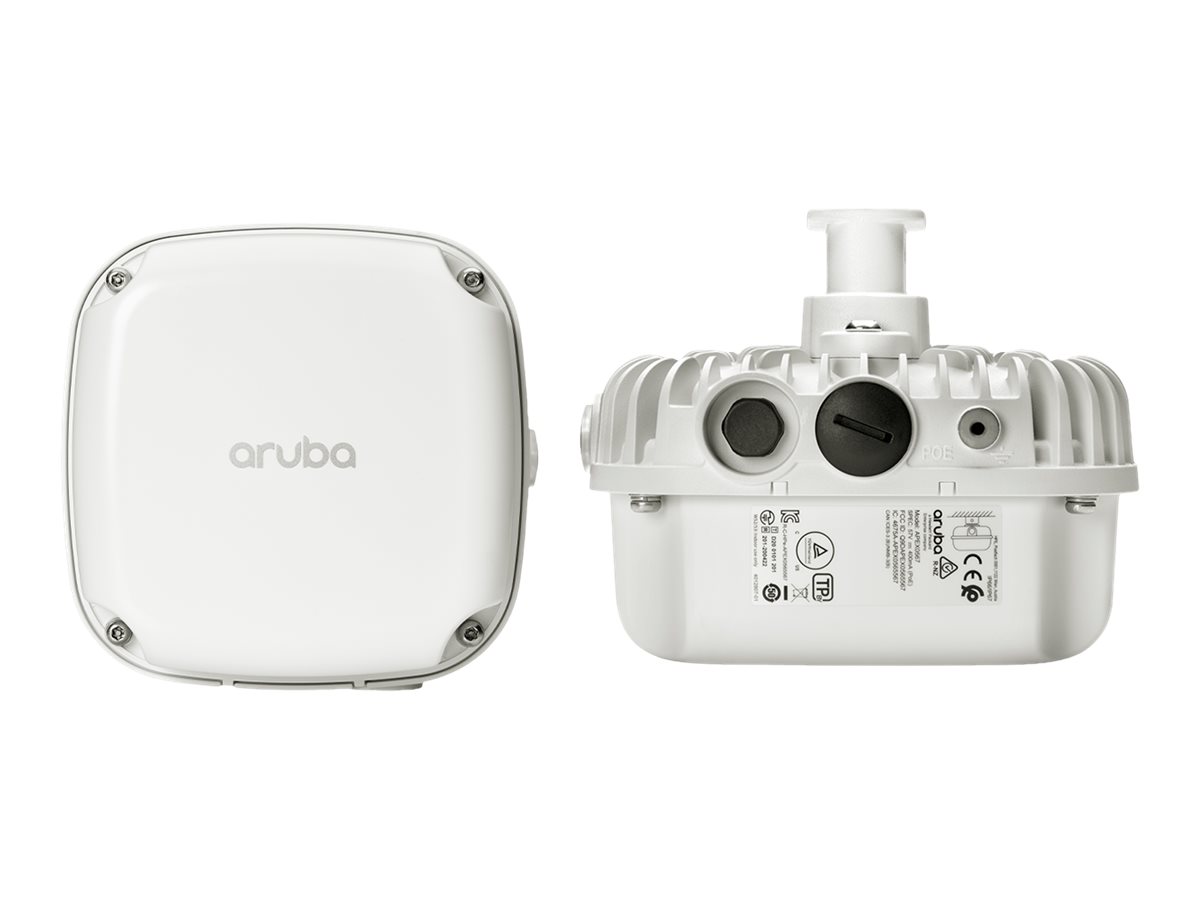

Hewlett Packard Enterprise - HPE Aruba AP-565EX (US)
Hazardous Location - wireless access point - ZigBee, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO
Hewlett Packard Enterprise
R4W63A
N/A
0190017447827
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba AP-565EX (US) - Hazardous Location - wireless access point - ZigBee, Bluetooth, Wi-Fi 6 |
| Device Type | Wireless access point |
| Form Factor | External - outdoor |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Aggregate data rate: 1.49 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 16 |
| OS Required | ArubaOS, InstantOS |
| Power Over Ethernet (PoE) Supported | PoE Class 3 |
| Pricing Type | BTO |
| Dimensions (WxDxH) | 6.5 in x 6.5 in x 4.3 in |
| Weight | 2.27 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 6.5 in |
| Depth | 6.5 in |
| Height | 4.3 in |
| Weight | 2.27 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x console - USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC, EN 60601-1-2, IP67, IP66, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, RED 2014/53/EU |
| Pricing Type | BTO |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.2 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Network / Transport Protocol | IPSec |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Aggregate data rate: 1.49 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 16 |
| Status Indicators | System, status, radio |
| Features | Auto-uplink (auto MDI/MDI-X), DFS support, Deep Packet Inspection (DPI), Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Virtual Mobility Controller mode, Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), waterproof, 2x2 MIMO technology, Very High Throughput (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT), hardened, Wi-Fi 6 technology, Policy Enforcement Firewall (PEF), Layer 7 Deep Packet Inspection (DPI), Passpoint Release 2 |
| Encryption Algorithm | SSL, WPA3, WPA3-Enhanced Open, WPA2-MPSK |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE Class 3 |
| Power Consumption Operational | 15.6 Watt |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Gain Level | 5.4 dBi |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Zigbee |
