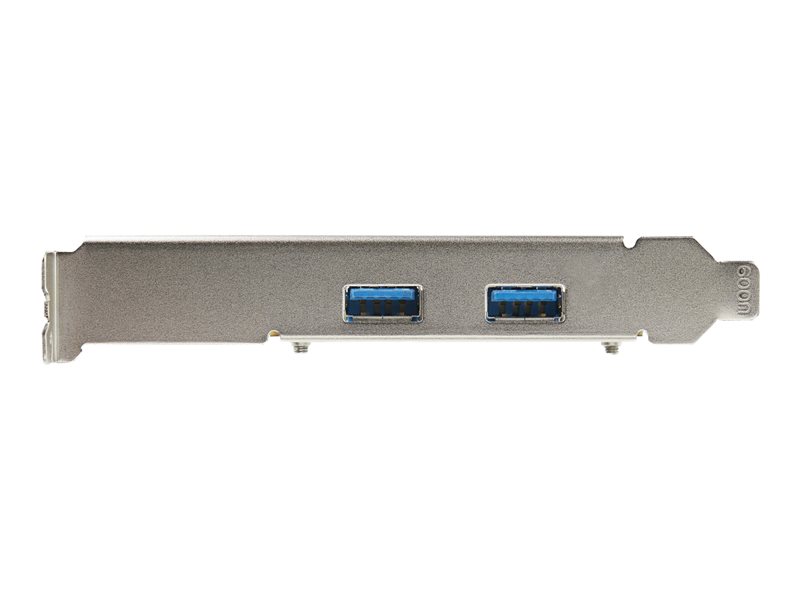

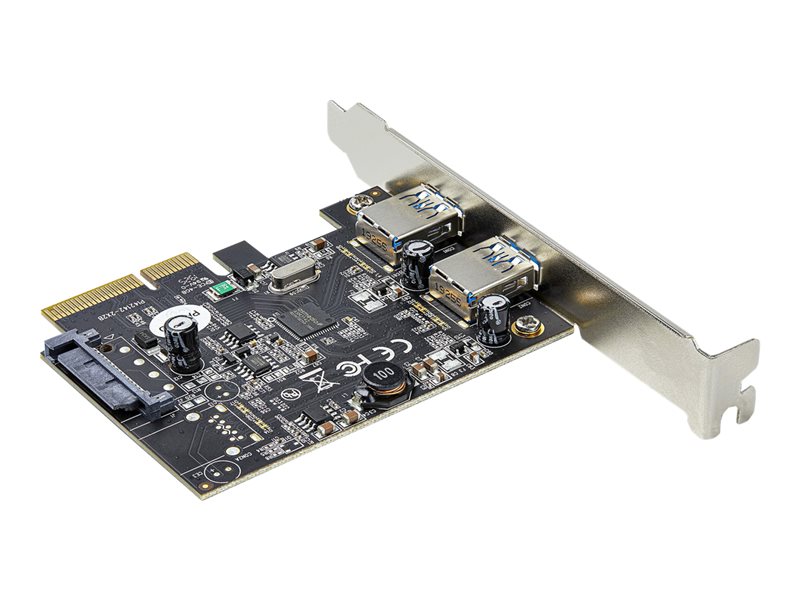

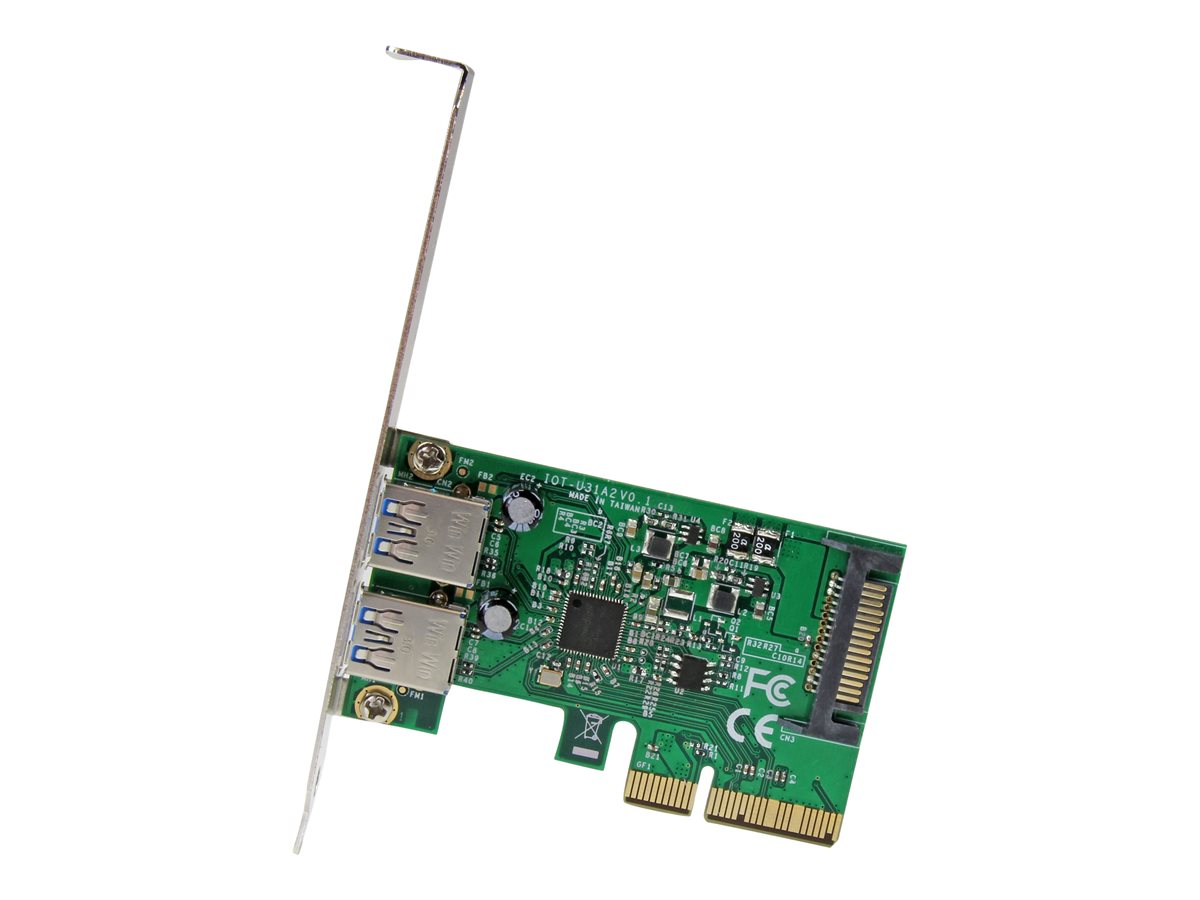

StarTech.com - StarTech.com 2-Port USB PCIe Card 10Gbps/port
USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Windows/Linux - USB adapter - PCIe 3.0 x4 low profile - USB-C 3.1 Gen 2 x 2 - TAA Compliant
StarTech.com
PEXUSB312A3
N/A
0065030887427
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com 2-Port USB PCIe Card 10Gbps/port - USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Windows/Linux - USB adapter - PCIe 3.0 x4 - USB-C 3.1 Gen 2 x 2 - TAA Compliant |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Ports | USB-C 3.1 Gen 2 x 2 |
| Dimensions (WxDxH) | 0.7 in x 3.5 in x 4.7 in |
| Weight | 1.76 oz |
| Data Link Protocol | USB, USB 2.0, USB 3.0, USB 3.1 |
| Data Transfer Rate | 10 Gbps |
| Processor | ASMedia ASM1142 |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1 Gen 2 |
| System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple macOS 10.13 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux 3.5 or later, Linux LTS versions only |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x SATA power - 15 pin Serial ATA power (internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| MTBF | 50,000 hours |
| Compliant Standards | UASP (USB Attached SCSI Protocol), RoHS, WEEE, FCC |
| TAA Compliant | Yes |
| Networking | |
| Ports | USB-C 3.1 Gen 2 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, USB 2.0, SuperSpeed USB 3.0, USB 3.1 |
| Data Transfer Rate | 10 Gbps |
| Features | UASP |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1 Gen 2 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple macOS 10.13 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux 3.5 or later, Linux LTS versions only |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory | |
| Processor | ASMedia ASM1142 |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 3.5 in |
| Height | 4.7 in |
| Weight | 1.76 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.1 in |
| Shipping Depth | 6.3 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 3.53 oz |
