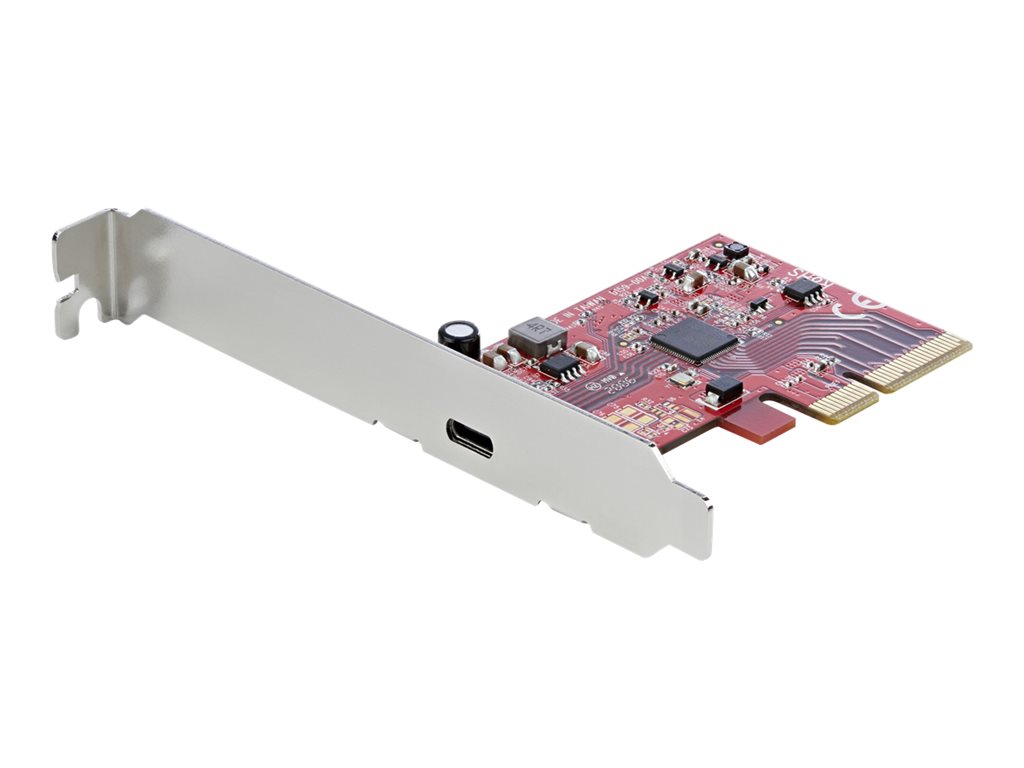

StarTech.com - StarTech.com USB 3.2 Gen 2x2 PCIe Card
USB-C 20Gbps PCI Express 3.0 x4 Controller - USB Type-C Add-On PCIe Expansion Card -Windows/Linux - USB adapter - PCIe 3.0 x4 low profile - USB-C 3.2 Gen 2x2 x 1
StarTech.com
PEXUSB321C
N/A
0065030891264
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com USB 3.2 Gen 2x2 PCIe Card - USB-C 20Gbps PCI Express 3.0 x4 Controller - USB Type-C Add-On PCIe Expansion Card -Windows/Linux - USB adapter - PCIe 3.0 x4 - USB-C 3.2 Gen 2x2 x 1 |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Ports | USB-C 3.2 Gen 2x2 x 1 |
| Dimensions (WxDxH) | 3.1 in x 2 in x 0.9 in |
| Weight | 1.3 oz |
| Data Link Protocol | USB 3.2 Gen 2x2 |
| Data Transfer Rate | 20 Gbps |
| Processor | ASMedia ASM3242 |
| Compliant Standards | USB 2.0, USB 3.0, USB 3.1, USB 3.1 Gen 2, xHCI 1.1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 3.2 Gen 2x2 |
| System Requirements | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Windows 8 / 8.1 / 10 / 11, Microsoft Windows Server 2019, Apple macOS 10.13 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux 3.5 or later, Linux LTS versions only |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.2 Gen 2x2 - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

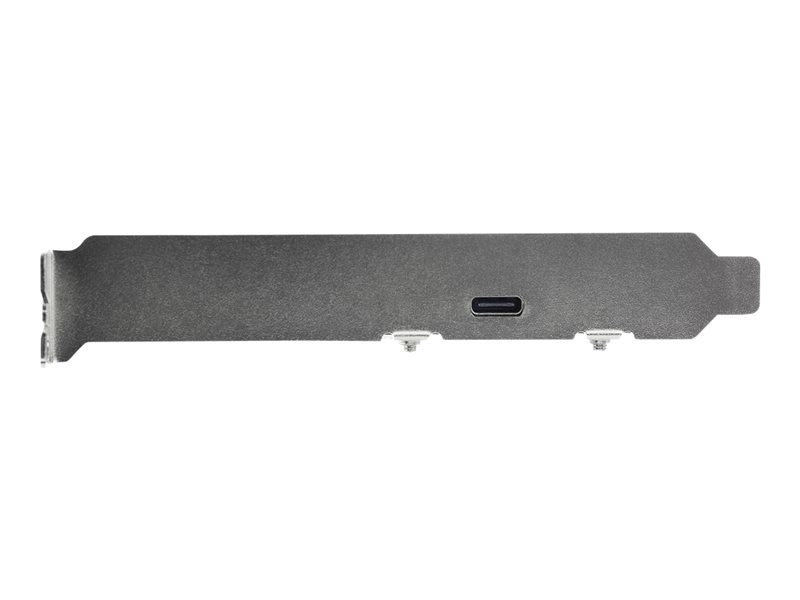

| Included Accessories | Low-profile bracket |
| MTBF | 3,126,209 hours |
| Compliant Standards | FCC, RoHS, UASP (USB Attached SCSI Protocol) |
| Networking | |
| Ports | USB-C 3.2 Gen 2x2 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.2 Gen 2x2 |
| Data Transfer Rate | 20 Gbps |
| Compliant Standards | USB 2.0, USB 3.0, USB 3.1, USB 3.1 Gen 2, xHCI 1.1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 3.2 Gen 2x2 |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Windows 8 / 8.1 / 10 / 11, Microsoft Windows Server 2019, Apple macOS 10.13 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux 3.5 or later, Linux LTS versions only |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 15 - 90% |
| Processor / Memory | |
| Processor | ASMedia ASM3242 |
| Dimensions & Weight | |
| Width | 3.1 in |
| Depth | 2 in |
| Height | 0.9 in |
| Weight | 1.3 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.6 in |
| Shipping Depth | 6.7 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 3.56 oz |
