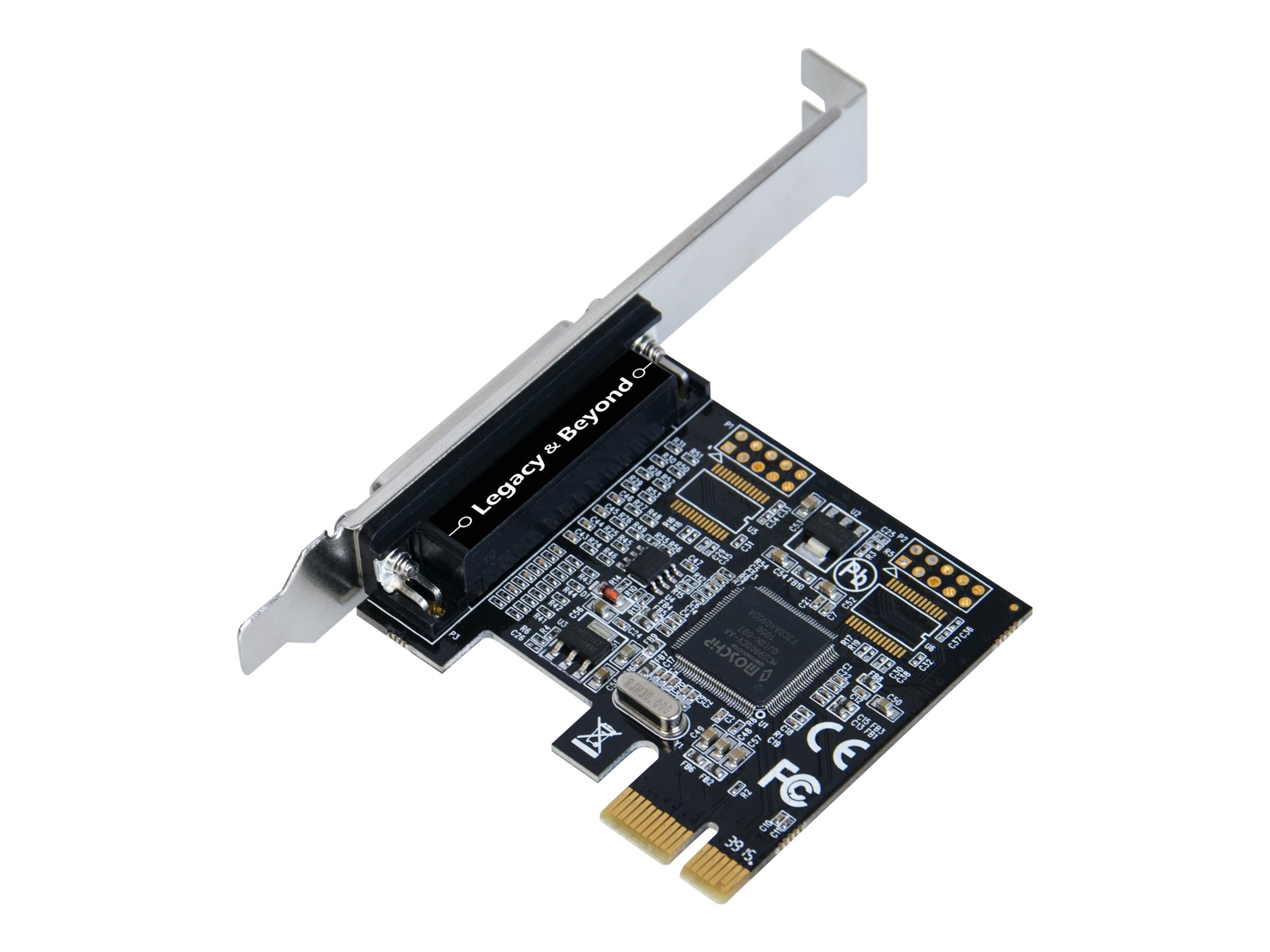

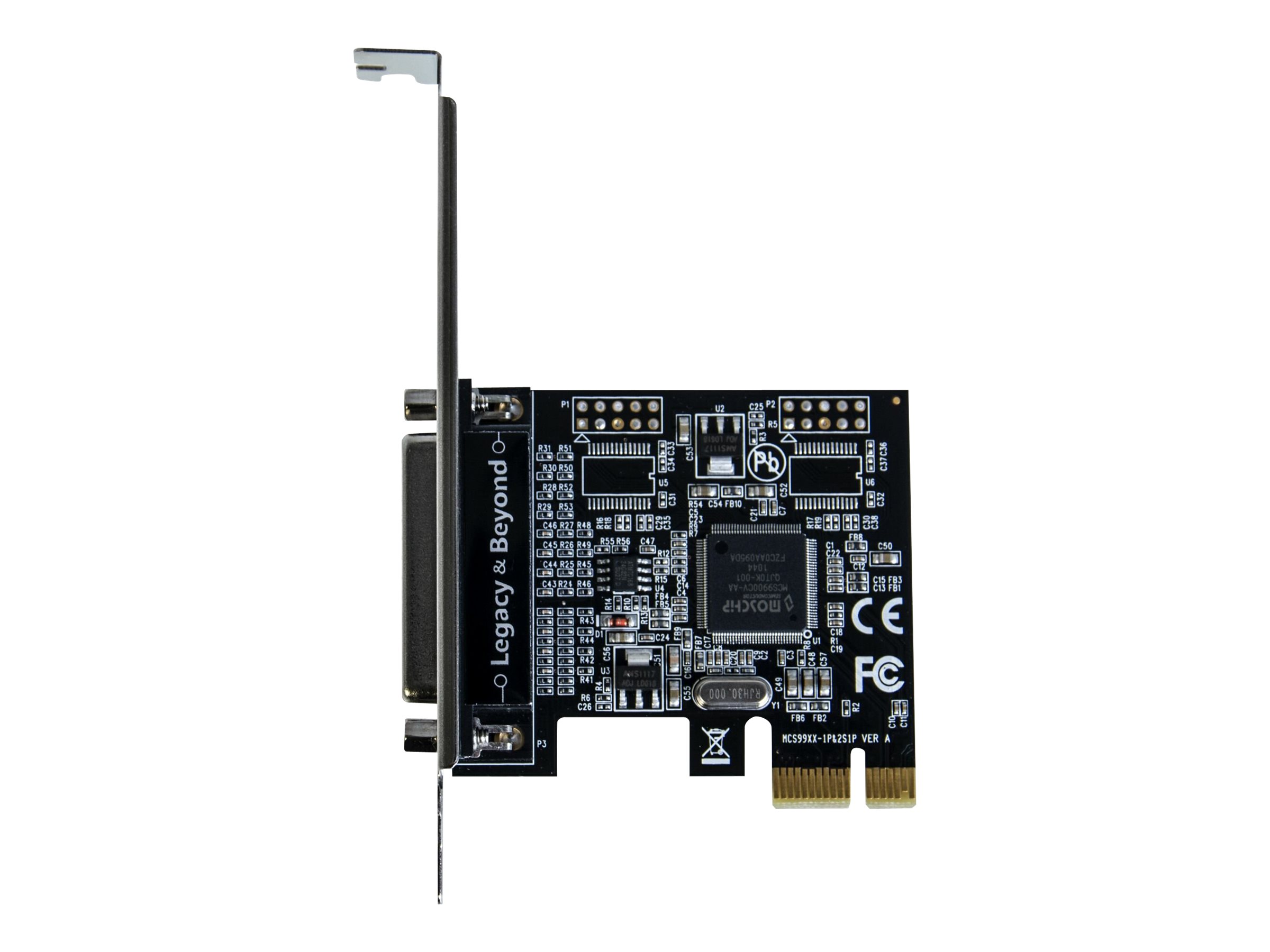

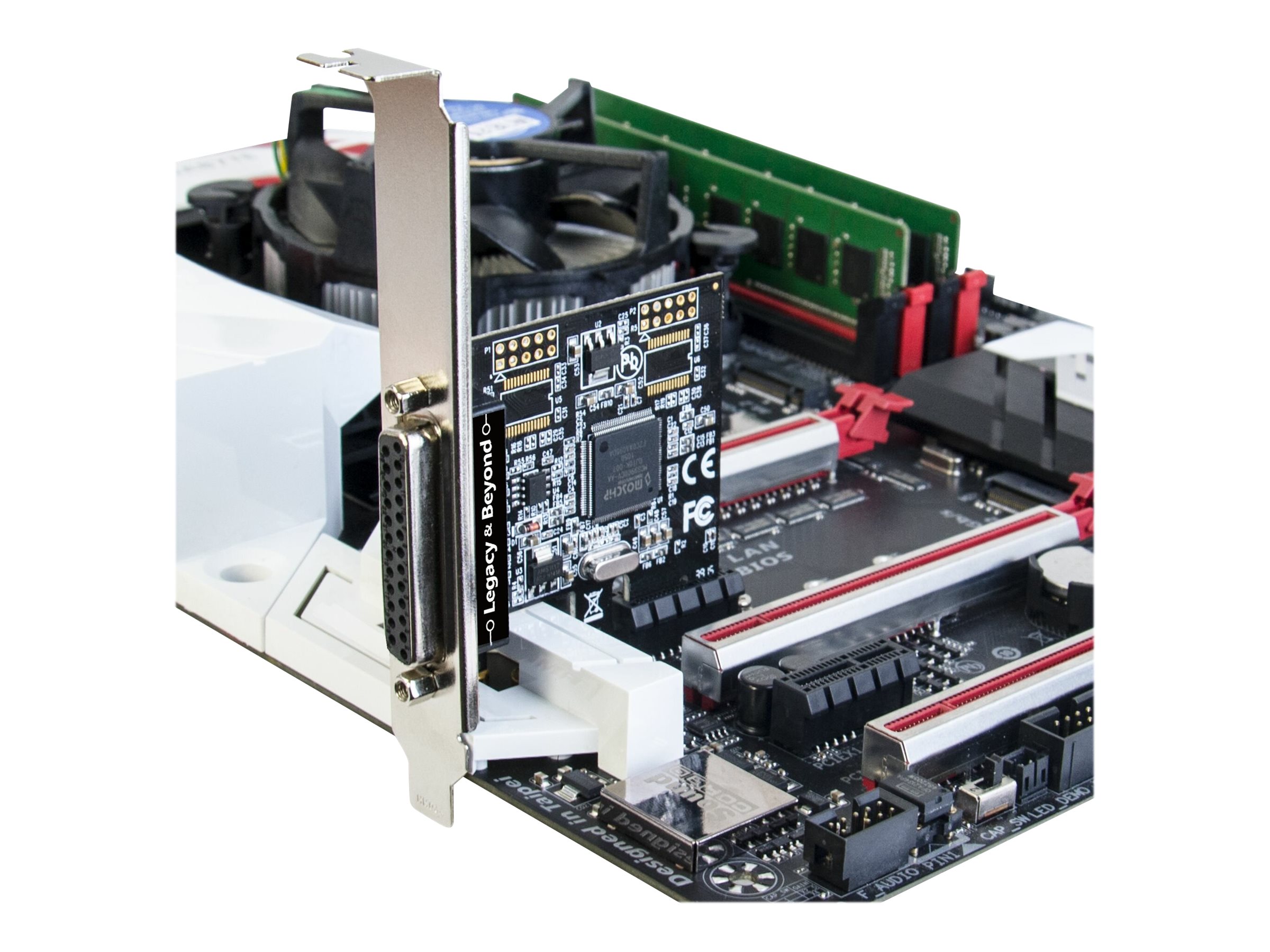

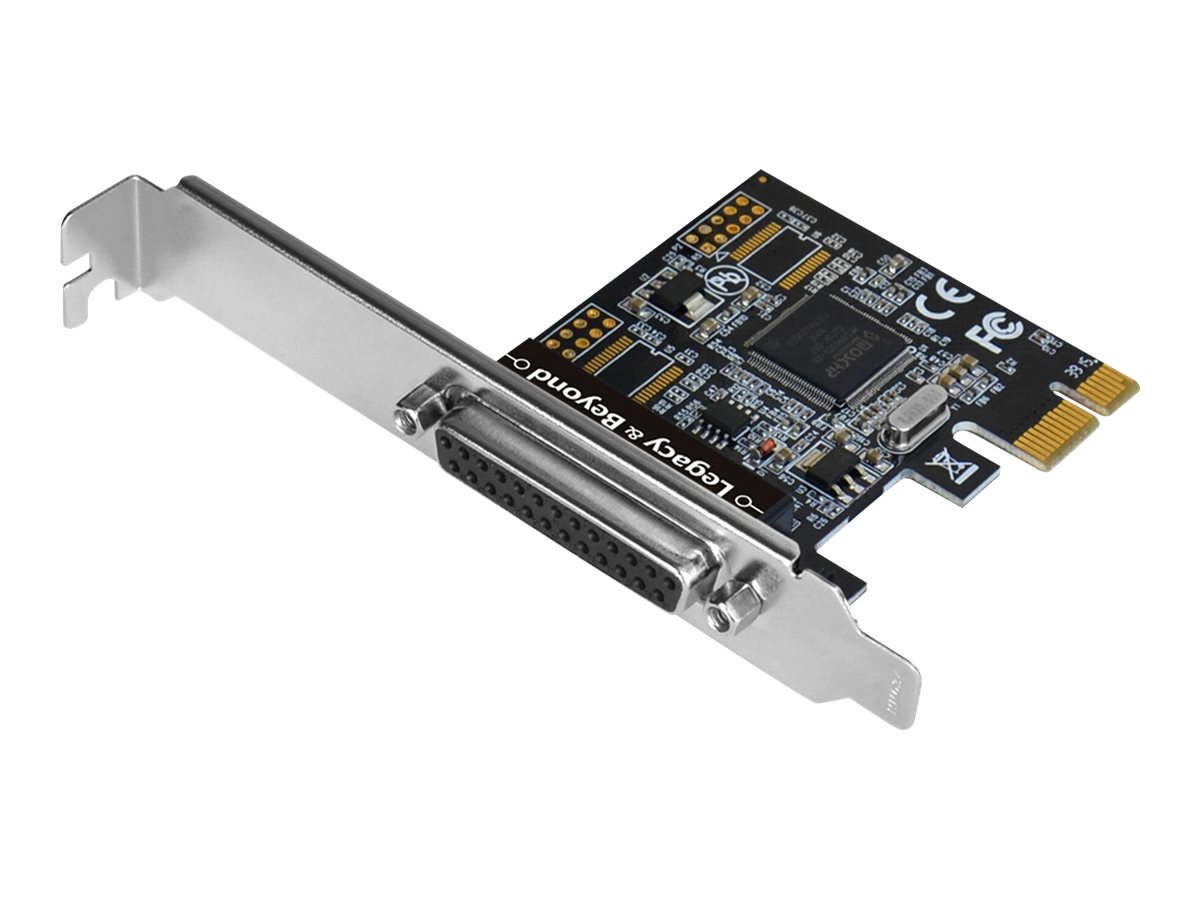

SIIG - SIIG Single Parallel Port PCIe Card
Parallel adapter - PCIe 1.1 - IEEE 1284 x 1 - black
SIIG
LB-P00014-S1
N/A
0662774040103
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | SIIG Single Parallel Port PCIe Card - parallel adapter - PCIe 1.1 - IEEE 1284 x 1 |
| Device Type | Parallel adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| PCI Specification Revision | PCIe 1.1 |
| Ports | IEEE 1284 x 1 |
| Dimensions (WxDxH) | 0.8 in x 3.1 in x 4.7 in |
| Weight | 1.44 oz |
| Data Link Protocol | Parallel |
| Data Transfer Rate | 1.5 Mbps |
| Processor | 1 x ASIX / MosChip MCS9900CV-AA |
| Color | Black |
| System Requirements | Linux Kernel 2.6, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Vista / 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2012 R2 (32/64 bits), Microsoft Windows Server 2016 (32/64 bits) |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Parallel adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| PCI Specification Revision | PCIe 1.1 |
| Expansion / Connectivity | |
| Interfaces | 1 x IEEE 1284 (EPP/ECP) - 9 pin D-Sub (DB-9) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Color | Black |
| Networking | |
| Ports | IEEE 1284 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | Parallel |
| Data Transfer Rate | 1.5 Mbps |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Linux Kernel 2.6, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Vista / 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2012 R2 (32/64 bits), Microsoft Windows Server 2016 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x ASIX / MosChip MCS9900CV-AA |
| Dimensions & Weight | |
| Width | 0.8 in |
| Depth | 3.1 in |
| Height | 4.7 in |
| Weight | 1.44 oz |
