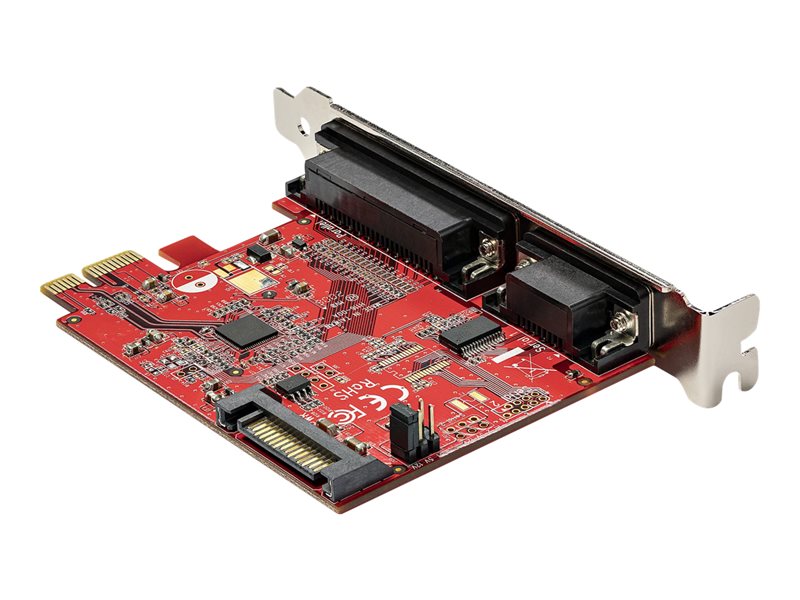

StarTech.com - StarTech.com PCIe Card with Serial and Parallel Port, PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 DB9 Serial Port, Expansion/Controller Card, PCIe Printer Card

Full/Standard Profile (PEX1S1P950) - Parallel/serial adapter - PCIe 2.0 low profile - IEEE 1284 x 1 + RS-232 x 1 - red

StarTech.com
PEX1S1P950
N/A
0065030891844
N/A
New

Price: $42.12

Total Available: 1507

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description StarTech.com PCIe Card with Serial and Parallel Port, PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 DB9 Serial Port, Expansion/Controller Card, PCIe Printer Card - Full/Standard Profile (PEX1S1P950) - parallel/serial adapter - PCIe 2.0 - IEEE 1284 x 1 + RS-232 x 1
Device Type Parallel/serial adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x1
PCI Specification Revision PCIe 2.0
Ports IEEE 1284 x 1 + RS-232 x 1
Dimensions (WxDxH) 3.7 in x 3.1 in x 0.9 in
Weight 2.22 oz
Data Link Protocol Parallel, RS-232
Data Transfer Rate 2.5 Mbps
Processor ASIX AX99100
Color Red
System Requirements Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 2.4.x - 2.6.x LTS versions only
Manufacturer Warranty Limited lifetime warranty
General
Device Type Parallel/serial adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x1
PCI Specification Revision PCIe 2.0
Expansion / Connectivity
Interfaces 1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) ¦ 1 x RS-232 - 9 pin D-Sub (DB-9)
Manufacturer Warranty
Service & Support Limited warranty - technical support - lifetime
Miscellaneous
MTBF 3,188,058 hours
Compliant Standards WHQL, FCC, RoHS
Color Red
Networking
Ports IEEE 1284 x 1 + RS-232 x 1
Connectivity Technology Wired
Data Link Protocol Parallel, RS-232
Data Transfer Rate 2.5 Mbps
Features Flow control, 256-byte FIFO
Software / System Requirements
OS Required Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 2.4.x - 2.6.x LTS versions only
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 185 °F
Humidity Range Operating 15 - 90%
Processor / Memory
Processor ASIX AX99100
Dimensions & Weight
Width 3.7 in
Depth 3.1 in
Height 0.9 in
Weight 2.22 oz
Dimensions & Weight (Shipping)
Shipping Width 6.7 in
Shipping Depth 5.6 in
Shipping Height 1.2 in
Shipping Weight 4.48 oz
