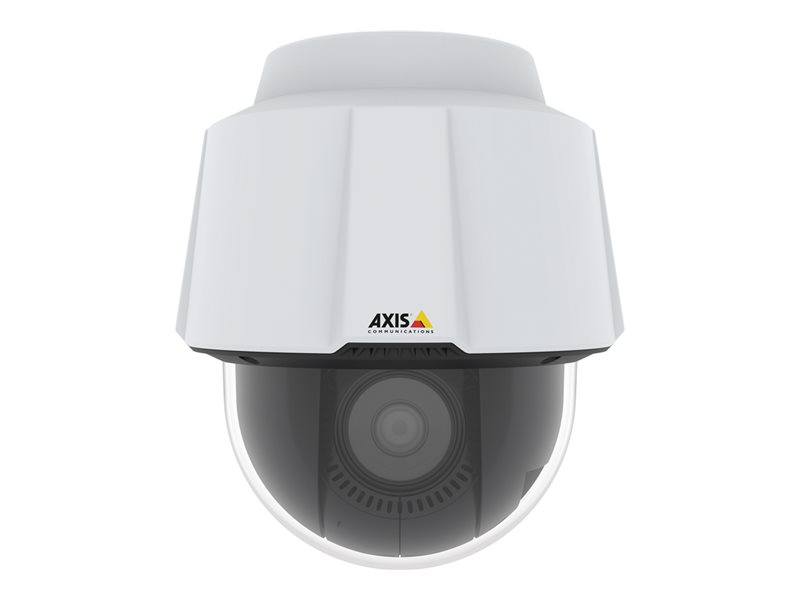

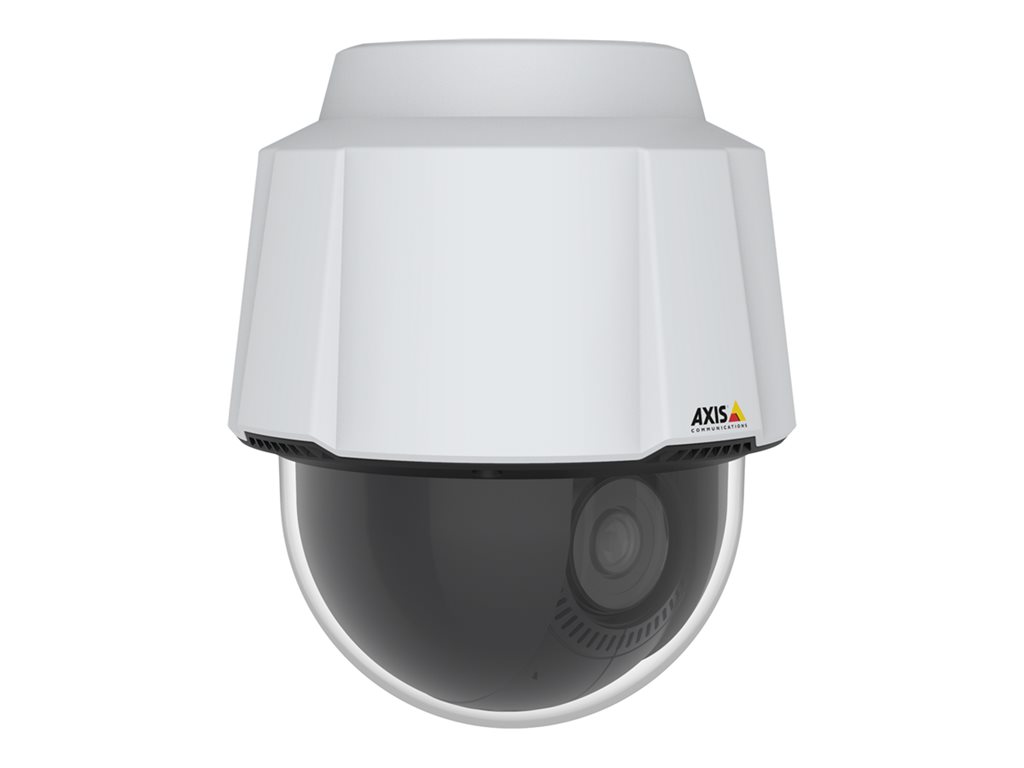

Axis Communications - AXIS P5655-E 60 Hz
Network surveillance camera - PTZ - outdoor, indoor - color (Day&Night) - 1920 x 1080 - 1080p - auto iris - audio - LAN 10/100 - MPEG-4, MJPEG, H.264, H.265 - PoE Class 4
Axis Communications
01682-004
N/A
7331021076006
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS P5655-E 60 Hz - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor, indoor |
| Audio | Yes: two-way audio capability |
| Camera Mount Type | Ceiling mount |
| Dimensions (WxDxH) | 7.4 in x 7.4 in x 8.5 in |
| Weight | 5.51 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 32 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Optical Sensor Type | CMOS - 1/2.8" |
| Minimum Illumination | 0.1 lux - color - F1.4 - 30 IRE ¦ 0.02 lux - B&W - F1.4 - 30 IRE ¦ 0.12 lux - color - F1.4 - 50 IRE ¦ 0.04 lux - B&W - F1.4 - 50 IRE |
| Focal Length | 4.3 mm - 137.6 mm |
| Focus Adjustment | Automatic |
| Lens Iris | F/1.4-4.0 - auto iris |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | 180 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 4 |
| Features | Backlight Compensation (BLC), manual exposure, sharpness control, white balance, color control, progressive scanning, brightness control, contrast control, Wide Dynamic Range (WDR), 256 preset positions, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, infrared-cut filter, Forensic WDR, guard tour, focus recall, Lightfinder 2.0 technology |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -22 °F - 122 °F; 10 - 100% (condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | AAC, G.726, LPCM, G.711, OPUS |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Width | 7.4 in |
| Depth | 7.4 in |
| Height | 8.5 in |
| Weight | 5.51 lbs |
| Localization | United States |
| Expansion / Connectivity | |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | RJ45 push-pull connector, ceiling mount bracket, AXIS PoE+ Midspan (1 port), AVHS Authentication key, spring pipe adapter, U-profile pipe adapter |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, IS13252, FCC CFR47 Part 15 B Class A, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEEE 802.3at, IEC/EN 62262, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267 |
| Color | White |
| Power | |
| Power Requirements | PoE Class 4 |
| Power Device | AC 120/230 V 19 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% (condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor, indoor |
| Digital Video Format | MPEG-4, MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Digital Zoom | 12 |
| Exposure Range | 2 sec - 1/66500 sec |
| Minimum Illumination | 0.1 lux - color - F1.4 - 30 IRE ¦ 0.02 lux - B&W - F1.4 - 30 IRE ¦ 0.12 lux - color - F1.4 - 50 IRE ¦ 0.04 lux - B&W - F1.4 - 50 IRE |
| Digital Video Capture Resolution | 1920 x 1080, 320 x 180 |
| Frame Rate (max) | 60 frames per second |
| RAM | 1024 MB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), manual exposure, sharpness control, white balance, color control, progressive scanning, brightness control, contrast control, Wide Dynamic Range (WDR), 256 preset positions, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, infrared-cut filter, Forensic WDR, guard tour, focus recall, Lightfinder 2.0 technology |
| Lens Construction | |
| Optical Zoom | 32 x |
| Focal Length | 4.3 mm - 137.6 mm |
| Lens Iris | F/1.4-4.0 auto iris |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.4 - 58.7 |
| Vertical Field of View (degree) | 1.4 - 35.7 |
| Image Sensor | |
| Type | CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, NTCIP |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 350 |
| Tilting | |
| Range (degree) | 180 |
| Speed (degree/sec) | Up to 350 |
