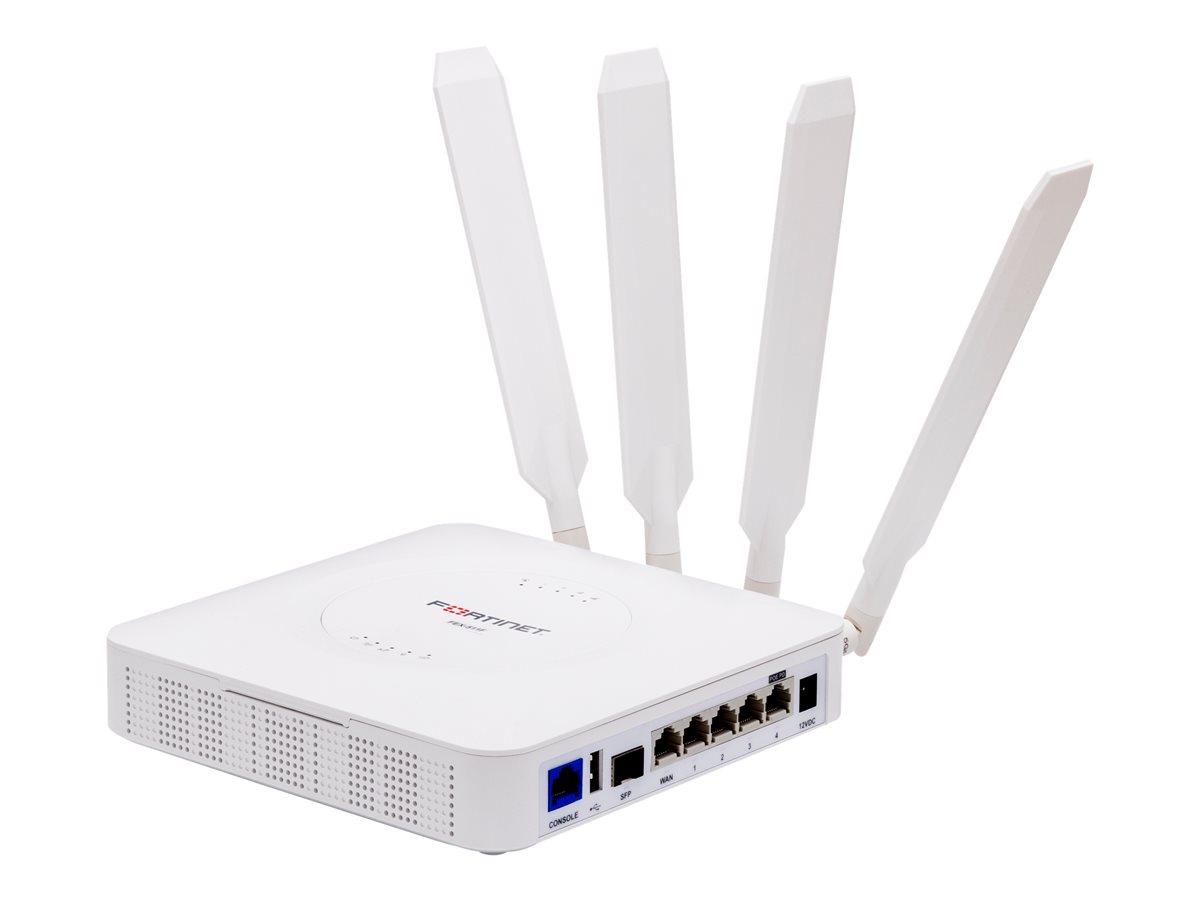

Fortinet - Fortinet FortiExtender 511F
Router - WWAN 1GbE - Bluetooth - wall-mountable - for P/N: FEV-211F, FEX-30F-WIFI
Fortinet
FEX-511F
N/A
0195875035025
N/A
New
Product Description
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | Fortinet FortiExtender 511F - router - WWAN - Bluetooth - desktop, wall-mountable |
Device Type | Router - wireless cellular modem |
Enclosure Type | Desktop, wall-mountable |
Cellular Protocol | FDD LTE, TDD LTE |
Cellular Band | LTE B13, LTE B17, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B29, LTE B8, LTE B66, LTE B30, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, HSPA+ B1, HSPA+ B2, HSPA+ B4, HSPA+ B5, HSPA+ B6, HSPA+ B8, HSPA+ B19, 5G n78, HSPA+ B3, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n20, 5G n25, 5G n28, 5G n40, 5G n41, 5G n66, 5G n71, 5G n77, 5G n79, LTE B34, 5G n38, 5G n48, WCDMA B1, WCDMA B2, WCDMA B5, WCDMA B8, WCDMA B6, WCDMA B19, WCDMA B4, WCDMA B3, UMTS B1, UMTS B2, UMTS B4, UMTS B5, UMTS B8, UMTS B6, UMTS B3, UMTS B19 |
WAN Ports Qty | 1 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth |
Features | VLAN support, PoE+, CAPWAP support, VXLAN, 2x2 MIMO technology, 4x4 MIMO technology, GNSS Bias |
Compliant Standards | IEEE 802.3af, IEEE 802.3at |
Dimensions (WxDxH) | 7.1 in x 7.1 in x 1.8 in |
Weight | 17.64 oz |
Designed For | P/N: FEV-211F, FEX-30F-WIFI |
General | |
Device Type | Router |
Enclosure Type | Desktop, wall-mountable |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth |
Features | VLAN support, PoE+, CAPWAP support, VXLAN, 2x2 MIMO technology, 4x4 MIMO technology, GNSS Bias |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15 B, RSS-102, JATE, IC, FCC Part 15 C, FCC, UL 60950-1, EN 60950-1, TELEC, PTCRB, GCF, EN 62311, RCM, EN 300 328, EMC 2014/30/EU, EN 301 489-1, LVD 2014/35/EU, RSS-247, EN 62479, EN 62368-1, EN 55032, IEC/EN 60950-1, EN 301 489-19, EN 55035, CSA 60950-1, EN 301 489-17, EN 301 489-52, EN 303 413, RED 2014/53/EU, CSA 62368-1, IEC/EN 62368-1, EN 301 908-1, EN 301 908-2, EN 301 908-13, 47 CFR Part 2.1091, EN 50382, EN 50665, EN 50663 |
Expansion / Connectivity | |
Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x 1000Base-X - SFP (mini-GBIC) ¦ Antenna: 4 x SMA |
Expansion Slots | 2 (total) / 2 (free) x Micro-SIM |
Power | |
Power Consumption Operational | 8 Watt |
Communications | |
Type | Wireless cellular modem |
Cellular Protocol | FDD LTE, TDD LTE |
Cellular Band | LTE B13, LTE B17, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B39, LTE B28, LTE B29, LTE B8, LTE B66, LTE B30, LTE B40, LTE B41, LTE B38, LTE B18, LTE B19, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71, HSPA+ B1, HSPA+ B2, HSPA+ B4, HSPA+ B5, HSPA+ B6, HSPA+ B8, HSPA+ B19, 5G n78, HSPA+ B3, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n20, 5G n25, 5G n28, 5G n40, 5G n41, 5G n66, 5G n71, 5G n77, 5G n79, LTE B34, 5G n38, 5G n48, WCDMA B1, WCDMA B2, WCDMA B5, WCDMA B8, WCDMA B6, WCDMA B19, WCDMA B4, WCDMA B3, UMTS B1, UMTS B2, UMTS B4, UMTS B5, UMTS B8, UMTS B6, UMTS B3, UMTS B19 |
Dimensions & Weight | |
Width | 7.1 in |
Depth | 7.1 in |
Height | 1.8 in |
Weight | 17.64 oz |
Antenna | |
Antenna | External |
Antenna Qty | 4 |
Compatibility Information | |
Designed For | P/N: FEV-211F, FEX-30F-WIFI |
