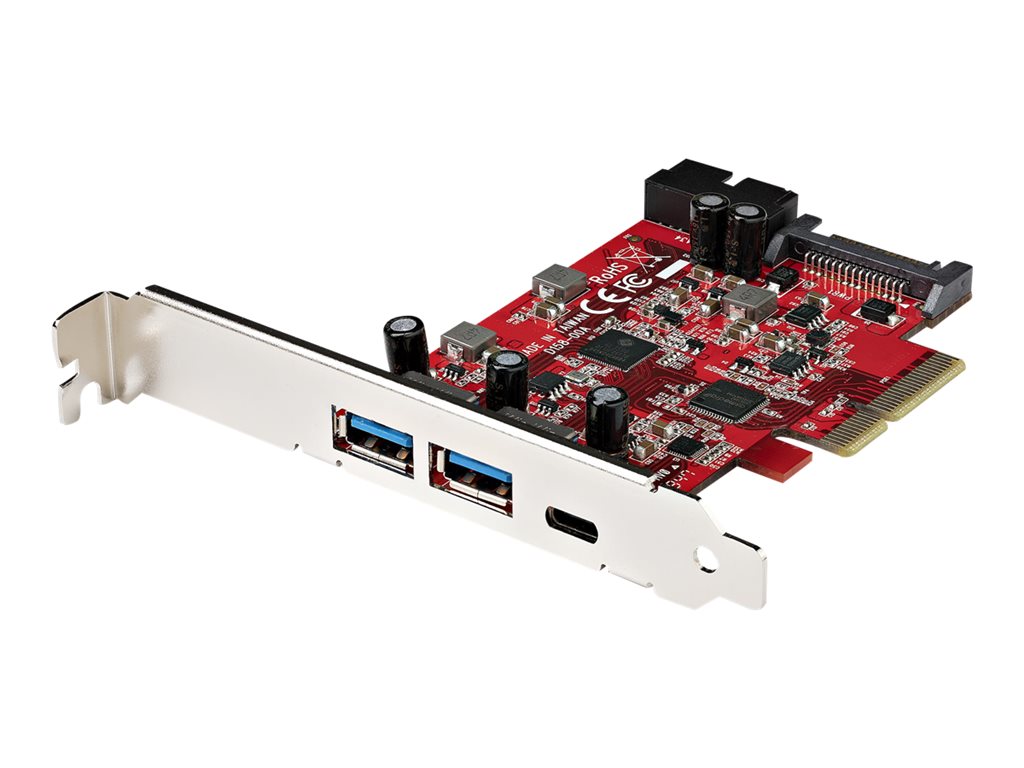

StarTech.com - StarTech.com 5-Port USB PCIe Card, 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A, 1x 2 Port IDC (Internal 5Gbps USB Header Expansion), USB C PCIe Card, PCI Express USB Controller
Windows/macOS/Linux (PEXUSB312A1C1H) - USB adapter - PCIe 3.0 x4 - USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1 - red
StarTech.com
PEXUSB312A1C1H
N/A
0065030888325
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com 5-Port USB PCIe Card, 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A, 1x 2 Port IDC (Internal 5Gbps USB Header Expansion), USB C PCIe Card, PCI Express USB Controller - Windows/macOS/Linux (PEXUSB312A1C1H) - USB adapter - PCIe 3.0 x4 - USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1 |
| Device Type | USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Ports | USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1 |
| Dimensions (WxDxH) | 2.7 in x 4 in x 0.6 in |
| Weight | 2.12 oz |
| Data Link Protocol | USB 3.2 Gen 2, USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 1 |
| Data Transfer Rate | 10 Gbps |
| Processor | ASMedia ASM1142 |
| Compliant Standards | USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 1, USB 3.2 Gen 2 |
| Color | Red |
| System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 3.5 or later, Linux LTS versions only, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 - 24 pin USB-C ¦ 1 x SATA power - 15 pin Serial ATA power (internal) ¦ 1 x USB 3.0 - 20 pin IDC (internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| MTBF | 1,677,495 hours |
| Compliant Standards | UASP (USB Attached SCSI Protocol), RoHS, WEEE, FCC |
| Color | Red |
| Networking | |
| Ports | USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.2 Gen 2, USB 2.0, SuperSpeed USB 3.0, USB 3.1, USB 3.2 Gen 1 |
| Data Transfer Rate | 10 Gbps |
| Features | UASP |
| Compliant Standards | USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 1, USB 3.2 Gen 2 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 3.5 or later, Linux LTS versions only, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 15 - 90% (non-condensing) |
| Processor / Memory | |
| Processor | ASMedia ASM1142 |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 4 in |
| Height | 0.6 in |
| Weight | 2.12 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.6 in |
| Shipping Depth | 6.7 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 4.41 oz |
