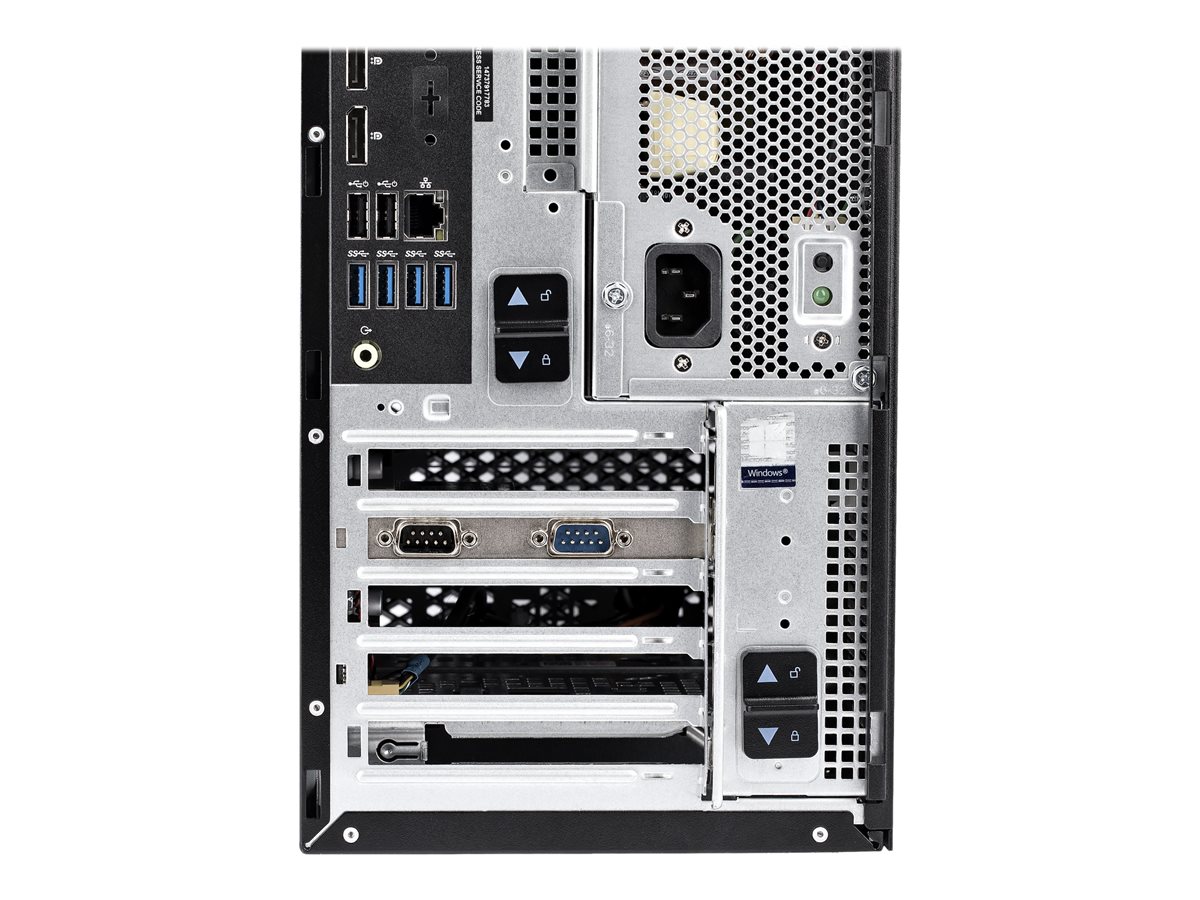

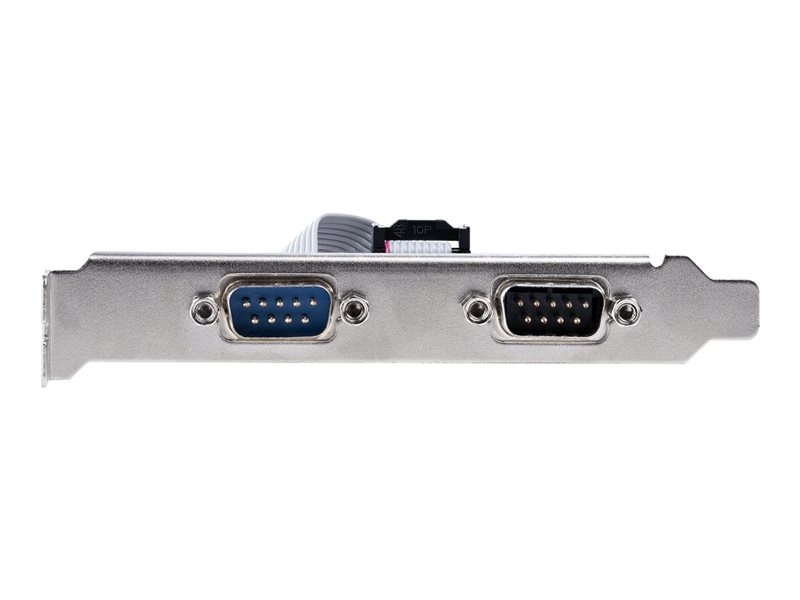

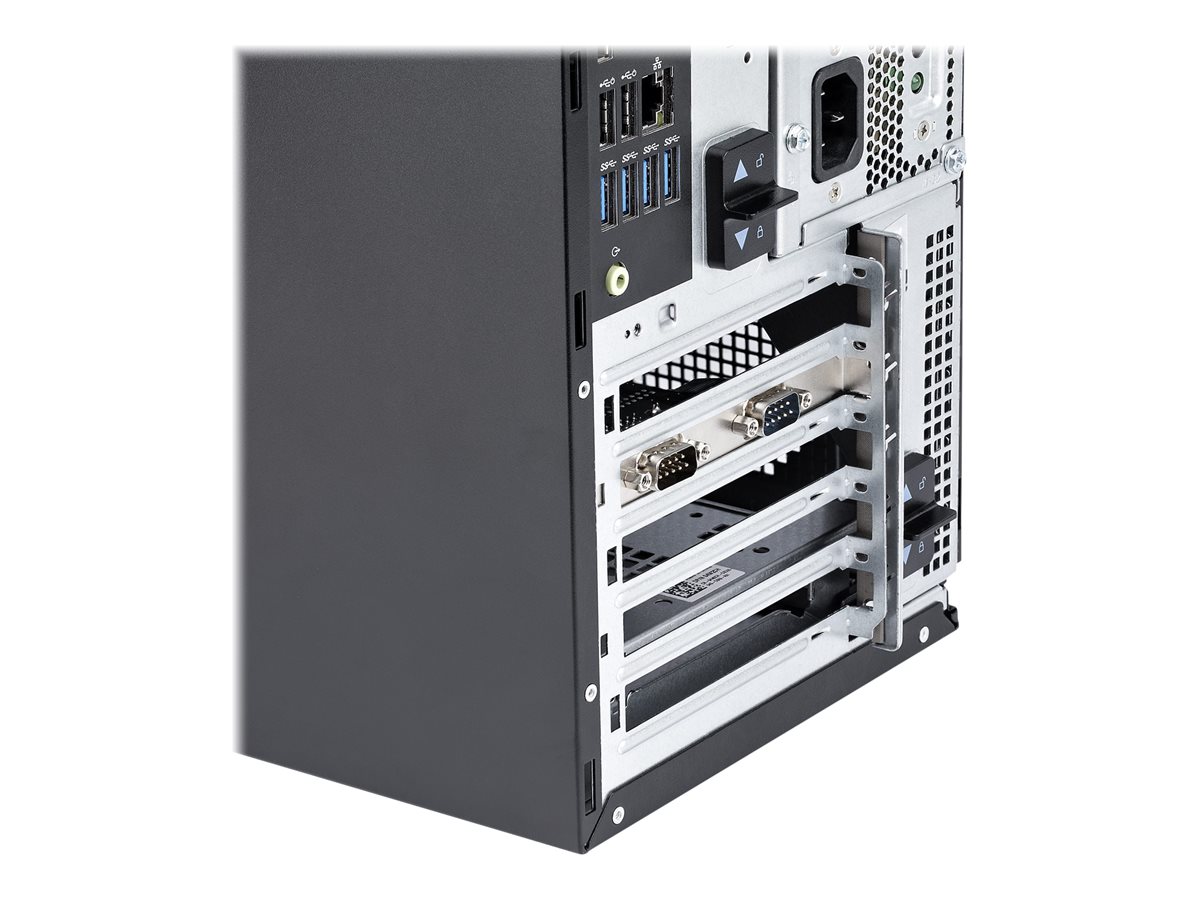

StarTech.com - StarTech.com 2-Port PCI RS232 Serial Adapter Card, PCI Serial Port Expansion Controller Card, PCI to Dual Serial DB9 Card, Standard (Installed) & Low Profile Brackets, Windows/Linux
Dual Port PCI Serial Card (PCI2S5502) - Serial adapter - PCI low profile - RS-232 x 2 - black
StarTech.com
PCI2S5502
N/A
0065030891318
N/A
New
Product Description
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | StarTech.com 2-Port PCI RS232 Serial Adapter Card, PCI Serial Port Expansion Controller Card, PCI to Dual Serial DB9 Card, Standard (Installed) & Low Profile Brackets, Windows/Linux - Dual Port PCI Serial Card (PCI2S5502) - serial adapter - PCI - RS-232 x 2 |
Device Type | Serial adapter |
Form Factor | Plug-in card - low profile |
Interface (Bus) Type | PCI |
Ports | RS-232 x 2 |
Dimensions (WxDxH) | 0.9 in x 5.3 in x 4.7 in |
Weight | 4.97 oz |
Cabling Type | Serial RS-232 |
Data Link Protocol | RS-232 |
Network / Transport Protocol | SPP |
Processor | MCS9865 |
Compliant Standards | 16C550 UART |
Color | Black |
System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10, Linux 2.6.x to 5.x LTS versions, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
Manufacturer Warranty | Limited lifetime warranty |
General | |
Device Type | Serial adapter |
Form Factor | Plug-in card - low profile |
Interface (Bus) Type | PCI |
Expansion / Connectivity | |
Interfaces | 2 x RS-232 - 9 pin D-Sub (DB-9) |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime |
Miscellaneous | |
Included Accessories | 2 x low-profile bracket |
Compliant Standards | WHQL, RoHS, FCC, WEEE, RCM |
Color | Black |
Networking | |
Ports | RS-232 x 2 |
Connectivity Technology | Wired |
Cabling Type | Serial RS-232 |
Data Link Protocol | RS-232 |
Network / Transport Protocol | SPP |
Features | 256-byte FIFO |
Compliant Standards | 16C550 UART |
Software / System Requirements | |
OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Linux 2.6.x to 5.x LTS versions, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 158 °F |
Humidity Range Operating | 10 - 90% RH |
Processor / Memory | |
Processor | MCS9865 |
Dimensions & Weight | |
Width | 0.9 in |
Depth | 5.3 in |
Height | 4.7 in |
Weight | 4.97 oz |
Dimensions & Weight (Shipping) | |
Shipping Width | 5.6 in |
Shipping Depth | 6.7 in |
Shipping Height | 1.2 in |
Shipping Weight | 6 oz |
