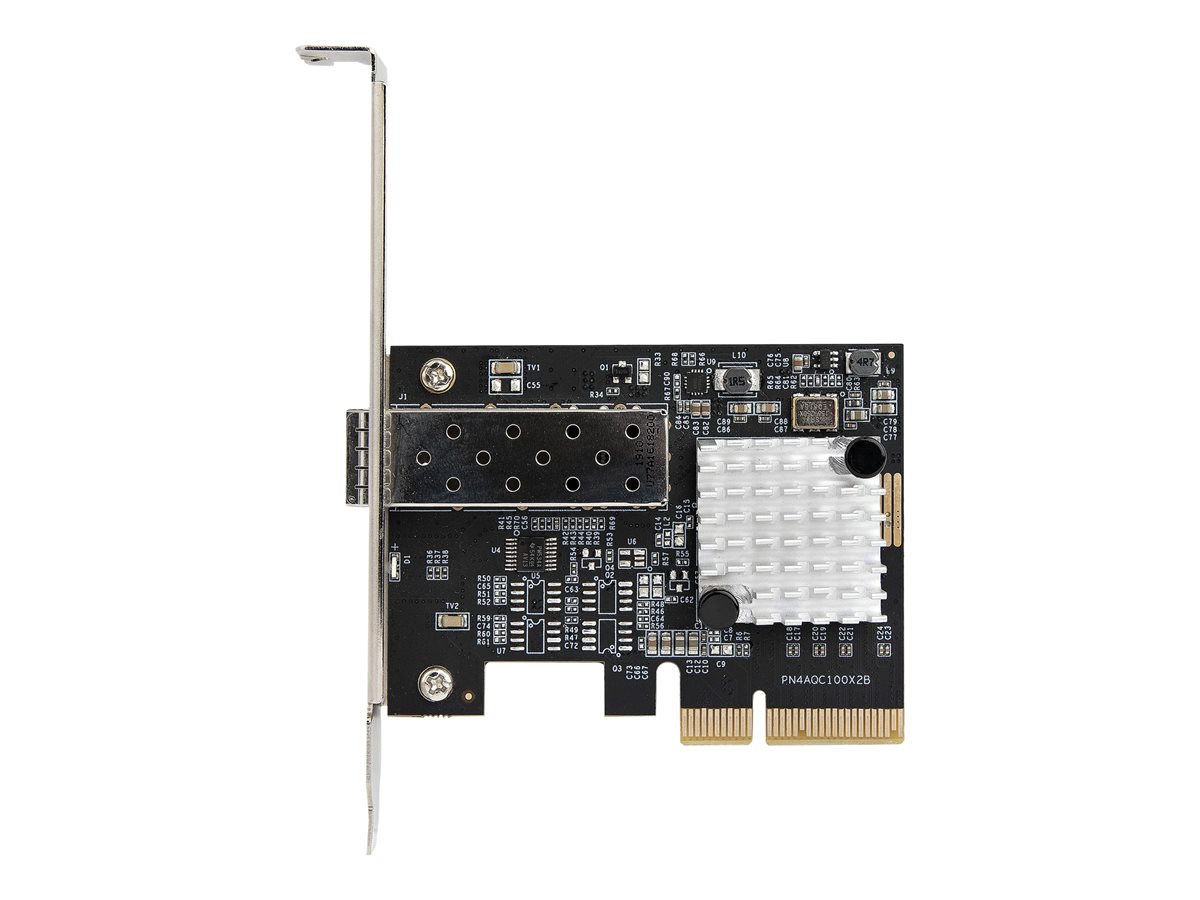

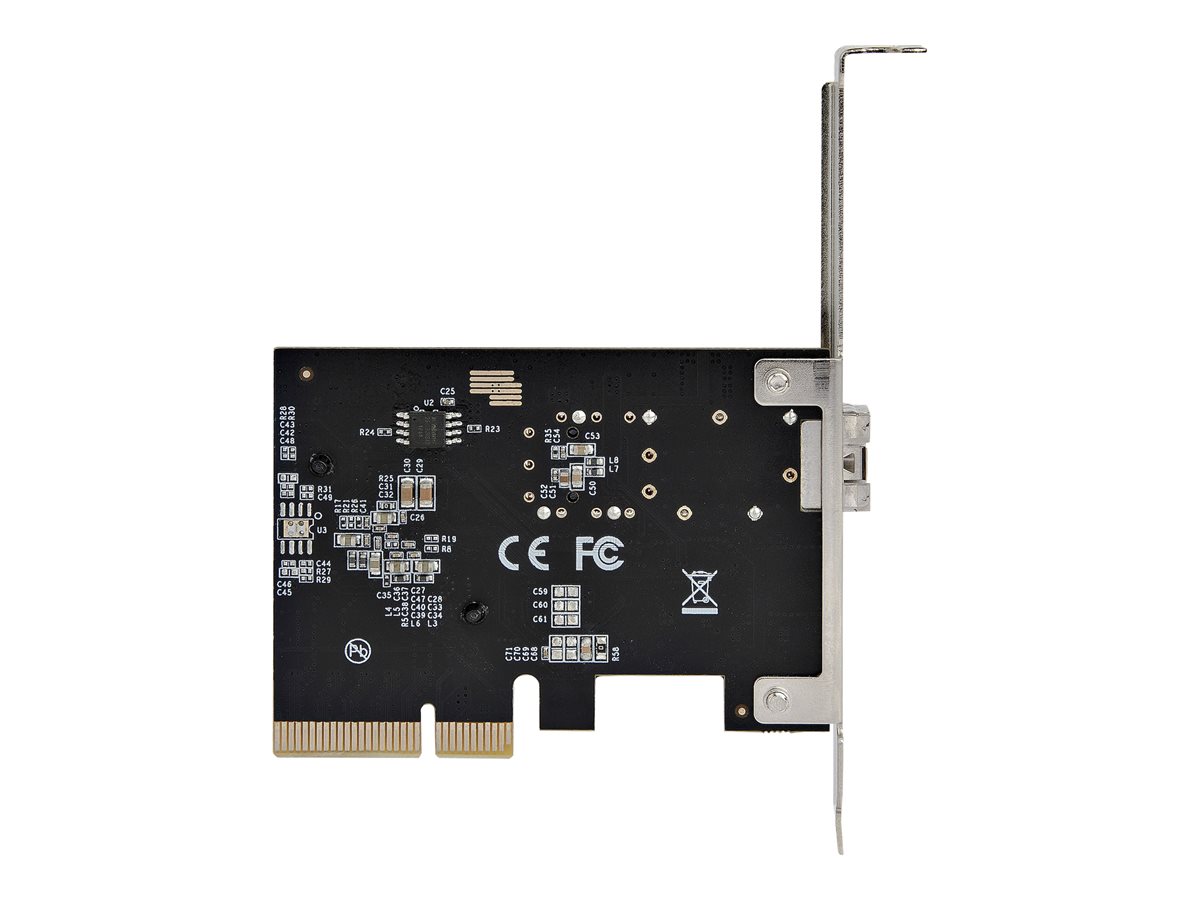

StarTech.com - StarTech.com 10G PCIe SFP+ Card, Single SFP+ Port Network Adapter w/ Low Profile, Open SFP+ for MSA-Compliant Modules / Direct-Attach Cables (DAC), 10 Gigabit Fiber PCIe NIC Card

PCI Express SFP+ Network Card - Network adapter - PCIe x4 - 10 Gigabit SFP+ x 1

StarTech.com
PEX10GSFP
N/A
0065030891295
N/A
New

Price: $143.32

Total Available: 338

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description StarTech.com 10G PCIe SFP+ Card, Single SFP+ Port Network Adapter w/ Low Profile, Open SFP+ for MSA-Compliant Modules / Direct-Attach Cables (DAC), 10 Gigabit Fiber PCIe NIC Card - PCI Express SFP+ Network Card - network adapter - PCIe x4 - 10 Gigabit SFP+ x 1
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express x4
Ports 10 Gigabit SFP+ x 1
Dimensions (WxDxH) 0.7 in x 3.7 in x 4.8 in
Weight 1.94 oz
Cabling Type Ethernet 10GBase-LR, Ethernet 10GBase-SR
Data Link Protocol 10 GigE
Data Transfer Rate 20 Gbps
Capacity Jumbo frame size: 9000
Processor Aquantia AQC100S
Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3aq
Manufacturer Warranty 2-year warranty
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express x4
Expansion / Connectivity
Interfaces 1 x 10GBase-LR - SFP+
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Miscellaneous

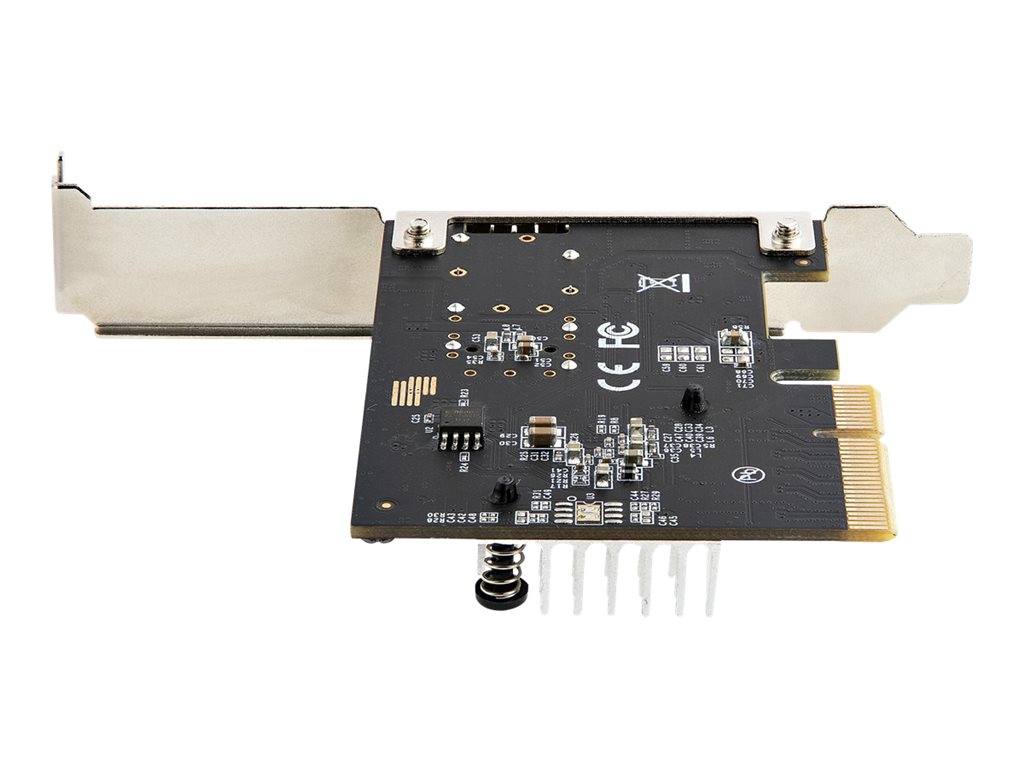

Included Accessories Low-profile bracket
Compliant Standards FCC, RoHS, WEEE, MSA, RCM
Networking
Ports 10 Gigabit SFP+ x 1
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-LR, Ethernet 10GBase-SR
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 20 Gbps
Capacity Jumbo frame size: 9000
Features Flow control, full duplex capability, Jumbo Frames support, Link Aggregation, VLAN Tagging
Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3aq
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
Humidity Range Operating 20 - 80% RH
Processor / Memory
Processor Aquantia AQC100S
Dimensions & Weight
Width 0.7 in
Depth 3.7 in
Height 4.8 in
Weight 1.94 oz
Dimensions & Weight (Shipping)
Shipping Width 6.7 in
Shipping Depth 5.5 in
Shipping Height 1.2 in
Shipping Weight 5.11 oz
