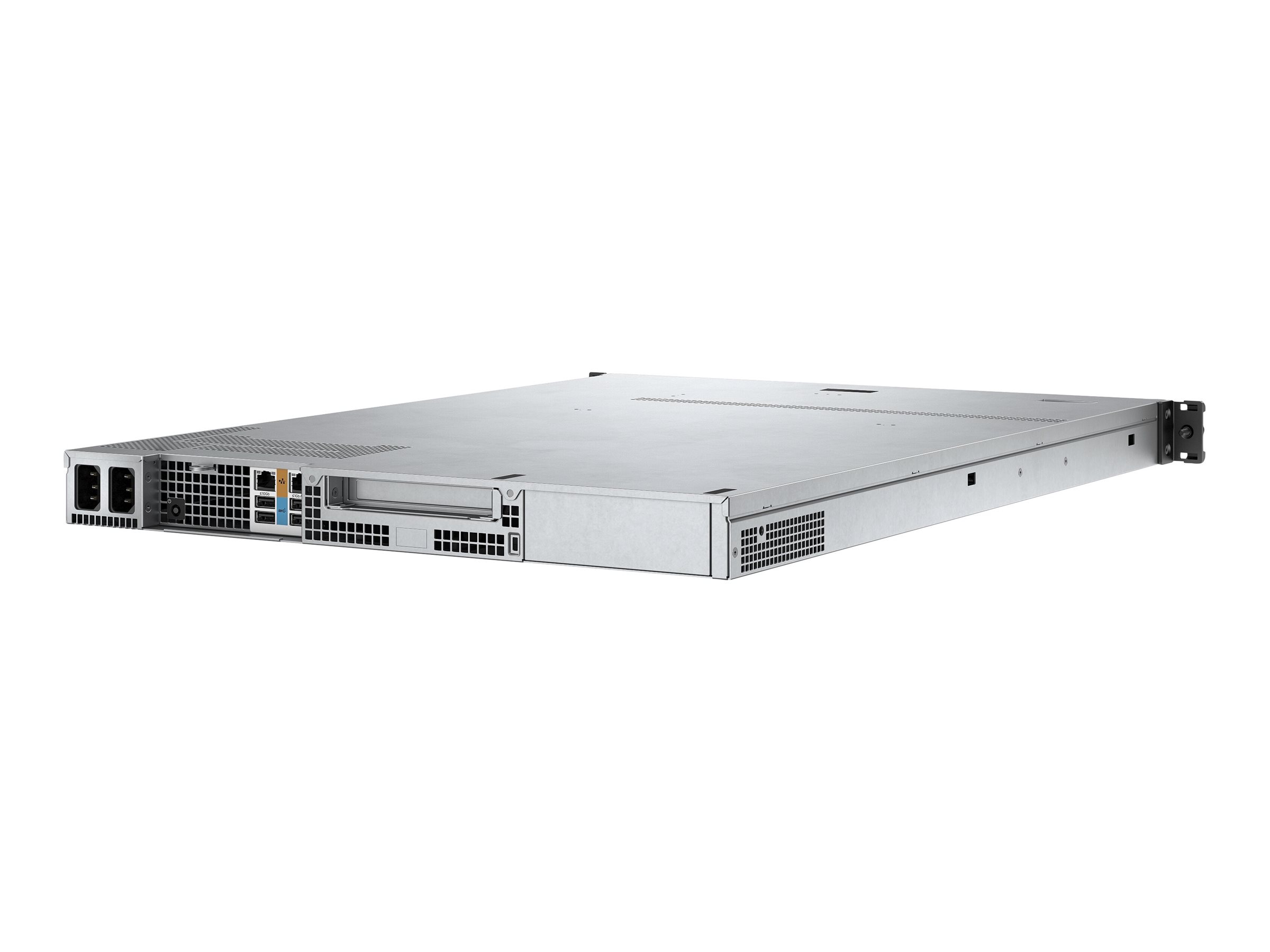

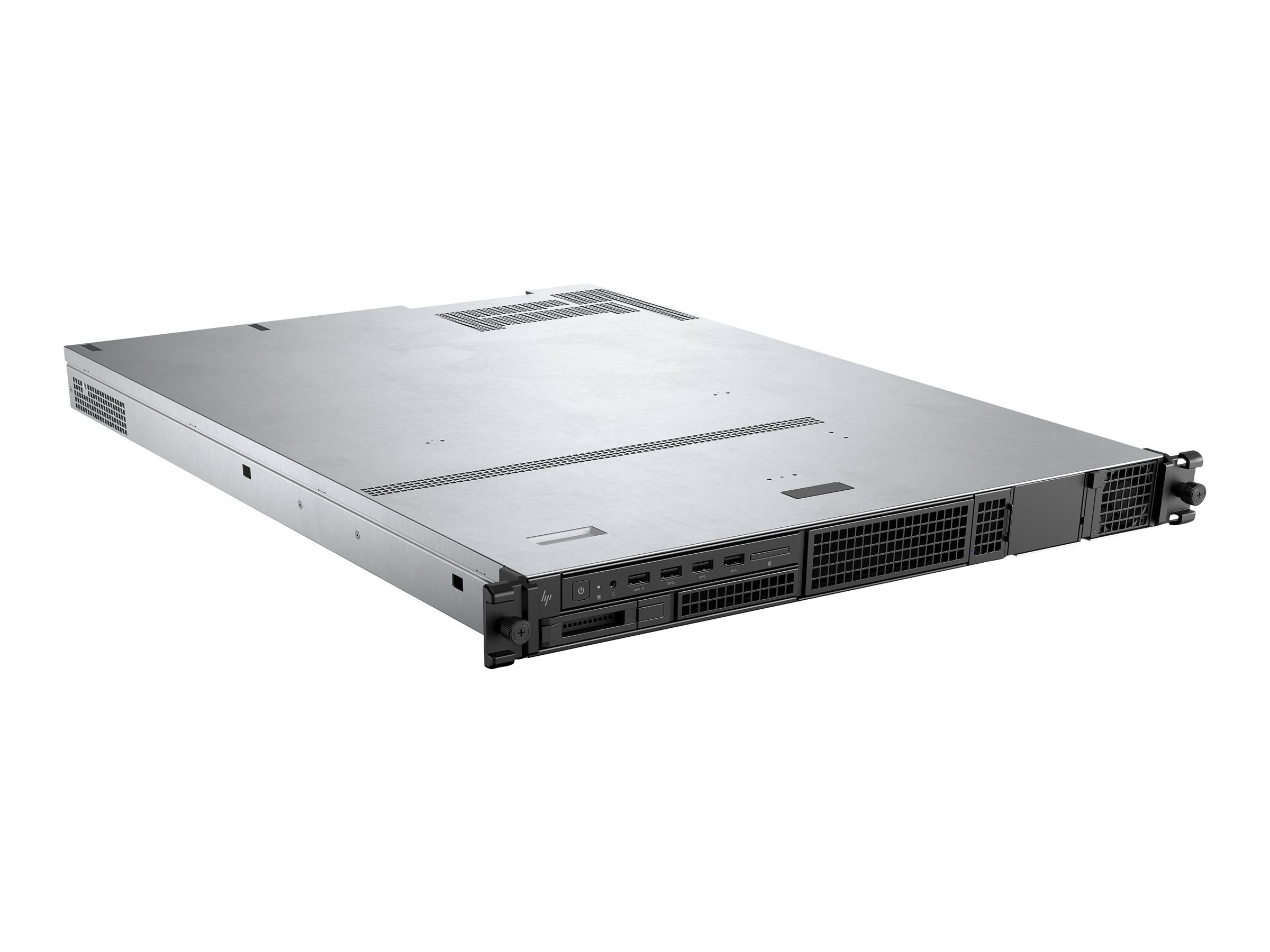

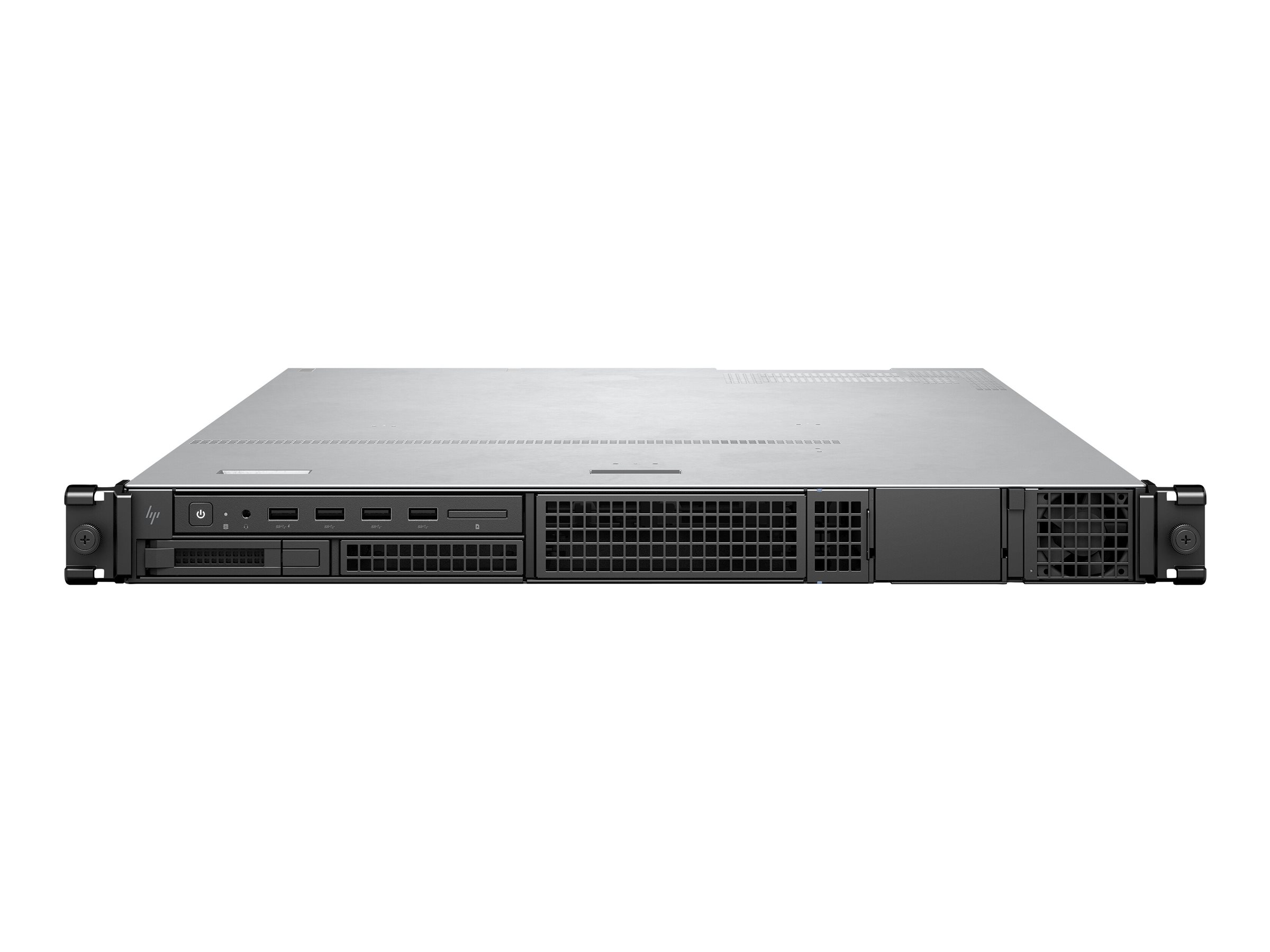

HP Inc. - HP ZCentral 4R
Wolf Pro Security - rack-mountable - 1U - 1 x Xeon W-2223 / 3.6 GHz - vPro - RAM 16 GB - SSD 512 GB - HP Z Turbo Drive, TLC - T1000 - GigE, 10 GigE, 5 GigE, 2.5 GigE - Win 10 Pro for Workstations 64-bit (includes Win 11 Pro License) - monitor: none - keyboard: US - Smart Buy - with HP Wolf Pro Security Edition (1 year)
HP Inc.
64T25UT#ABA
N/A
0196548156887
N/A
New
Product Description
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | HP ZCentral 4R - Wolf Pro Security - rack-mountable - Xeon W-2223 3.6 GHz - vPro - 16 GB - SSD 512 GB - US - with HP Wolf Pro Security Edition (1 year) |
Type | Workstation - rack-mountable |
Platform Technology | Intel vPro Platform |
Height (Rack Units) | 1U |
Localization | Language: English / region: United States |
Processor | 1 x Intel Xeon W-2223 / 3.6 GHz (3.9 GHz) (Quad-Core) |
Processor Socket | LGA2066 Socket |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
Cache Memory | 8.25 MB |
Cache Per Processor | 8.25 MB |
RAM | 16 GB (installed) / 256 GB (max) - DDR4 SDRAM - ECC |
Storage Controller | SATA (SATA 6Gb/s) |
Hard Drive | SSD 512 GB - PCI Express - M.2 2280 - HP Z Turbo Drive, triple-level cell (TLC) |
Optical Storage | No optical drive |
Graphics Controller | PCIe 3.0 x16 - NVIDIA T1000 |
Video Memory | 4 GB GDDR6 SDRAM |
Networking | GigE, 10 GigE, 5 GigE, 2.5 GigE |
Keyboard | US |
Power | (50/60 Hz) |
Power Redundancy | Optional |
OS Provided | Windows 10 Pro for Workstations 64-bit Edition (downgrade from Windows 11 Pro) + Windows 11 Pro License |
Dimensions (WxDxH) | 17.2 in x 24.6 in x 1.7 in |
Weight | 23.59 lbs |
Manufacturer Selling Program | HP Smart Buy |
Environmental Standards | EPEAT Gold |
Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
Bundled with | HP Wolf Pro Security Edition (1 year) |
General | |
Platform Technology | Intel vPro Platform |
Type | Workstation |
Product Form Factor | Rack-mountable - 1U |
Built-in Devices | Speaker |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Localization | Language: English / region: United States |
Bundled with | HP Wolf Pro Security Edition (1 year) |
Expansion / Connectivity | |
Bays | 1 (total) / 1 (free) x external 2x2.5" / 1x3.5" shared ¦ 2 (total) / 2 (free) x external 2.5" |
Slots | 1 (total) / 0 (free) x PCIe 3.0 x16 (x16 mode (x8 mode if neighbour slot is occupied)) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (x8 mode) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (x4 mode) |
Interfaces | 4 x USB 3.0 (4 in front) (one of them is charging) ¦ 1 x headphones/microphone (1 in front) ¦ 4 x USB 3.1 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 4 x Mini DisplayPort 1.4a |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labor - 3 years - on-site |
Miscellaneous | |
Included Accessories | Rack rail kit |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
Manufacturer Selling Program | HP Smart Buy |
RAM | |
Installed Size | 16 GB / 256 GB (max) |
Technology | DDR4 SDRAM - ECC |
Effective Memory Speed | 2933 MHz |
Rated Memory Speed | 2933 MHz |
Form Factor | DIMM 288-pin |
Slots | 4 (total) / 2 (empty) |
Features | Registered |
Configuration Features | 2 x 8 GB |
Networking | |
Ethernet Ports | 1 x 10 Gigabit Ethernet, 1 x Gigabit Ethernet |
Ethernet Controller | Intel I219-LM, Marvel AQtion AQC-107 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
Features | Wake on LAN (WoL), Intel Active Management Technology (AMT) 11, PXE 2.1 support |
Compliant Standards | DASH 1.1 |
Power | |
Device Type | Power supply |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Installed Qty | 1 |
Max Supported Qty | 2 |
Voltage Required | AC 90-269 V (50/60 Hz) |
Power Provided | 675 Watt |
Efficiency | 90% |
Power Factor Correction | Yes (active) |
Environmental Parameters | |
Min Operating Temperature | 41 °F |
Max Operating Temperature | 95 °F |
Humidity Range Operating | 10 - 85% (non-condensing) |
Storage Controller | |
Type | 1 x SATA |
Controller Interface Type | SATA 6Gb/s |
Channel Qty | 4 |
RAID Level | RAID 0, RAID 1, RAID 10 |
Cache Memory | |
Installed Size | 8.25 MB |
Cache Per Processor | 8.25 MB |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Interface Type | PCIe 3.0 x16 |
Graphics Processor | NVIDIA T1000 |
Video Memory | 4 GB GDDR6 SDRAM |
Video Interfaces | DisplayPort |
Max Monitors Supported | 4 |
Audio Output | |
Compliant Standards | High Definition Audio |
Operating System / Software | |
OS Provided | Windows 10 Pro for Workstations 64-bit Edition (available through downgrade rights from Windows 11 Pro) + Windows 11 Pro License - English |
Software | HP Remote Graphics Software |
Hard Drive | |
Type | SSD - M.2 2280 |
Capacity | 1 x 512 GB |
Interface Type | PCI Express |
Features | HP Z Turbo Drive, triple-level cell (TLC) |
Input Device | |
Type | Mouse, keyboard |
Dimensions & Weight | |
Dimensions & Weight Details | 19.2 in - 25.4 in - 1.7 in - with front bezel |
Width | 17.2 in |
Depth | 24.6 in |
Height | 1.7 in |
Weight | 23.59 lbs |
Dimensions & Weight (Shipping) | |
Shipping Width | 23.2 in |
Shipping Depth | 32.5 in |
Shipping Height | 7.3 in |
Keyboard | |
Interface | USB |
Localization & Layout | US |
Mouse | |
Interface | USB |
Environmental Standards | |
EPEAT Compliant | EPEAT Gold |
Processor / Chipset | |
CPU | Intel Xeon W-2223 |
Clock Speed | 3.6 GHz |
Max Turbo Speed | 3.9 GHz |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
CPU Upgradability | Upgradable |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
CPU Socket | LGA2066 Socket |
Chipset Type | Intel C422 |
