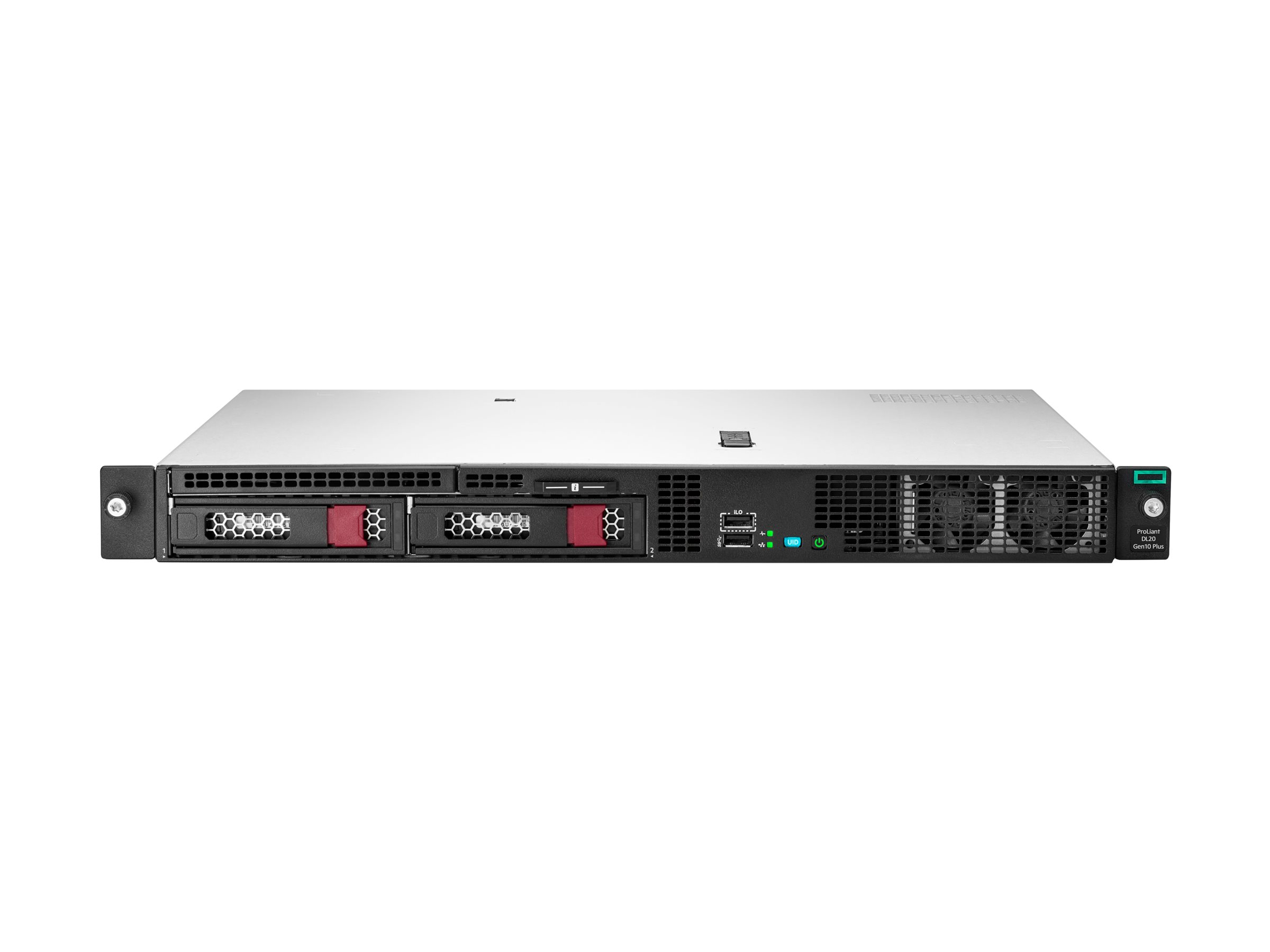

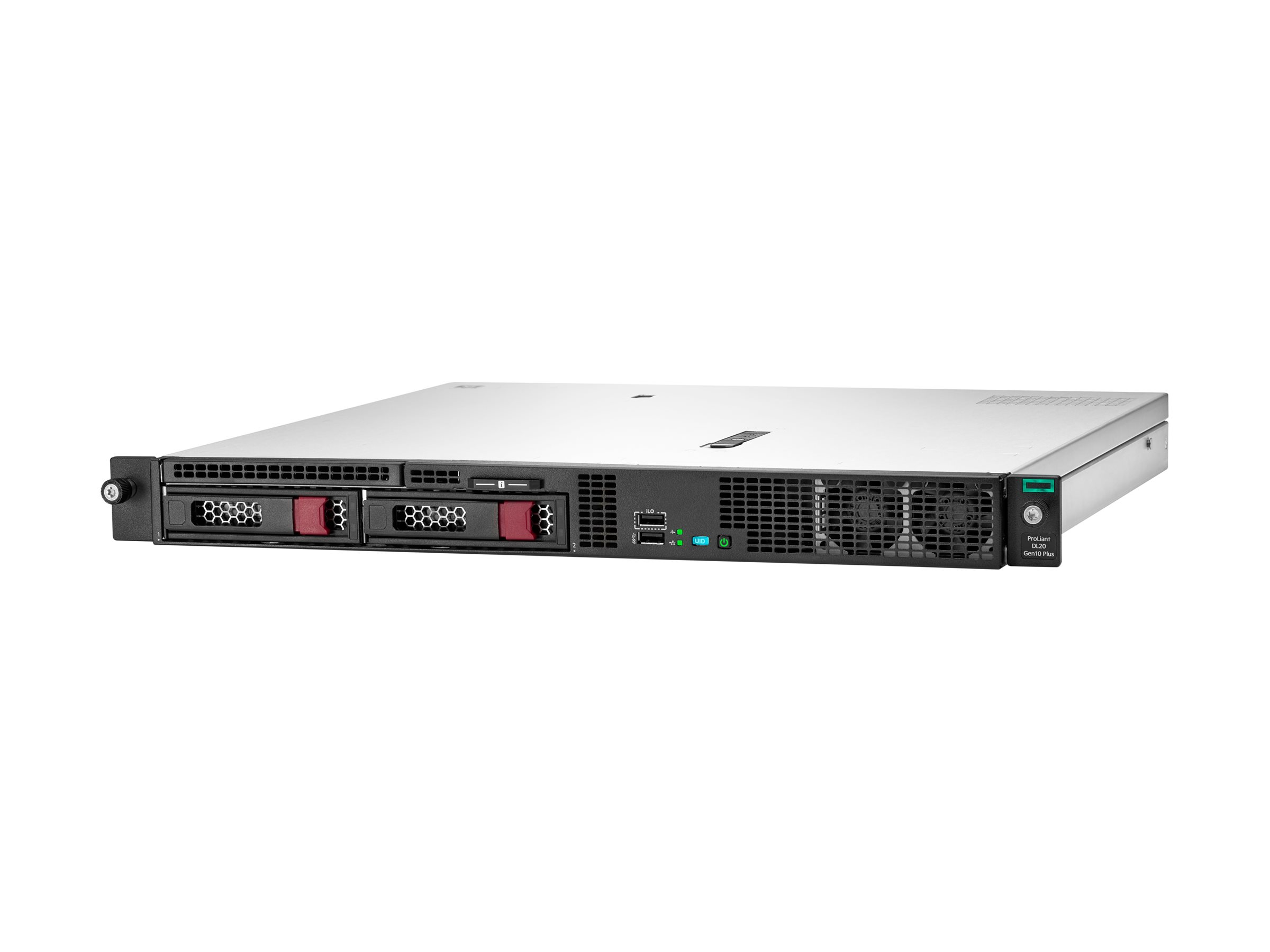

Hewlett Packard Enterprise - HPE ProLiant DL20 Gen10 Plus Base

Server - rack-mountable - 1U - 1-way - 1 x Xeon E-2314 / 2.8 GHz - RAM 16 GB - SATA - hot-swap 3.5" bay(s) - no HDD - Matrox G200 - GigE - monitor: none

Hewlett Packard Enterprise
P44113-B21
N/A
0190017519500
N/A
New

Price: $1,440.76

Total Available: 7

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description HPE ProLiant DL20 Gen10 Plus Base - rack-mountable - Xeon E-2314 2.8 GHz - 16 GB - no HDD
Type Server - rack-mountable
Height (Rack Units) 1U
Localization Region: Worldwide (excluding EMEA, China, Japan)
Server Scalability 1-way
Processor 1 x Intel Xeon E-2314 / 2.8 GHz (4.5 GHz) (Quad-Core)
Processor Main Features Intel Turbo Boost Technology 2
Cache Memory 8 MB L3 cache
Cache Per Processor 8 MB
RAM 16 GB (installed) / 128 GB (max) - DDR4 SDRAM - ECC
Storage Controller RAID (SATA 6Gb/s)
Server Storage Bays Hot-swap 3.5"
Hard Drive No HDD
Optical Storage No optical drive
Graphics Controller Matrox G200
Networking GigE
Power (50/60 Hz)
Dimensions (WxDxH) 17.1 in x 15 in x 1.7 in
Weight 22.05 lbs
Manufacturer Warranty Limited warranty - parts and labor - 3 years - response time: next business day
General
Type Server
Product Form Factor Rack-mountable - 1U
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability 1-way
Front Accessible Bays Qty 1
Hot-Swap Bays Qty 2
Localization Region: Worldwide (excluding EMEA, China, Japan)
Expansion / Connectivity
Bays 2 (total) / 2 (free) x hot-swap 3.5" LFF ¦ 1 (total) / 1 (free) x external
Slots 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 (low-profile)
Interfaces 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) ¦ 1 x USB (service port)
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years - response time: next business day
Miscellaneous
Included Accessories HPE Short Friction Rail kit, 3 non-hot plug non-redundant fans, LFF drive blanking panel
Compliant Standards EMC, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, UEFI, ACPI 6.3
RAM
Installed Size 16 GB / 128 GB (max)
Technology DDR4 SDRAM - ECC
Effective Memory Speed 3200 MHz
Rated Memory Speed 3200 MHz
Form Factor DIMM 288-pin
Slots 4 (total) / 3 (empty)
Features Unbuffered
Configuration Features 1 x 16 GB
Networking
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller Broadcom BCM5720
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller Integrated Lights-Out 5
Features Wake on LAN (WoL), PXE support
Power
Device Type Power supply
Installed Qty 1
Voltage Required AC 100-120/200-240 V (50/60 Hz)
Power Provided 290 Watt
80 PLUS Certification 80 PLUS Platinum
Efficiency 92%
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90% RH (non-condensing)
Sound Emission 26 dBA
Storage Controller
Type 1 x RAID
Controller Interface Type SATA 6Gb/s
Channel Qty 6
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Cache Memory
Installed Size L3 cache - 8 MB
Cache Per Processor 8 MB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Matrox G200
Video Interfaces VGA
Operating System / Software
Software HPE Intelligent Provisioning, HPE iLO Management
Hard Drive
Type No HDD
Dimensions & Weight
Width 17.1 in
Depth 15 in
Height 1.7 in
Weight 22.05 lbs
Processor / Chipset
CPU Intel Xeon E-2314
Clock Speed 2.8 GHz
Max Turbo Speed 4.5 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Upgradable
Processor Main Features Intel Turbo Boost Technology 2
Chipset Type Intel C256
